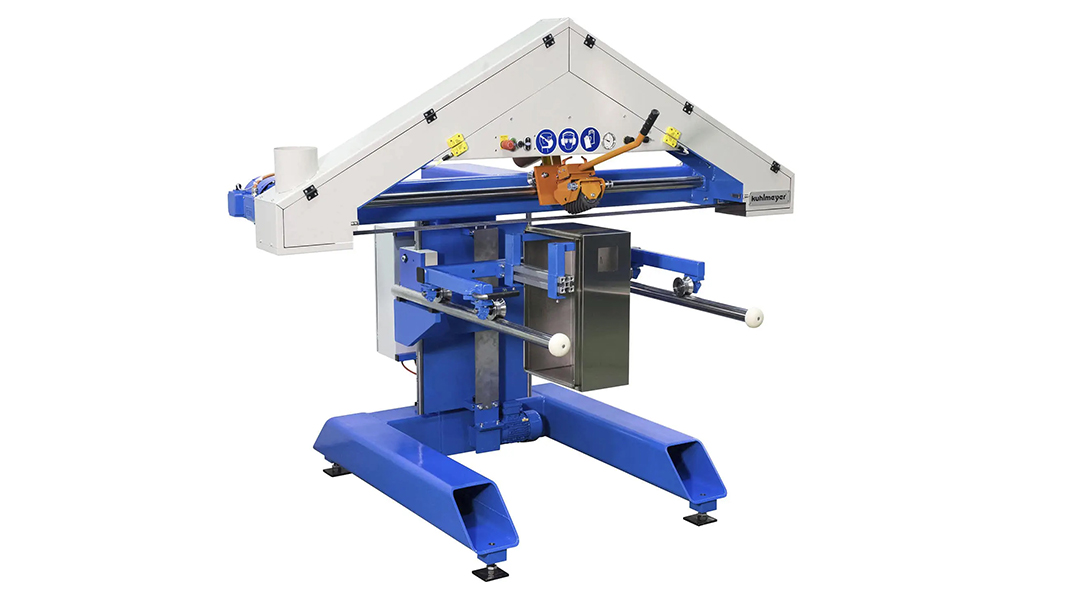

The EBS-Compact is designed for grinding welded edges, corners and surfaces of smaller components. Thanks to a quick replacement of the grinding belt, the machine can rapidly change between the roughing and finishing processes.
The compact design allows the integration of the machine into existing production areas. The main advantage is the easy and ergonomic grinding with the maximum quality by the precise Kuhlmeyer technology and experience.

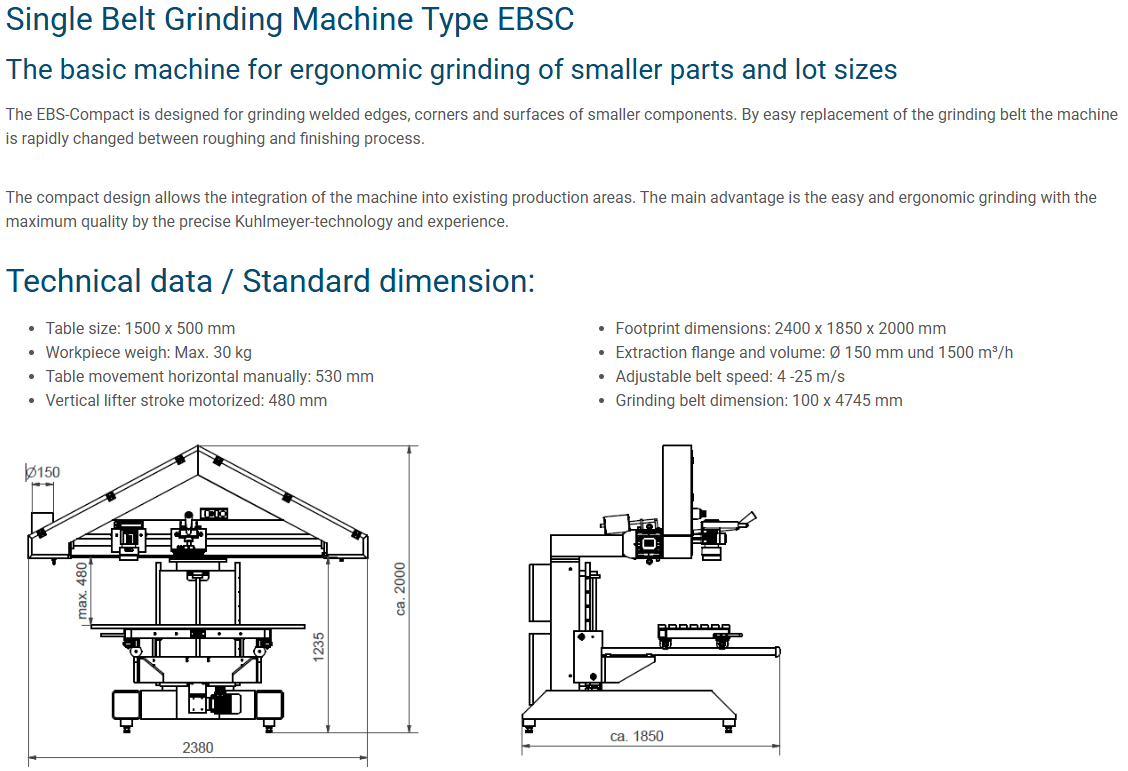

EBSC - Single Belt Grinding
Sharp Looking Parts – not Sharp Edges
Are burr-free, edge-rounded parts critical for end-user safe handling of your products? Are smooth edges and cutouts needed to prevent wire abrasion or other wear issues?
Kuhlmeyer is a specialist experienced company when we talk about long-belt sanding or surface grinding machines. Back in 2015, they introduced their most compact machine to easily integrate it with existing workflows, where space is limited and have small parts to be processed. They made the machine considering ergonomics for the operator while processing parts and changing the type of process to be carried out (switching belts or using a different module).

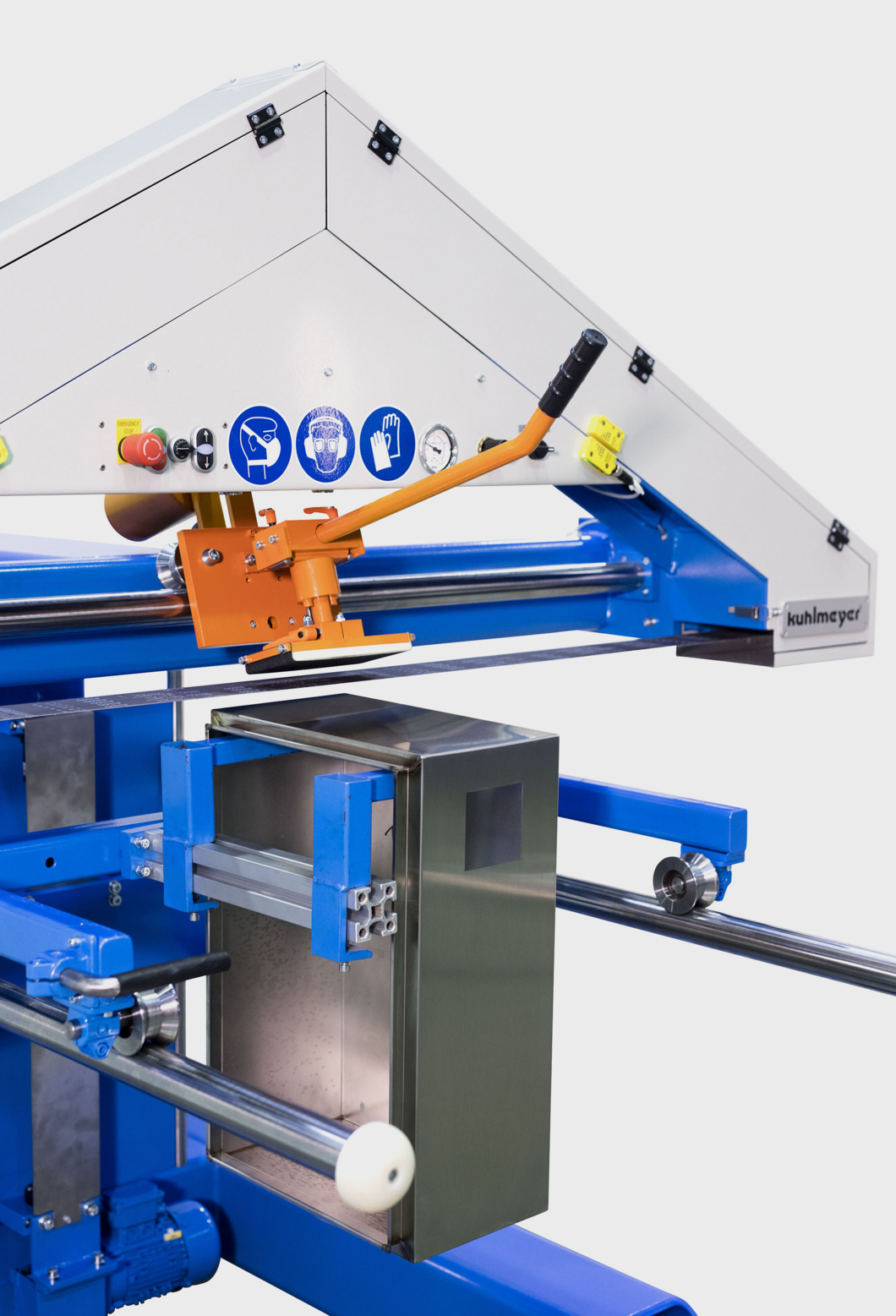

In addition to the proven grinding unit with contact roller and flat pressure piece keeps Kuhlmeyer a deburring module ready, which can be simply placed on the machine guides.
Dynamic

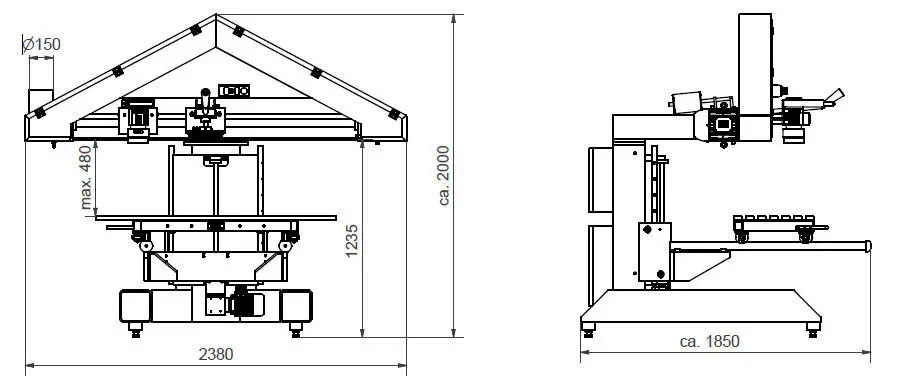

With a footprint of 2400 x 1850 x 2000 mm, the EBSC can easily be integrated into existing production structures or be used as a mobile machine with a stable base. Its forklift pockets make it ideal to adapt into dynamic production processes.
The Finishing Touch of Quality
Many details of the Kuhlmeyer larger grinders are used in this compact machine, so that the customers can benefit any time from the proven and high-quality construction, as well as from the high-precision manufacturing in Kuhlmeyer machines.

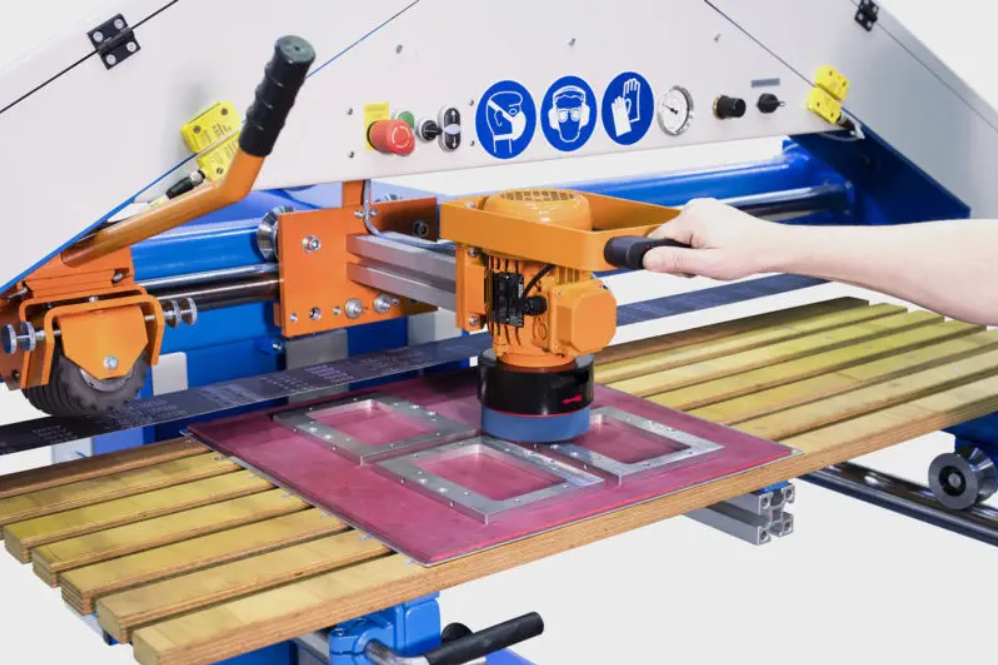

Deburring Unit:
• Additional carriage with a deburring unit
• Unit with a flange diameter of 125 mm and a quick connector for different brushing heads.
• Drive motor with 0,37 kW and 1500 rpm
• Rubber layer on the table to prevent shifting of work piece
Features:
• Quick changing of abrasive belts for roughing and finishing
• Triangular configuration for excellent access to and visibility of the working area
• Pneumatic belt tensioning
• Adjustable speed of the grinding belt.
• Swivel grinding belt up to 90° with a perfect belt centering
• Self-centring of the grinding belt
• Easy opening of the belt cover
• Smooth-moving prism rollers for the table, contact pressure tools and table height adjustment
• Enhanced safety with safety switches and the E-Stop button
• Free swivelling of the pressure tool used
• Pressure roller adaptable with a quick coupling
• Table height adjustment with soft start ramp

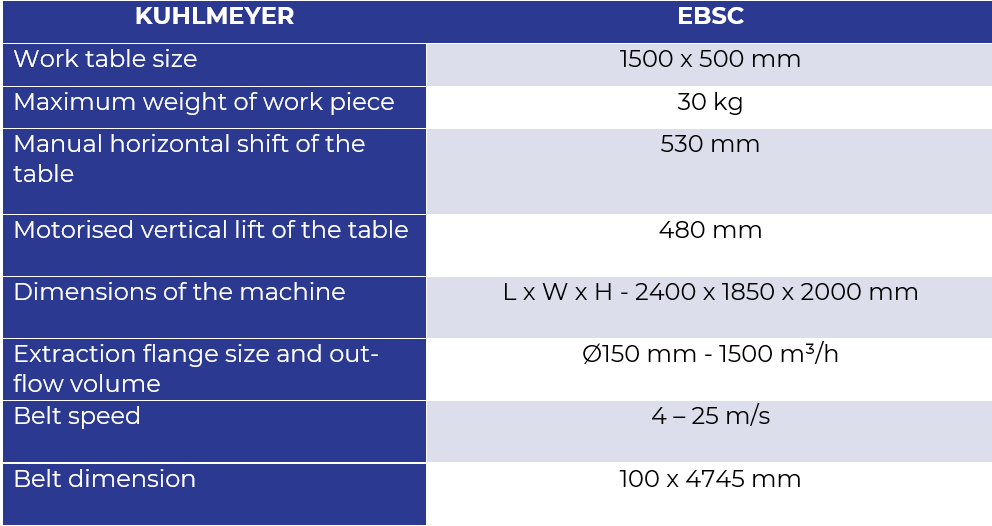

Technical data
FRIBESCO’s reasons:
Why Choose the EBSC?
✅ Ergonomic operation for maximum productivity
✅ Modular tooling design
✅ Simplicity, durability, and exceptional build quality
✅ Suitable for all standard roofing materials**********************
✅ Compact design, easy to integrate into production workflows
The Kuhlmeyer EBSC gives professionals the edge: faster throughout, consistent accuracy, and long-term reliability.
