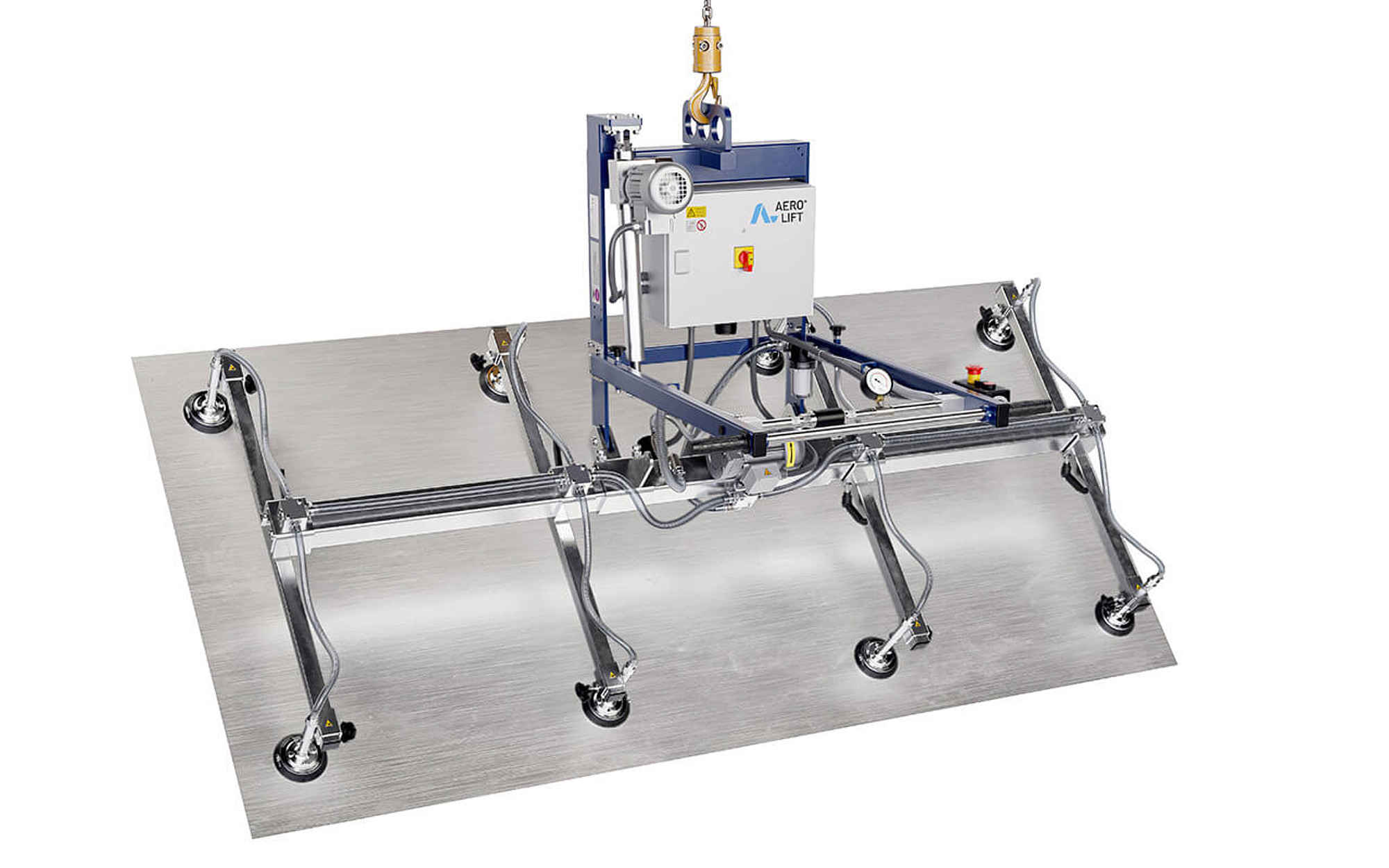

AeroLift Aero-90°

Details

The AERO-90° is the specialist solution for tasks requiring more than just horizontal transport.

Equipped with a high-performance electric linear drive, it allows for the stepless, smooth swivelling of transport goods from 0° to 90°.

Whether you are removing sheets from vertical storage or positioning panels for assembly, the AERO-90° provides the control you need.

Automating the swivelling process, it eliminates the need for manual tilting, significantly improving workplace ergonomics and reducing the risk of injury.

Applications for the Aero-90°

The AERO-90° is the ideal partner for loading vertical saws, CNC machines, or any application where material must be transitioned between horizontal and vertical orientations without damage.

Material Handling: Primarily used for moving non-porous materials like metal sheets and plastics.
Industrial Processes: Ideal for loading and unloading machinery or moving large-format goods within production environments.
Customisable Workflow: Its modular design allows it to be adapted for specific load sizes, with options to extend the main crossbeam for extra-large materials
Designed for indoor use.

Features of the Aero-90°

- Electric 90° Swivelling: Stepless, smooth movement via a powerful linear drive.
- Up to 1,000 kg load capacity: Handles heavy industrial materials with ease.
- Modular Versatility: The basic system can be individually expanded with additional crossbeams or specialised suction plates.
- Integrated Motor Protection: Prevents winding damage to the vacuum generator, ensuring zero downtime

Core Technical Specifications

Load capacity: from 150kg up to 1000kg.
Suction plates: 4 to 8 plates, depending on the model.

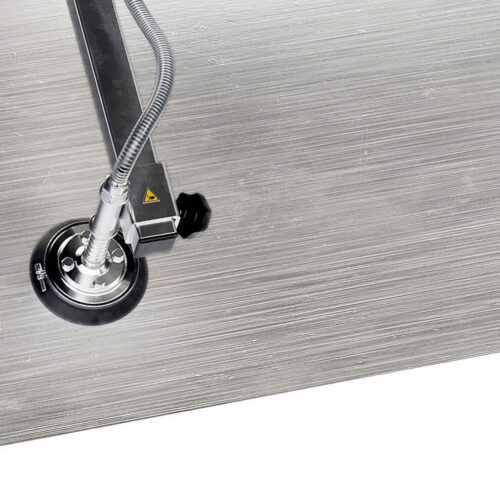

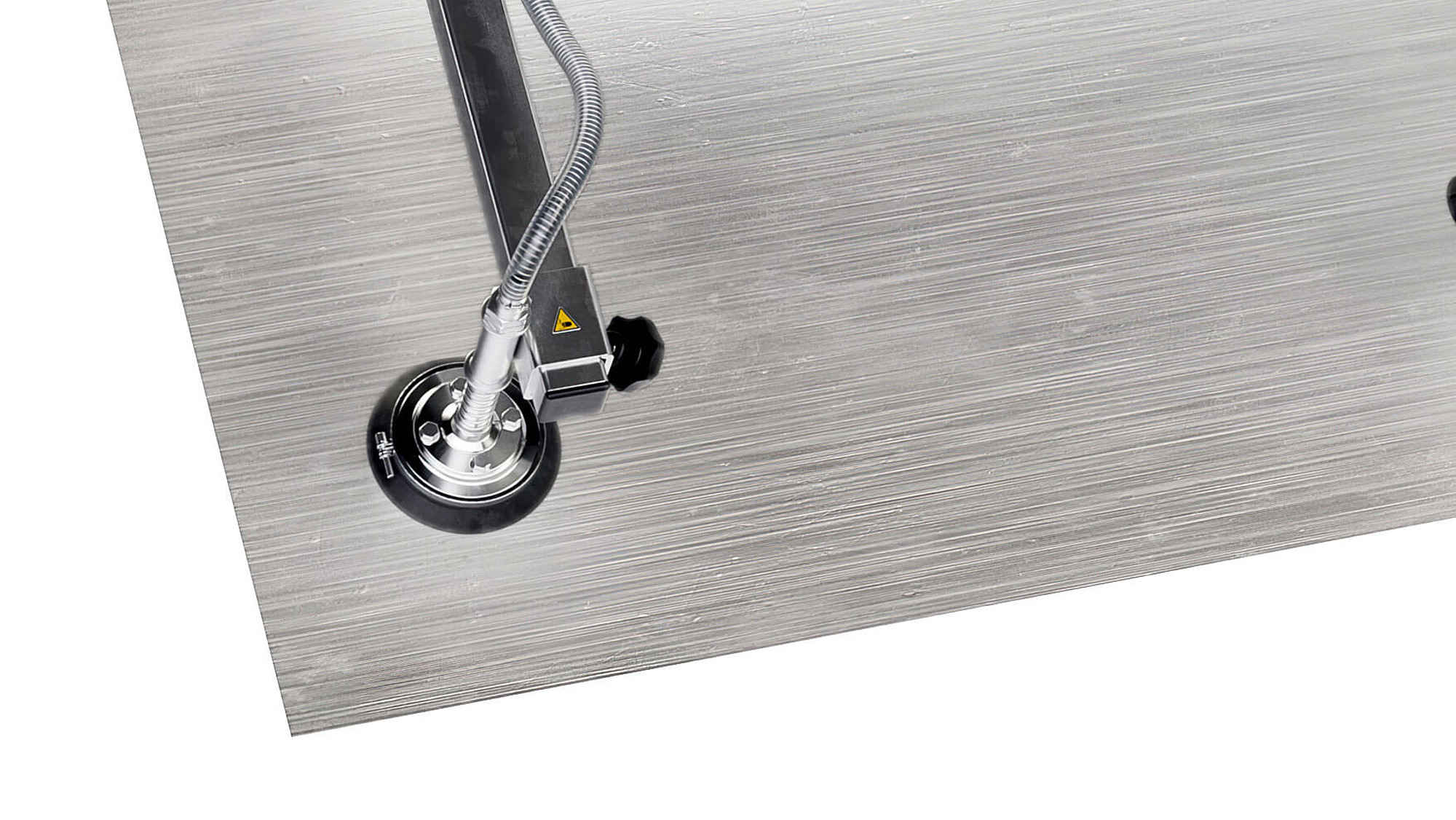

Plate diameters: 120mm to 350mm.
Main beam length: 2m or 3m (optional extension from 2 to 5 cross beams).
Construction: Robust welded steel frame with hot-dip galvanised crossbars.
Variants: Different suction plate diameters, cross beam lengths, handle lengths, suspension eyes, etc.

Optional Accessories

Ecomatic & Safety (-ES): Adds red/green LED readiness lights and a pump control module that can reduce power consumption by up to 70%.

Hydro (-HY): Includes a water separator to protect the vacuum pump from moisture and dirt.Chain Hoist Connection (-CH): Replaces the standard CEE connector with a spiral cable and Harting connector to power the lifter directly from the hoist, keeping the workspace clear of cables.

3.0-metre Main Cross Beam: An extension used to compensate for overhang when lifting extra-large sheets

Holder bag: A holder bag for the crane’s control bulb to be mounted on the lifting device.

Cable drum: 5m and 10m Cable drum for indoor use.

Technical data

FRIBESCO’s reasons:

Why Choose the AERO-90°?

✅ Stepless Power: Features an electric linear drive for smooth, infinite swivelling from 0° to 90°.
✅ Guaranteed Durability: A robust welded steel construction ensures maximum process reliability in the toughest industrial environments
✅ Intelligent Safety: Features a generously dimensioned reservoir and an intelligent warning device for maximum operator protection
✅ Zero-Marking Handling: Uses outstanding-quality full elastomer seals to ensure every sheet is moved gently and without damage
✅ High Efficiency & Low Maintenance: Includes an intelligent suction plate concept that allows seals to be replaced in seconds without tools

The AeroLift Aero 90° gives professionals a versatile solution for industrial lifting and handling goods.

???? Contact us today to discuss your requirements and arrange a demo.

AEROLIFT CATALOGUE

The AERO-90° is the ultimate swivelling device: Equipped with an electric linear drive, it provides a stepless, smooth swivel from 0° to 90°, allowing for seamless transitions from horizontal to vertical positions.
