Details

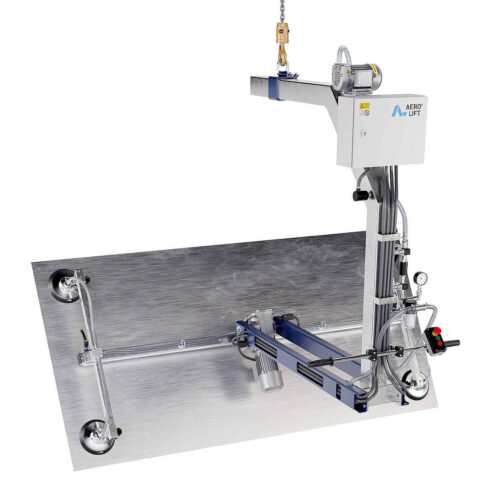

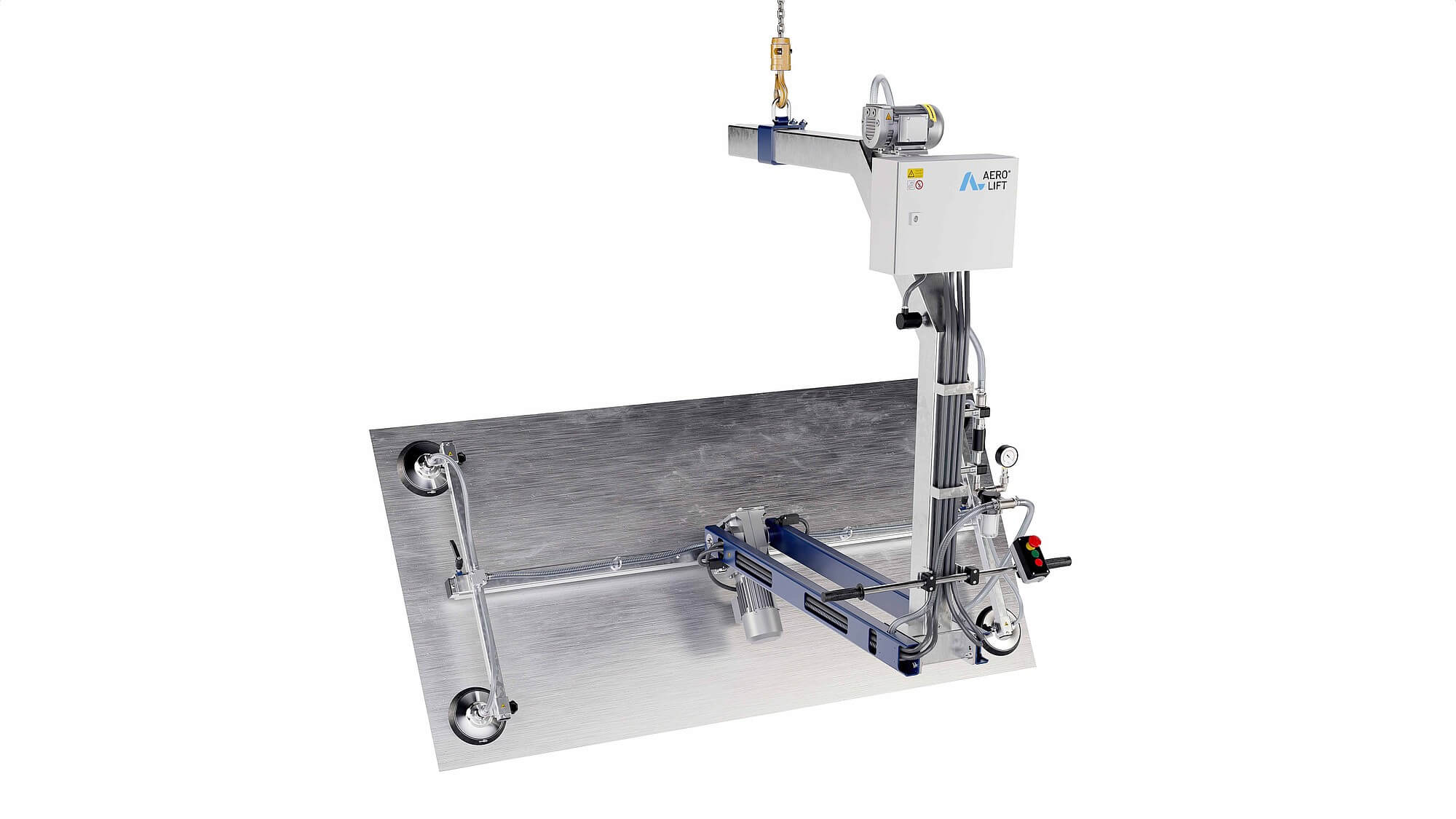

The AERO-180 is a specialised vacuum lifting solution designed for industries where two-sided processing and quality inspection of flat materials are critical to the production workflow.
Equipped with a high-performance electric linear drive, it enables stepless, smooth swivelling of transport goods from 0° to 180°.
Whether you are removing sheets from vertical storage or positioning panels for assembly, the AERO-180° provides the control you need. Automating the swivelling process eliminates the need for manual tilting, significantly improving workplace ergonomics and reducing the risk of injury.
The AERO-180° is the ideal partner for loading vertical saws, CNC machines, or any application where material must be transitioned and flipped upside down without damage.
- Metalworking & Steel Construction: Ideal for flipping heavy sheet metal or aluminium plates to deburr, grind, or weld the reverse side.
- Industrial Processes: Ideal for loading and unloading machinery or moving large-format goods within production environments.
- Furniture & Wood Processing: Useful for high-end panels (non-porous) that need to be turned for double-sided lamination or finishing.
- Customisable Workflow: Its modular design allows it to be adapted for specific load sizes, with options to extend the main crossbeam for extra-large materials
- Designed for indoor use.
Features of the Aero-180°
-

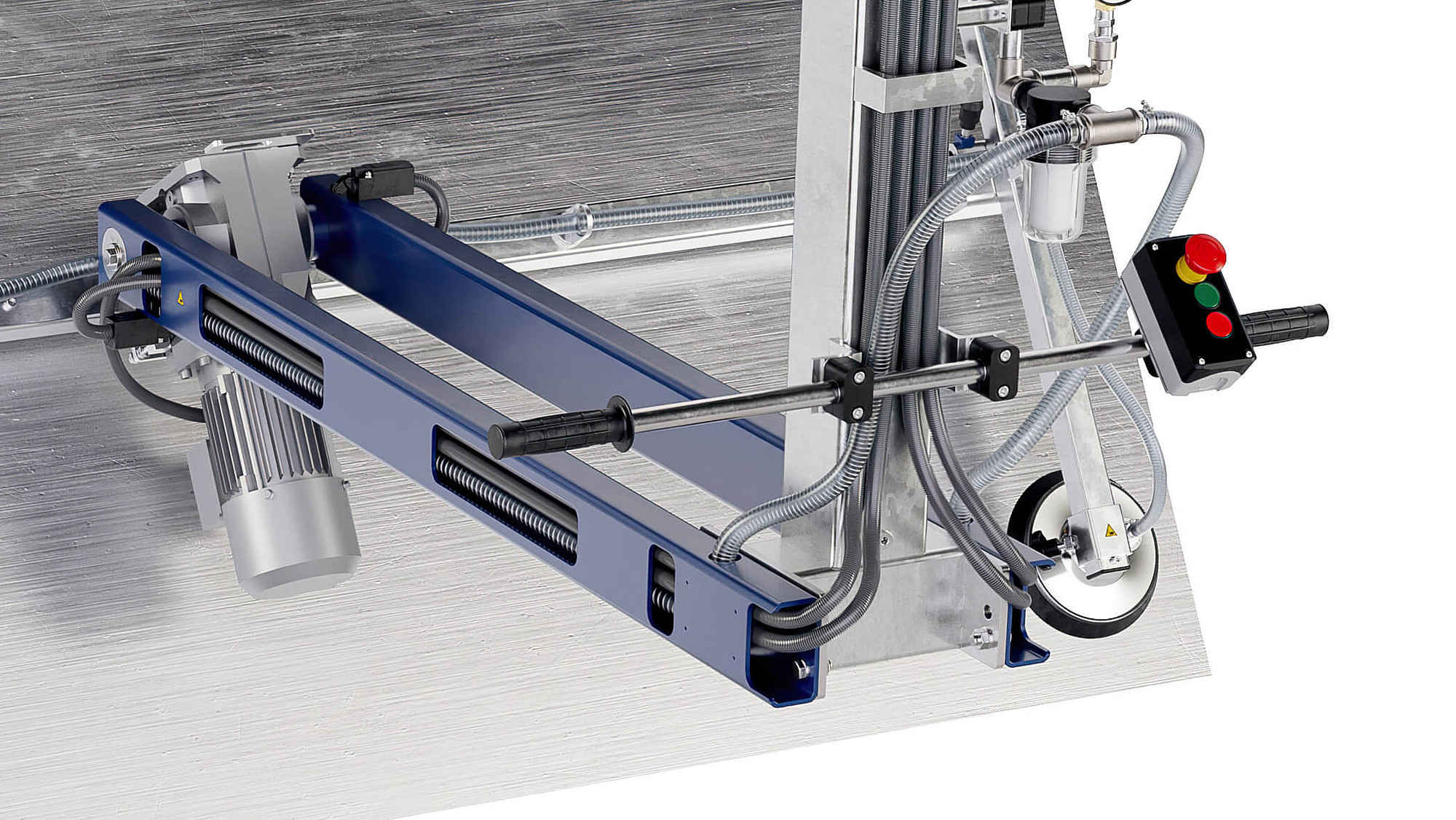

- Electric 180° Swivelling: Stepless, smooth transition via a powerful linear drive.
- Guaranteed safety: Features a generously dimensioned vacuum reservoir paired with an intelligent warning device for operator protection.
- Up to 250 kg load capacity: Handles industrial materials with ease.
- Modular Versatility: The basic system can be individually expanded with additional crossbeams or specialised suction plates.
- Integrated Motor Protection: Prevents winding damage to the vacuum generator, ensuring zero downtime

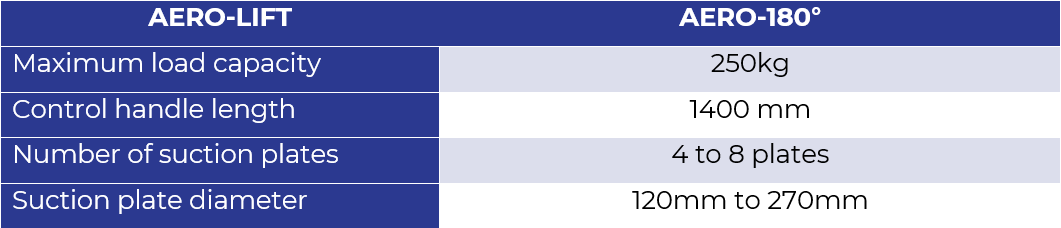

Core Technical Specifications
- Load capacity: up to 250kg.
- Suction plates: 4 to 8 plates, depending on the model.
- Plate diameters: 120mm to 270mm.
- Main beam length: 2m or 3m (optional extension from 2 to 4 cross beams).
- Construction: Robust welded steel frame with hot-dip galvanised crossbars.
- Variants: Different suction plate diameters, cross beam lengths, handle lengths, suspension eyes, etc.
Optional Accessories
- Ecomatic & Safety (-ES): Adds red/green LED readiness lights and a pump control module that can reduce power consumption by up to 70%.
- Hydro (-HY): Includes a water separator to protect the vacuum pump from moisture and dirt.

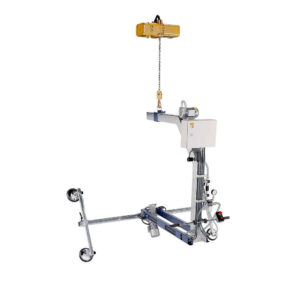

- Chain Hoist Connection (-CH): Replaces the standard CEE connector with a spiral cable and Harting connector to power the lifter directly from the hoist, keeping the workspace clear of cables.
- 3.0-metre Main Cross Beam: An extension used to compensate for overhang when lifting extra-large sheets
- Holder bag: A holder bag for the crane’s control bulb to be mounted on the lifting device.
- Cable drum: 5m and 10m Cable drum for indoor use.

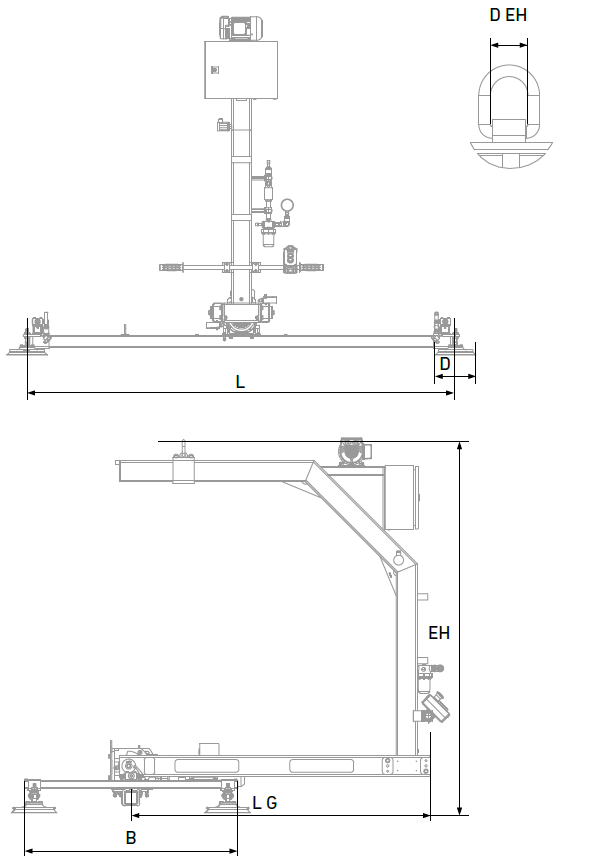

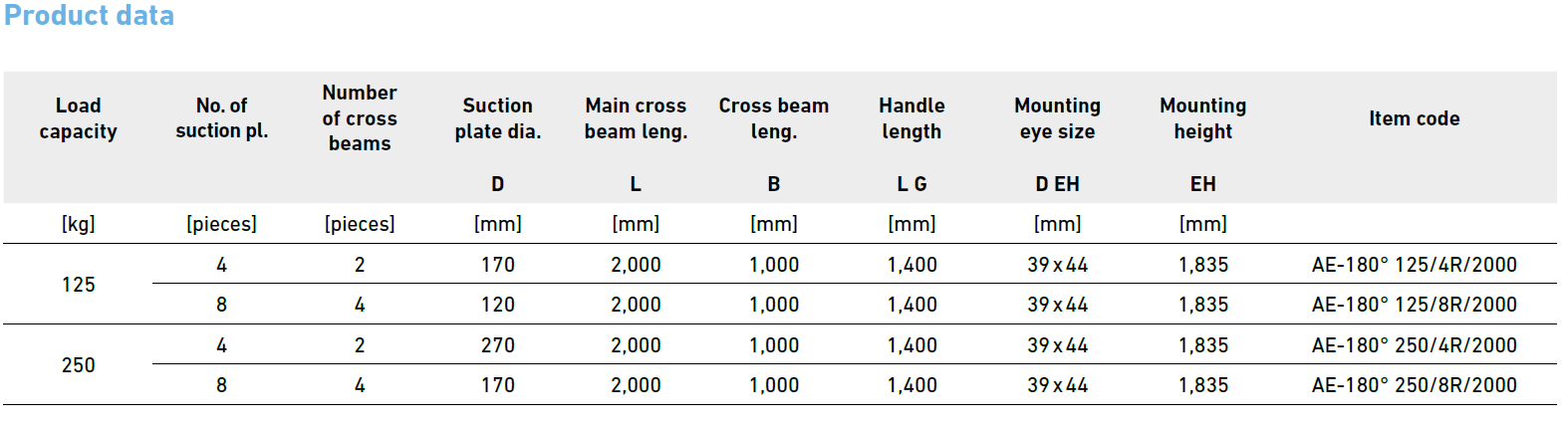

Technical data
-
FRIBESCO’s reasons:
Why Choose the AERO-180°?
✅Work faster and smarter by turning heavy plates at the push of a button.
✅ Guaranteed Durability: A robust welded steel construction ensures maximum process reliability in the toughest industrial environments.
✅ Intelligent Safety: Features a generously dimensioned reservoir and an intelligent warning device for maximum operator protection.

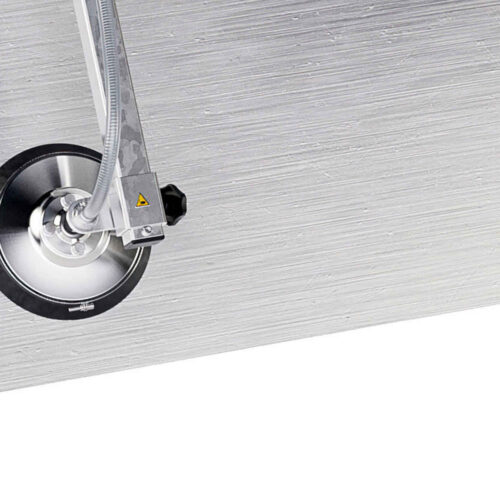

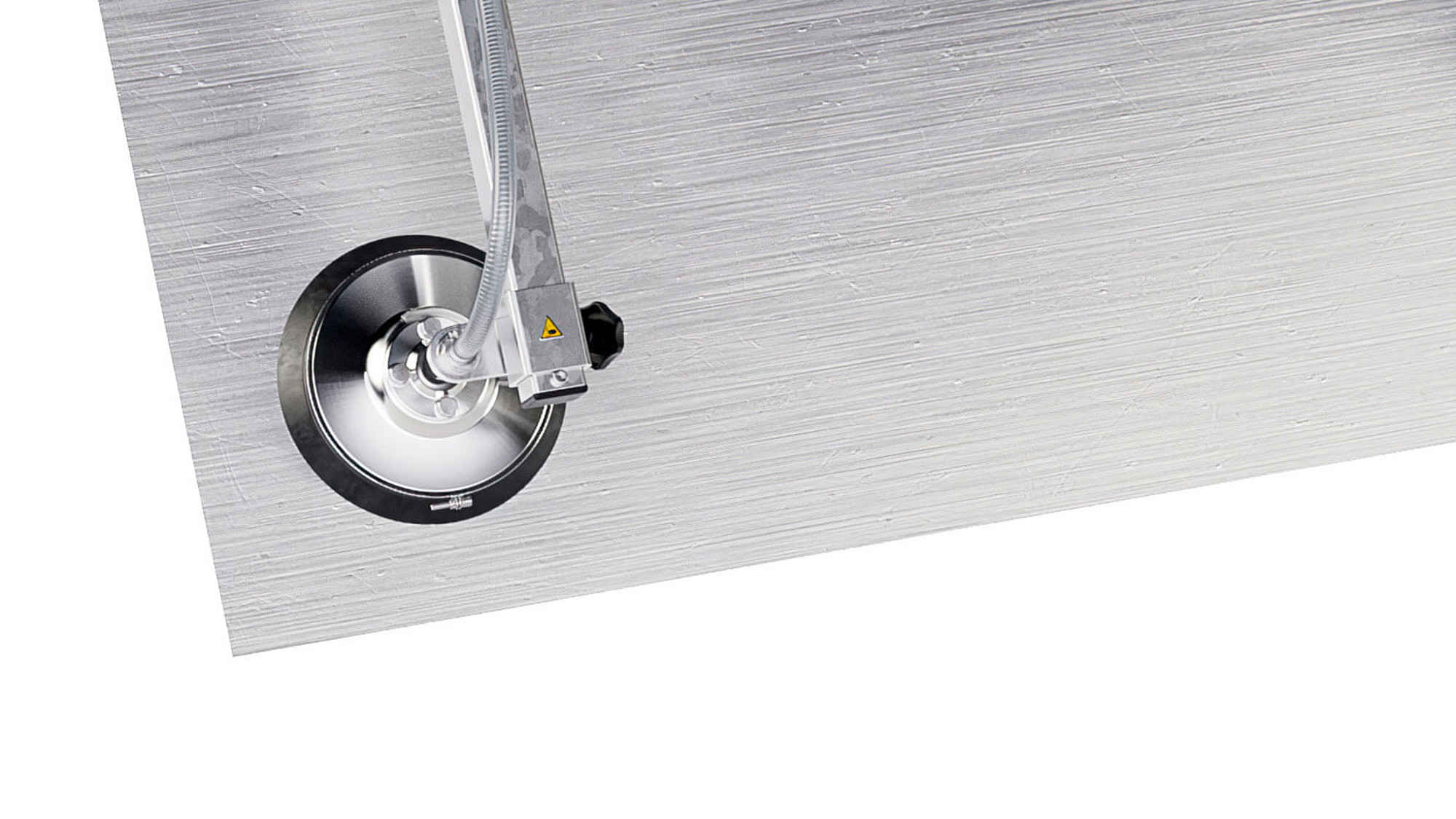

✅ Zero-Marking Handling: Uses outstanding-quality full elastomer seals to ensure every sheet is moved gently and without damage.
✅ High Efficiency & Low Maintenance: Includes an intelligent suction plate concept that allows seals to be replaced in seconds without tools.The AeroLift Aero 180° gives professionals a versatile solution for industrial lifting and handling goods.
???? Contact us today to discuss your requirements and arrange a demo.
The AERO-180 represents the pinnacle of ergonomic material handling, specifically engineered to overcome the physical limitations of manual heavy lifting. While standard lifters are limited to horizontal transport, the AERO-180 features a high-torque electric swivel drive that allows for the stepless, smooth turning of loads up to 250 kg
