Details

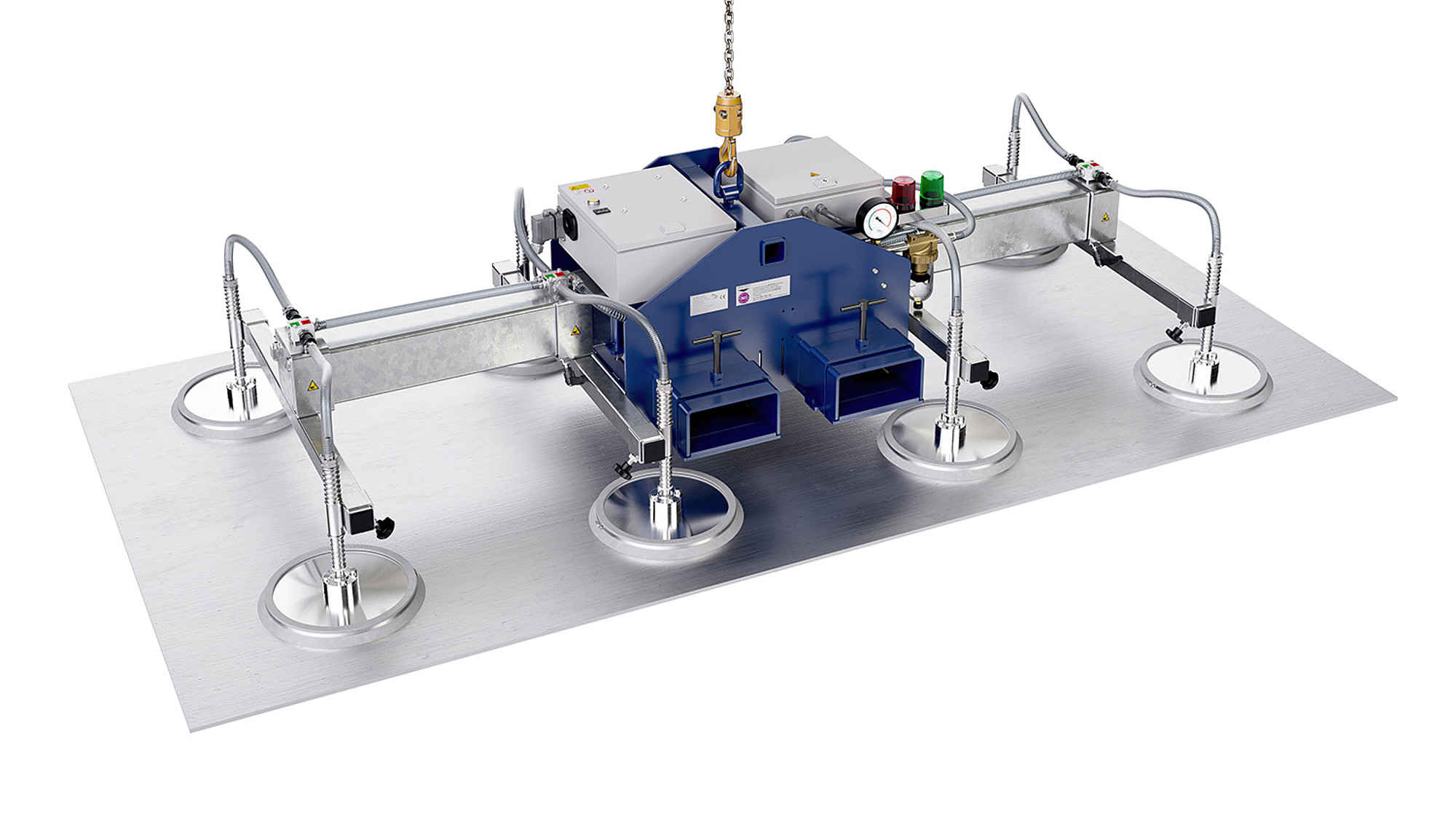

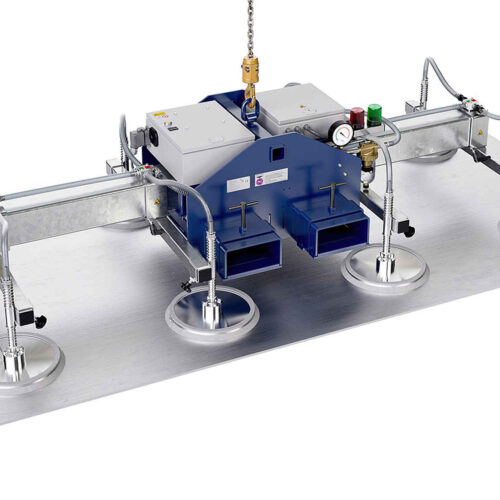

The AERO-SELECT is a versatile “power pack” from the AERO-LIFT range that turns any standard forklift into a high-performance vacuum lifter.
It is universally adaptable and fully autonomous, featuring adjustable forklift pockets compatible with most major manufacturers. This self-sufficient solution is ideal for internal logistics, offering a lifting capacity of up to 2000kg.
The device is also highly configurable, allowing you to adjust the number of suction plates and crossbeams based on your specific load requirements.
Applications for the Aero-Select
The flexible vacuum lifter is used in conjunction with any forklift or lifting equipment and is ideal for applications such as:
- Material Handling: Primarily used for moving non-porous materials like metal sheets and plastics.
- Industrial Processes: Ideal for loading and unloading machinery or moving large-format goods within production environments.
- Customisable Workflow: Its modular design allows it to be adapted for specific load sizes, with options to extend the main crossbeam for extra-large materials
- Designed for indoor use.
Features of the Aero-Select
-

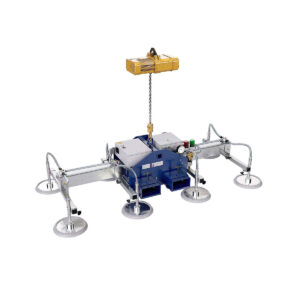

- Forklift & Crane Compatibility: Dual-purpose design for maximum flexibility.
- Up to 2,000 kg load capacity: Handles heavy industrial materials with ease.
- Mains-independent Power: Battery-powered version with long life and short charging cycles.
- Visual Readiness: Large all-around LED lights provide a real-time display of the vacuum level.
- Modular Build: Individually adjustable suction plates and crossbeams to fit various formats
- Intelligent Battery Management: The integrated pump control module regulates the vacuum level automatically, saving power and extending operational time.
- Advanced Protection: Features an integrated water separator to protect the pump from moisture and dirt during transport.
Core Technical Specifications
- Load capacity: from 150kg up to 2000kg.
- Suction plates: 4 to 8 plates, depending on the model.
- Plate diameters: 170mm to 350mm.
- Main beam length: 2m or 3m (optional extension from 2 to 5 cross beams).
- Construction: Robust welded steel frame with hot-dip galvanised crossbars.
- Variants: Different suction plate diameters, cross beam lengths, handle lengths, suspension eyes, etc.
Optional Accessories
- 3.0-metre Main Cross Beam: An extension used to compensate for overhang when lifting an extra-large sheet.

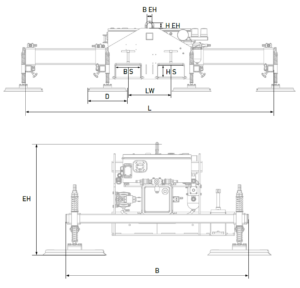

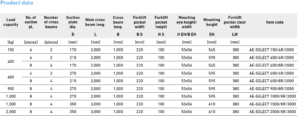

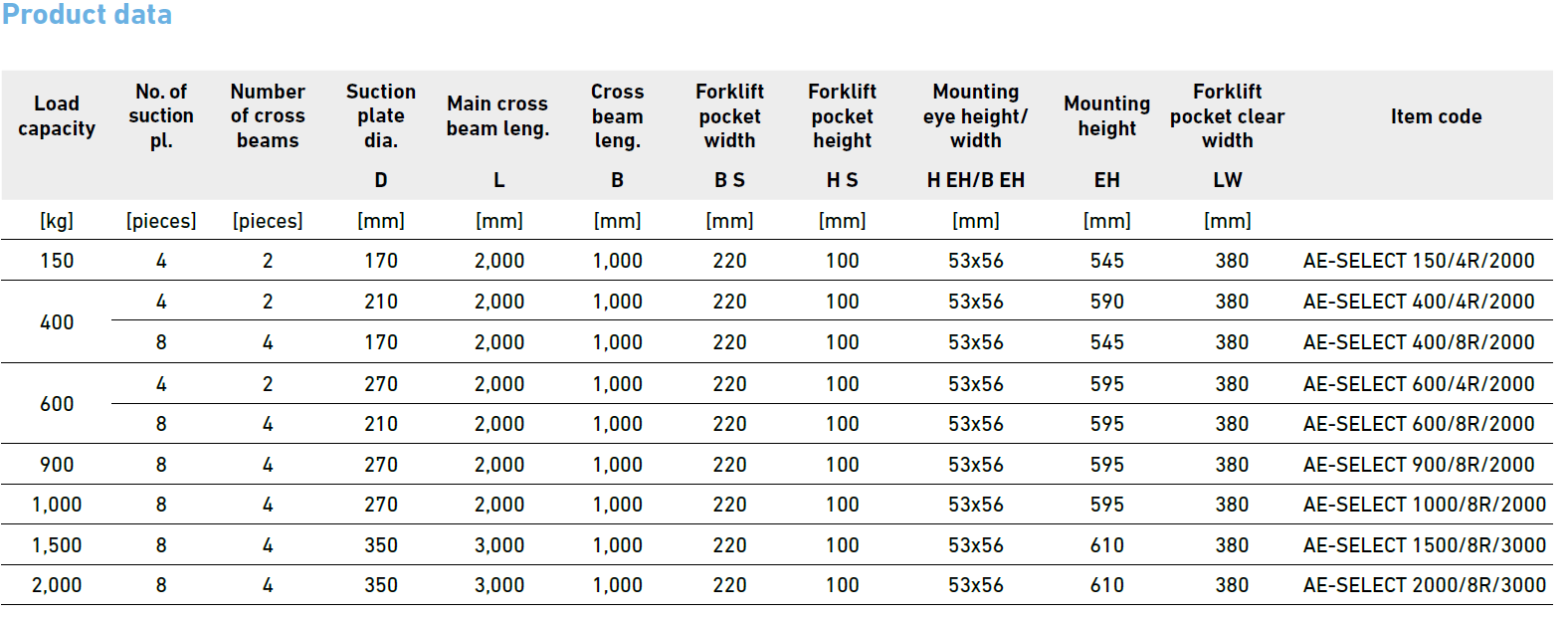

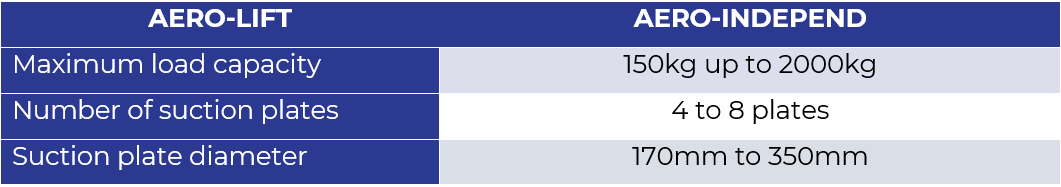

Technical data
-
FRIBESCO’s reasons:
Why Choose the AERO-SELECT?
✅ Dual-Mode Versatility: A true “power pack” that offers maximum versatility, as it can be used on both crane hooks and forklift pockets
✅ Autonomous Logistics: Features a network-independent, battery-powered version with long battery life.
✅ Operator-Centric Design: Enables convenient operation from the driver’s cab via a remote control panel.
✅ Industrial-Grade Safety: Equipped with large all-round lights for real-time vacuum display and a generously dimensioned reservoir with an intelligent warning device.

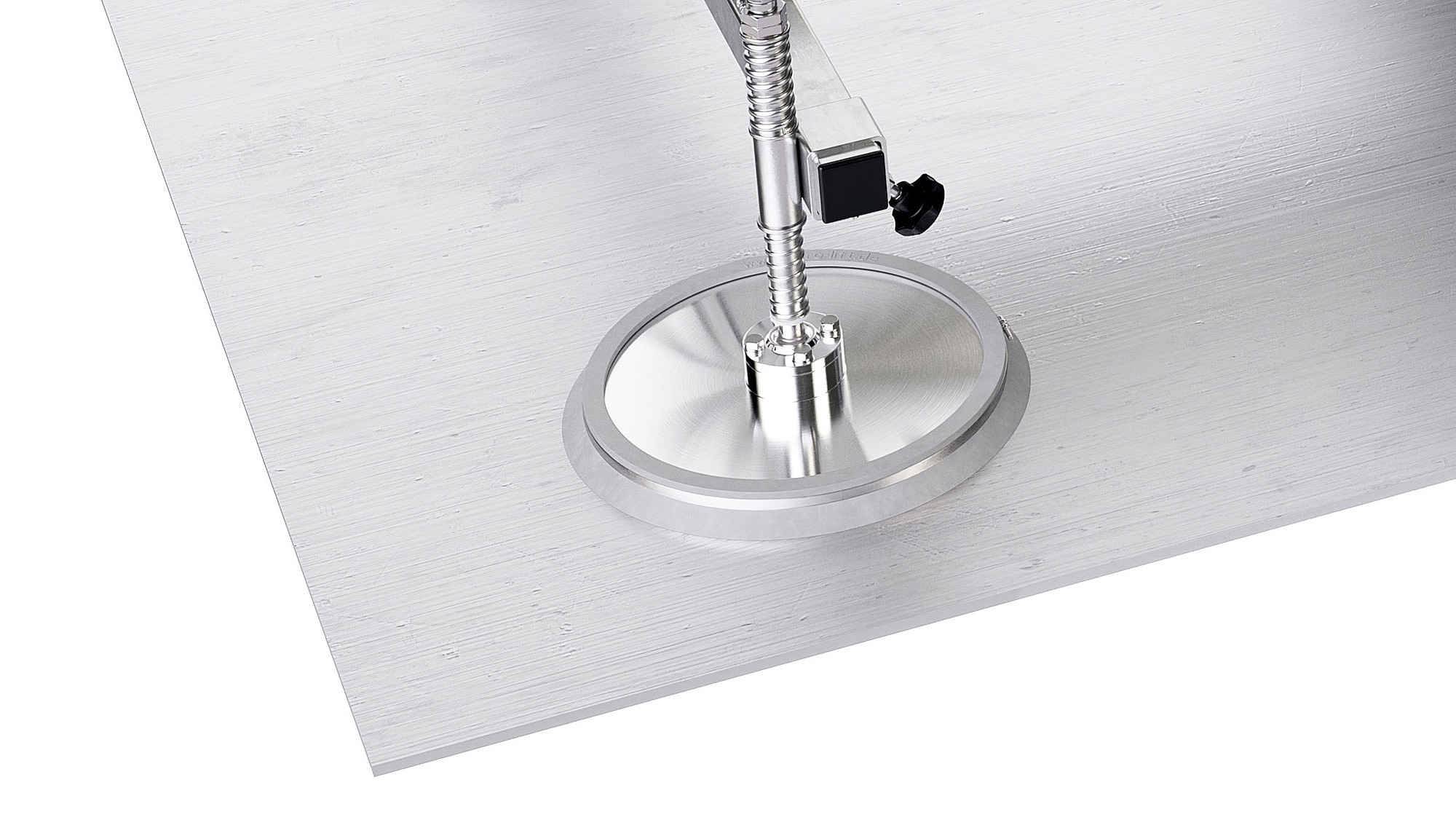

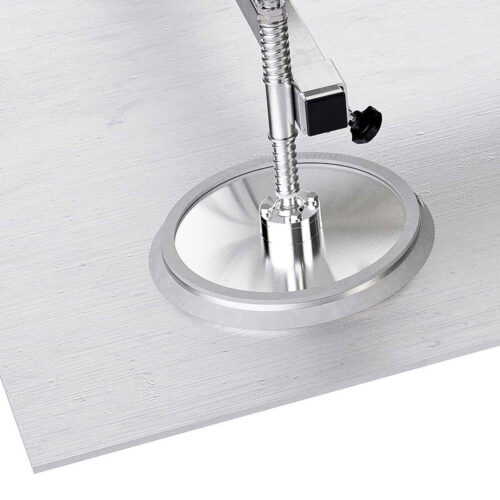

✅ High Efficiency & Low Maintenance: Includes an integrated water separator for moisture protection and an intelligent suction plate concept that allows seals to be replaced in seconds without toolsThe AeroLift Aero Select gives professionals a versatile solution for industrial lifting and handling goods.
???? Contact us today to discuss your requirements and arrange a demo.

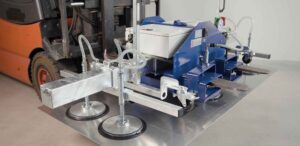

The AERO-SELECT is the ultimate forklift companion: Self-sufficient vacuum handling for internal logistics. This system offers maximum versatility, allowing you to switch between forklift pockets and crane hooks as needed.
Adaptable to almost all forklift forks. Convenient operation from the driver’s cab, thanks to the remote control panel.
