Details
The Aero-Cube® is damage-free and gentle on the surface of the material, even for goods with particularly high-quality surfaces. The Aero-Cube® is ready for use even at 60 % vacuum utilisation. The warning lights and the acoustic alarm activate when the vacuum level is too low to ensure maximum safety. The suction plates are UV-resistant and remain elastic at sub-zero temperatures.
Applications for the Aero-Cube®

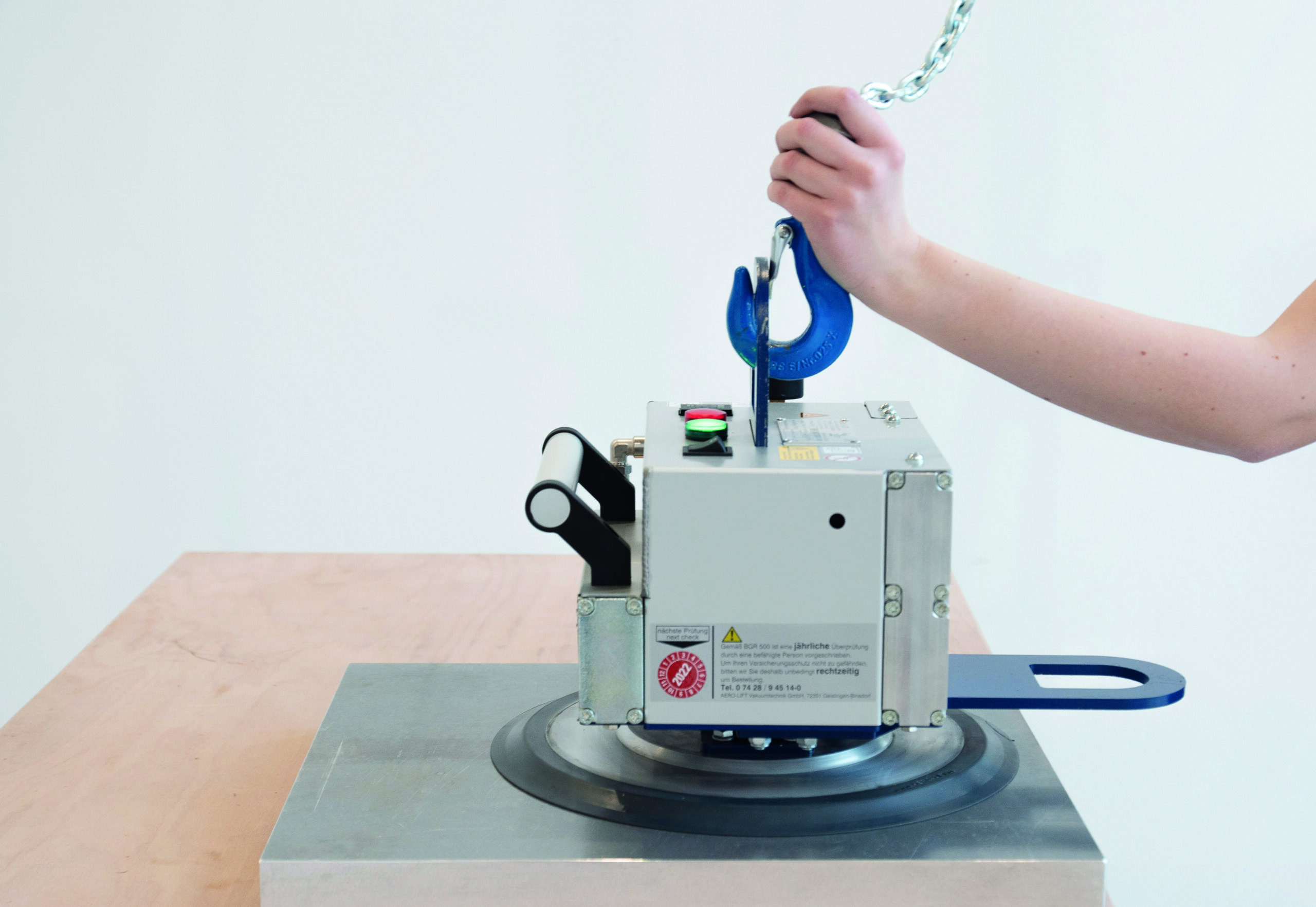

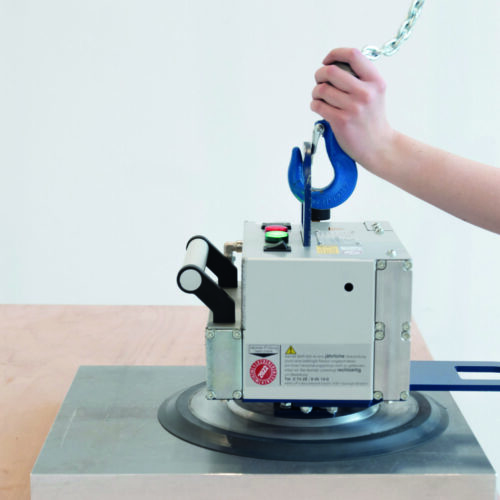

The flexible vacuum lifter for the construction site is used in conjunction with any lifting equipment and is ideal for applications such as
- Lifting of all kinds of different airtight panel materials
- Lifting of sheet metal
- Lifting glass
- Lifting barrels
- Construction sites with very different lifting tasks
- Designed for indoor use. (+5 to 40°C)
Features of the Aero-Cube®
-

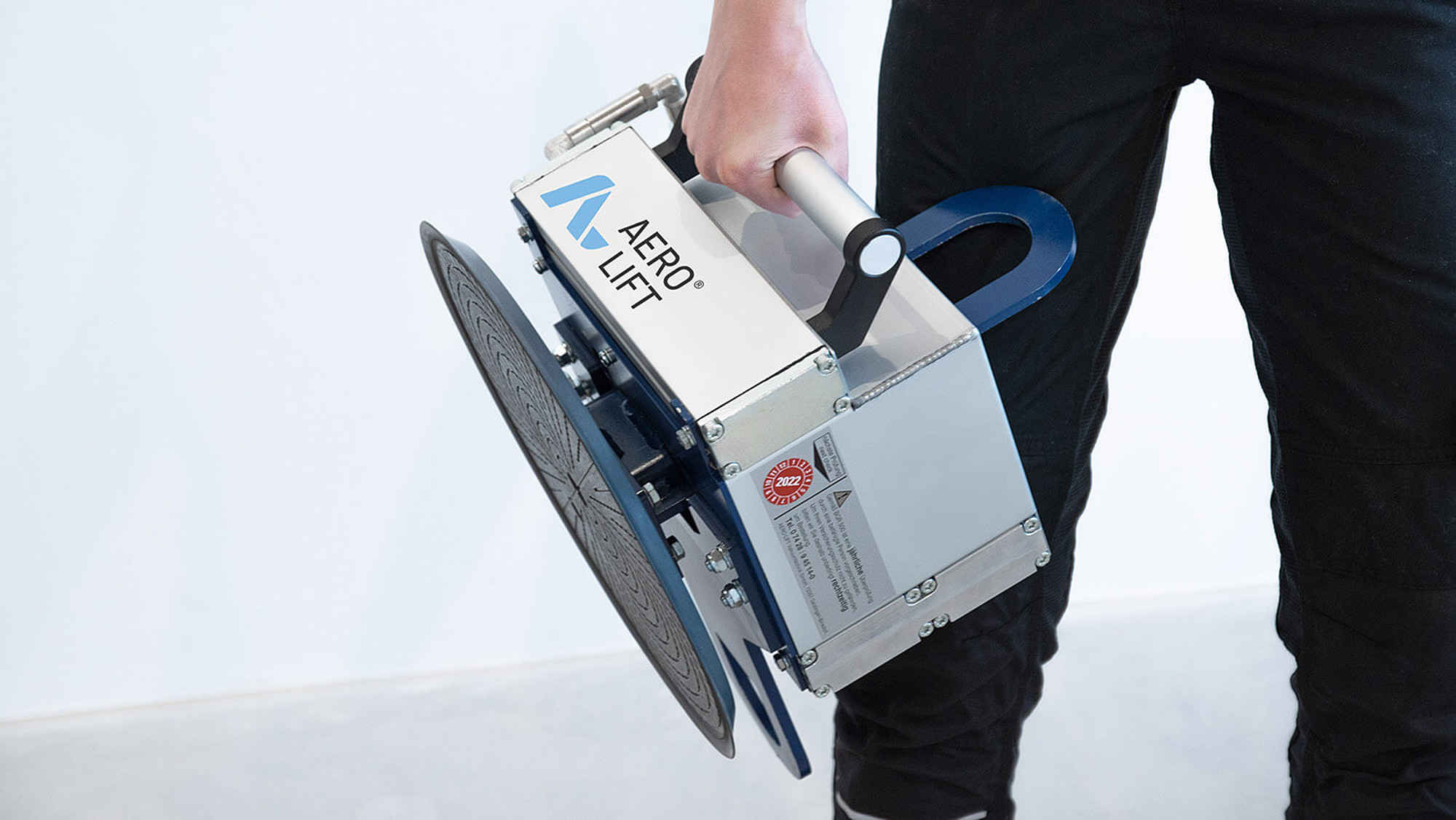

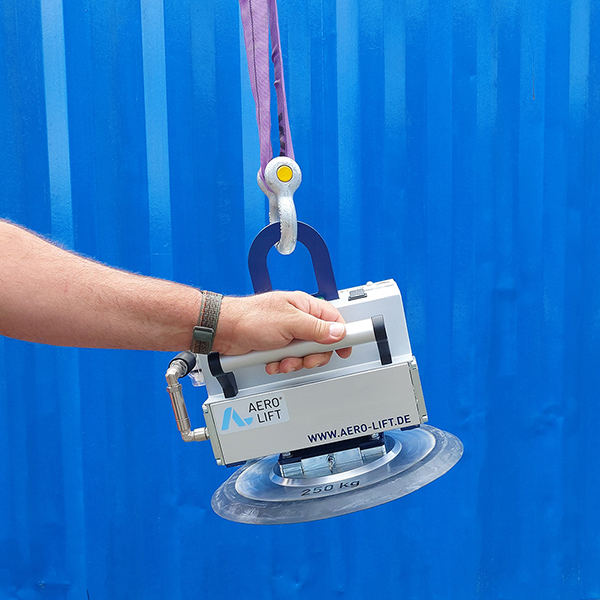

Portability: Weighing approximately 18-20 kg, the Aero-Cube can easily be carried by hand around a work area without any additional help.

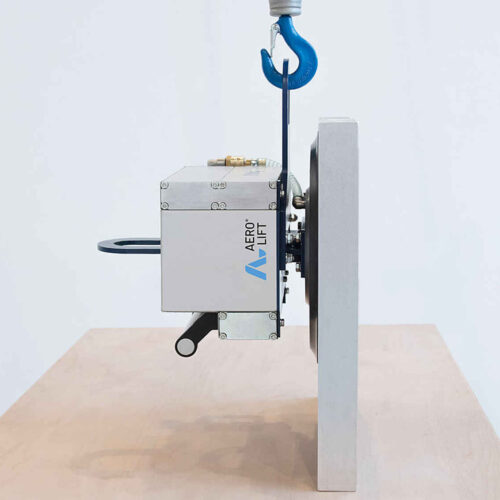

- Versatility: Equipped with two integrated lifting eyes, the device can lift loads horizontally and vertically, eliminating the need for multiple devices.
- Material Compatibility: Metal, Glass, Plastic, and any airtight material.
- Lifting capacity: 250 kg Horizontal load capacity / 125 kg Vertical load capacity.
- Ease of Use: Operation is intuitive and simple, featuring clear symbols and lights on the control panel, and tool-free connectors for assembly of all parts.
Special features of the Aero-Cube®

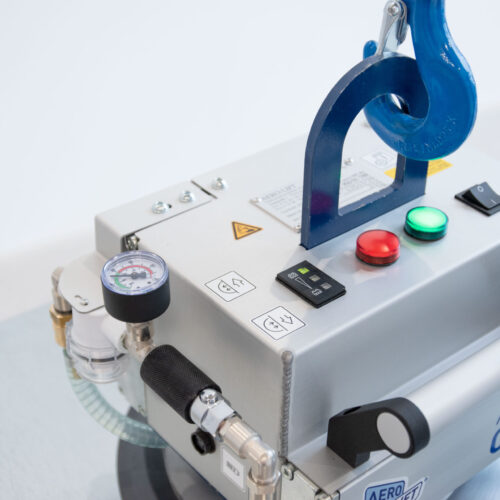

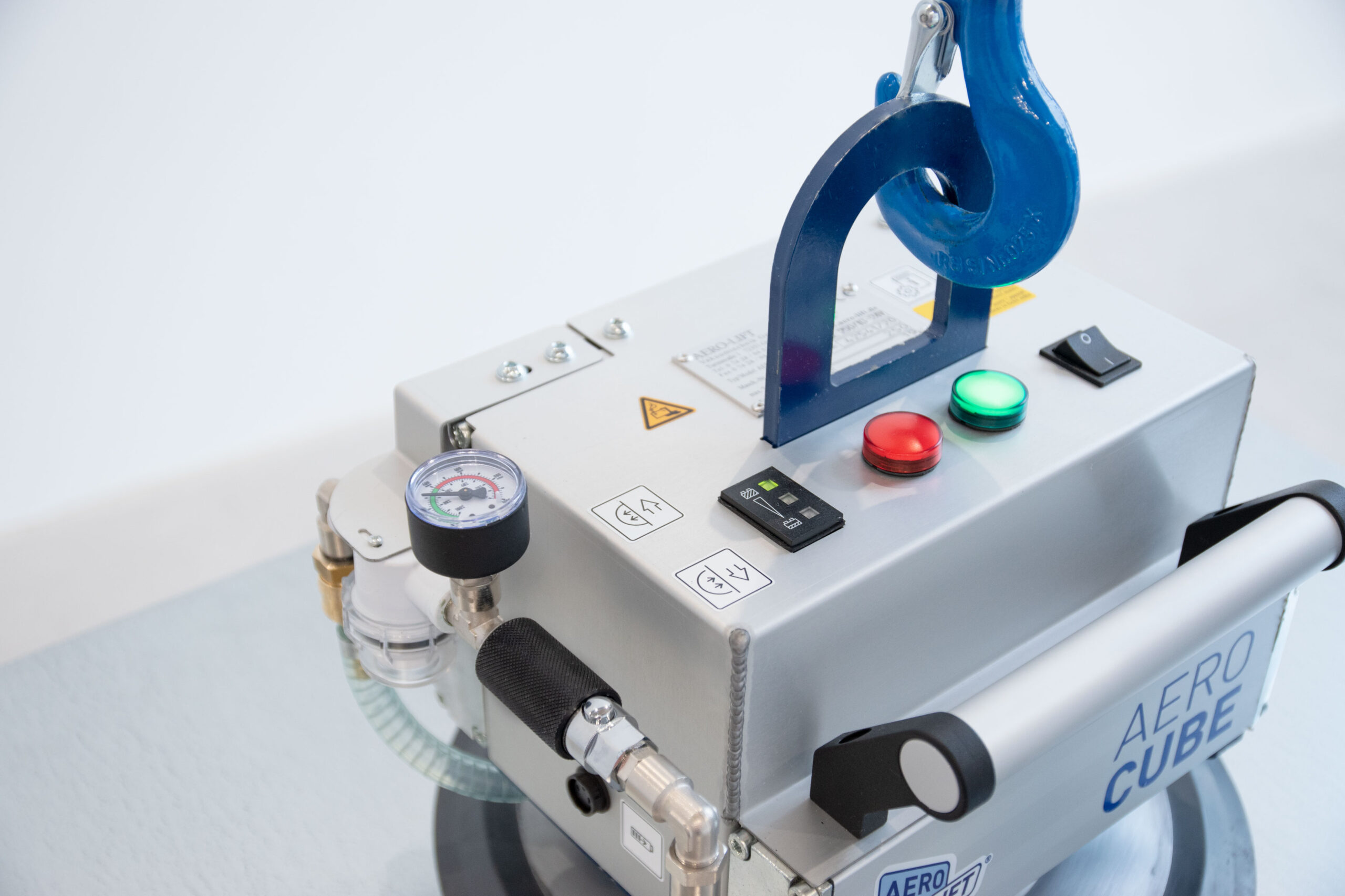

- Safety: The system includes an intelligent audio buzzer alarm and visual low-vacuum warning lights to ensure high operational safety and alert the operator in case of a vacuum loss.

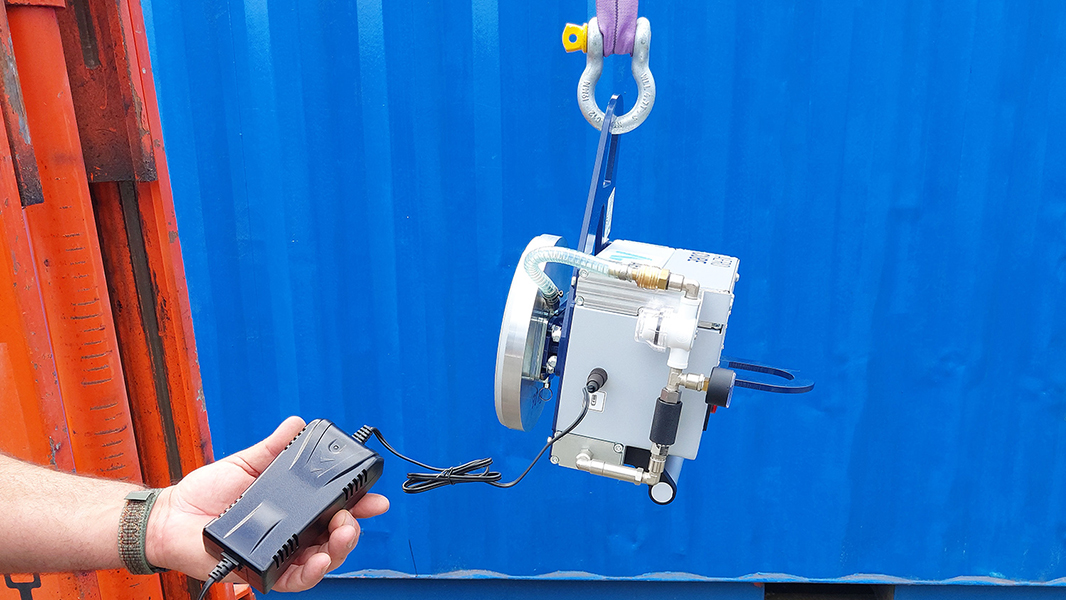

- Battery Operation: It offers flexibility in locations without a constant power source.
- Integrated “Ecomatic”: pump control module ensures high energy efficiency and extended battery life by automatically regulating the vacuum level.

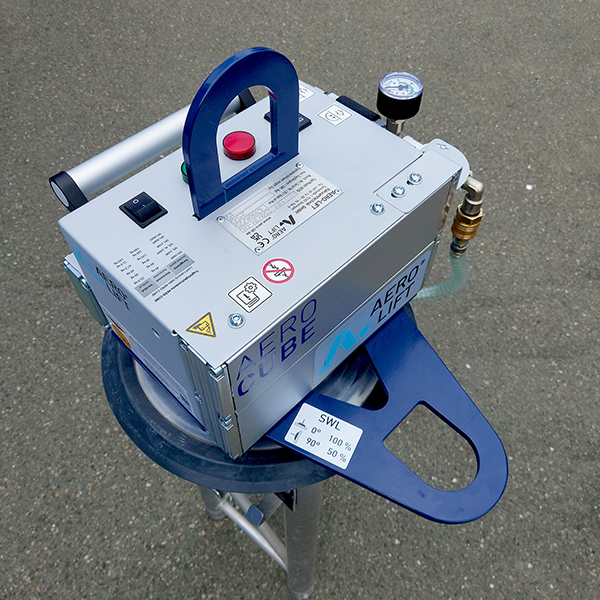

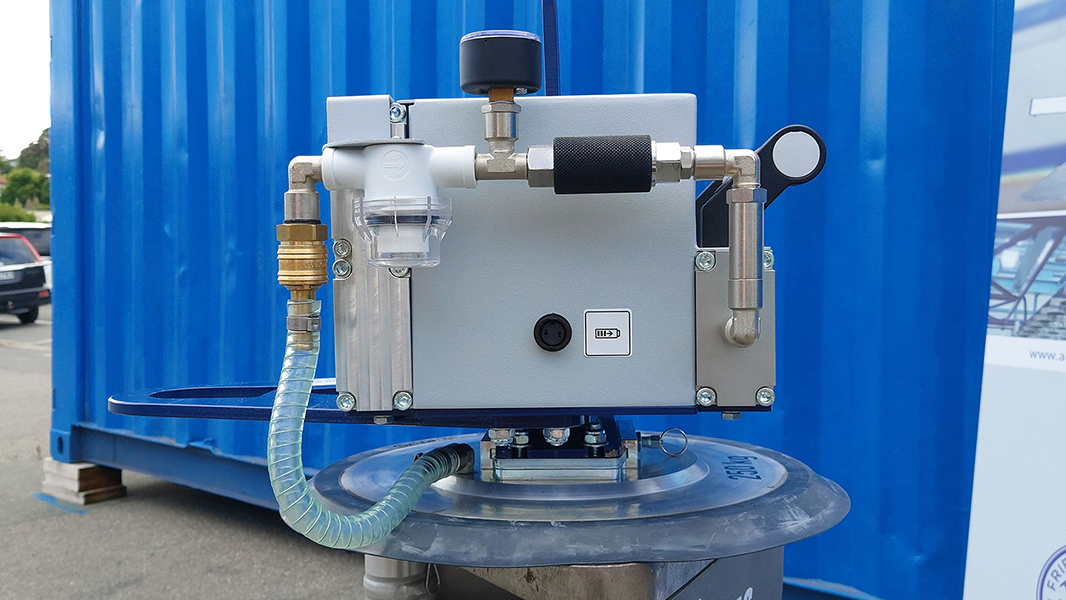

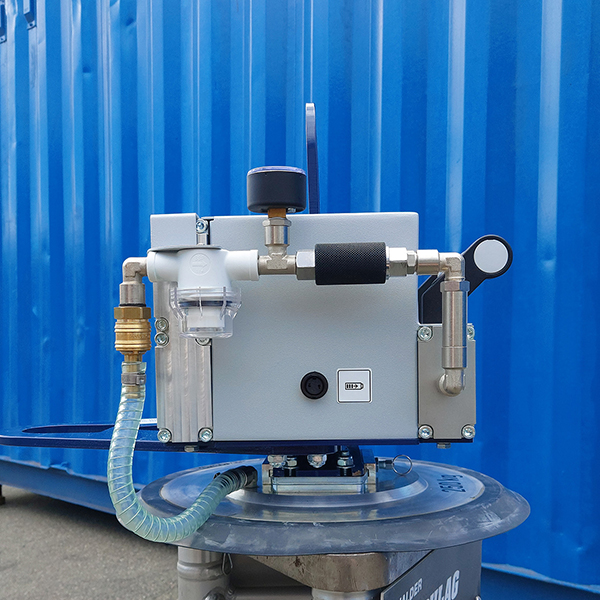

- A real-time display of the vacuum level is provided by LED lights and a pressure gauge with a coloured safe working range, which offers information on the system’s operational readiness.
Other special features
- Battery-powered vacuum generation with long runtimes – Average of ≈150 lifting cycles.
- Extremely robust design of all components for high protection and longevity.
- With an automatic power saving function (automatic pump control) – The pump switches off at 74% vacuum and switches on automatically at 57% vacuum, ensuring a constant operating vacuum between 57% and 74%.
Optional Accessories

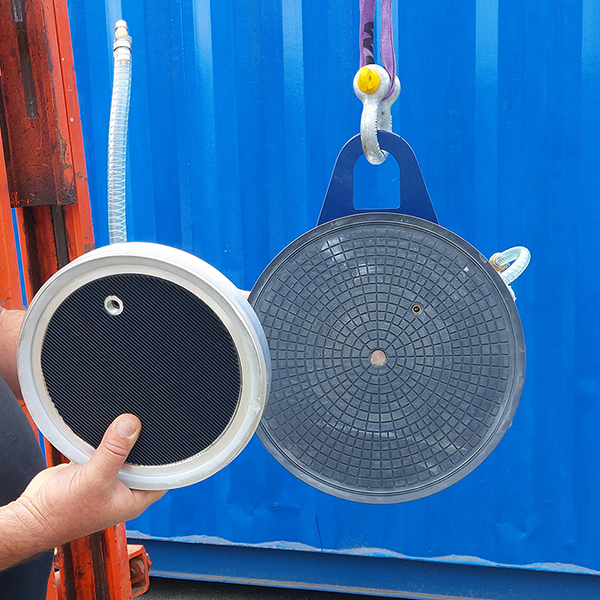

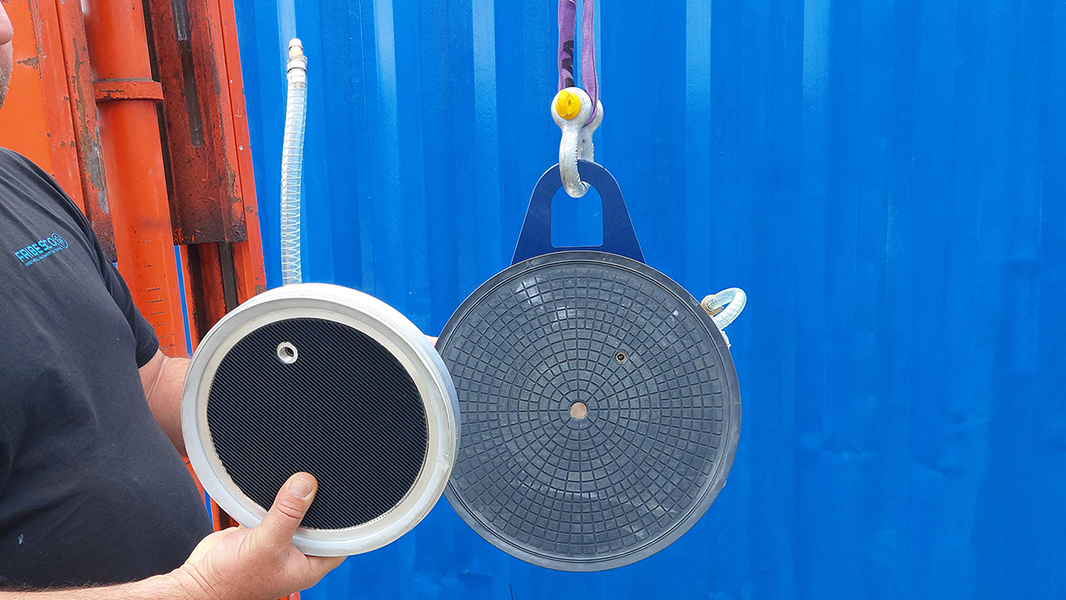

- Quick-change support plate for fast suction plate replacement
- Suction plate: Ø 245 mm 90 kg horizontal / 45 kg vertical
- Suction plate: Ø 270 mm 135 kg horizontal / 67.5 kg vertical
- Suction plate: Ø 300 mm 145 kg horizontal / 72.5 kg vertical
- Suction plate: Ø 360 mm 250 kg horizontal / 125 kg vertical

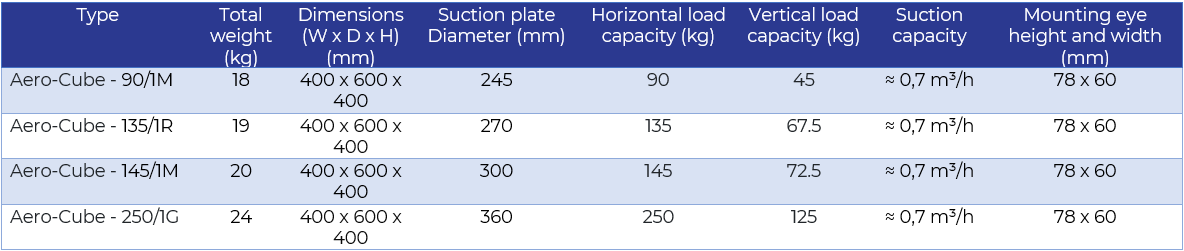

Technical data
-
FRIBESCO’s reasons:
Why Choose the AERO-CUBE?
✅ Fully Mains Power Independent: Powered by a 24V battery without the restrictions of power cables.
✅ Ergonomic & Lightweight: The compact design reduces physical strain on the machine operators.
✅ Robust construction for durability: Aluminium housing and high-quality steel frame.
✅ Multi-Directional Handling: Equipped with dual suspension eyes
✅ Enhanced Safety Standards: Vacuum reservoir that holds the load securely for several minutes even during a loss of power supply to the pump.The AeroLift Aero Cube gives professionals a versatile solution for industrial lifting and handling goods.
???? Contact us today to discuss your requirements and arrange a demo.

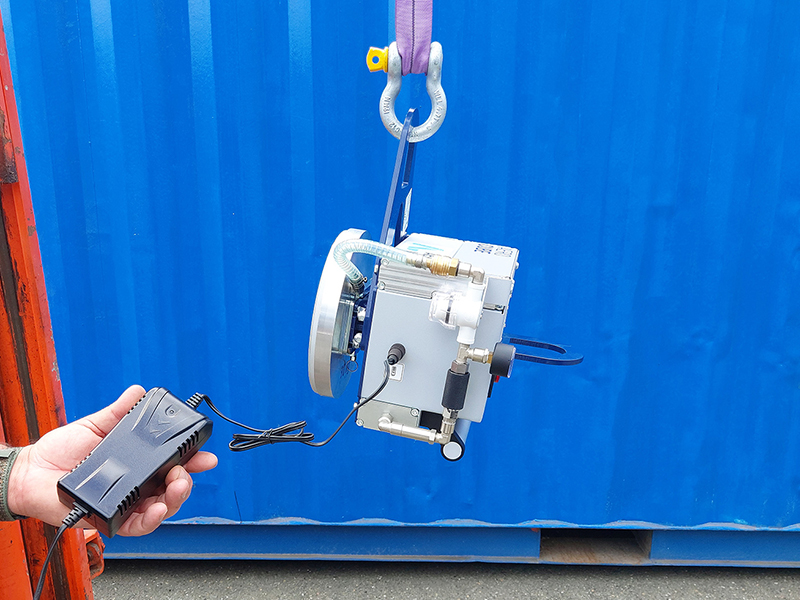

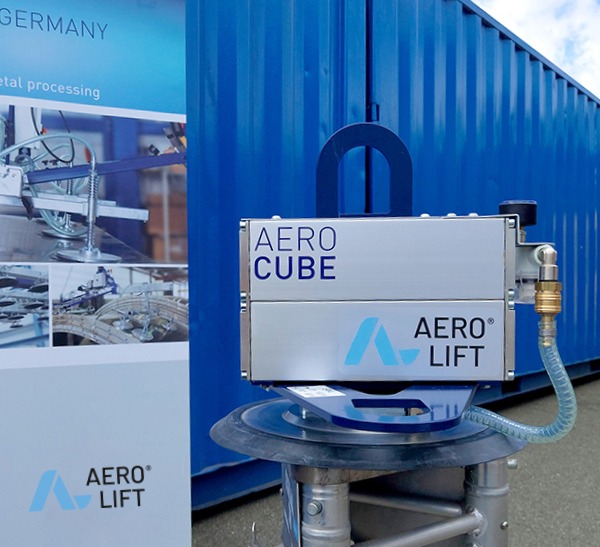

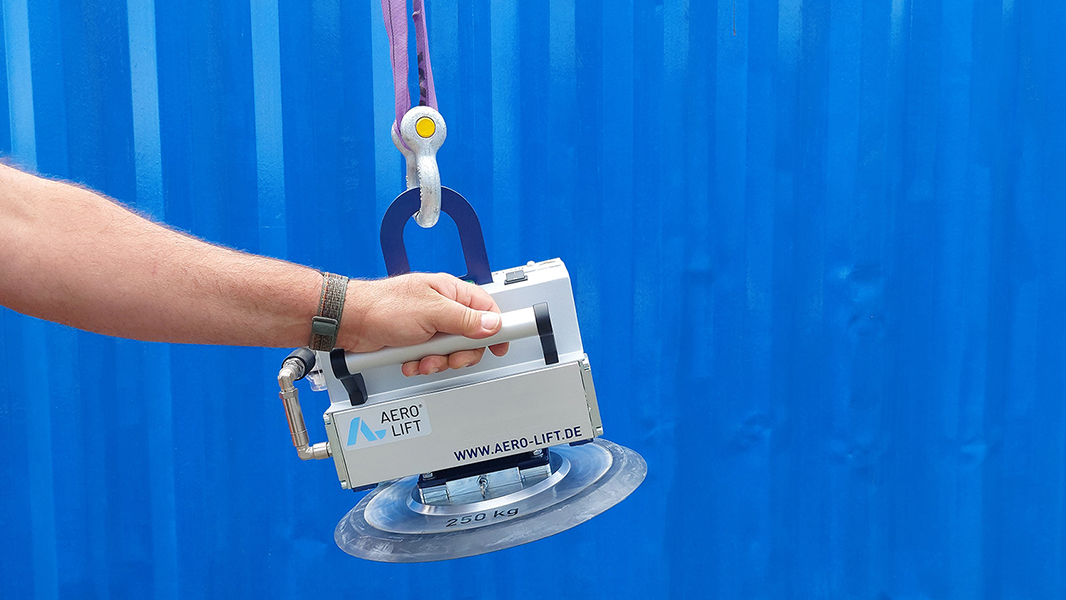

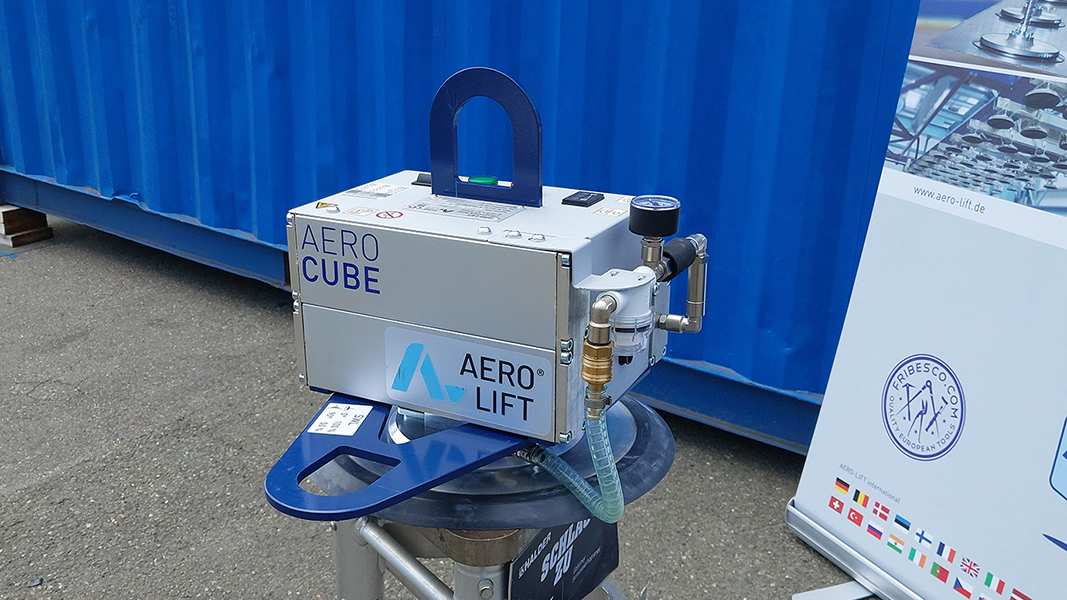

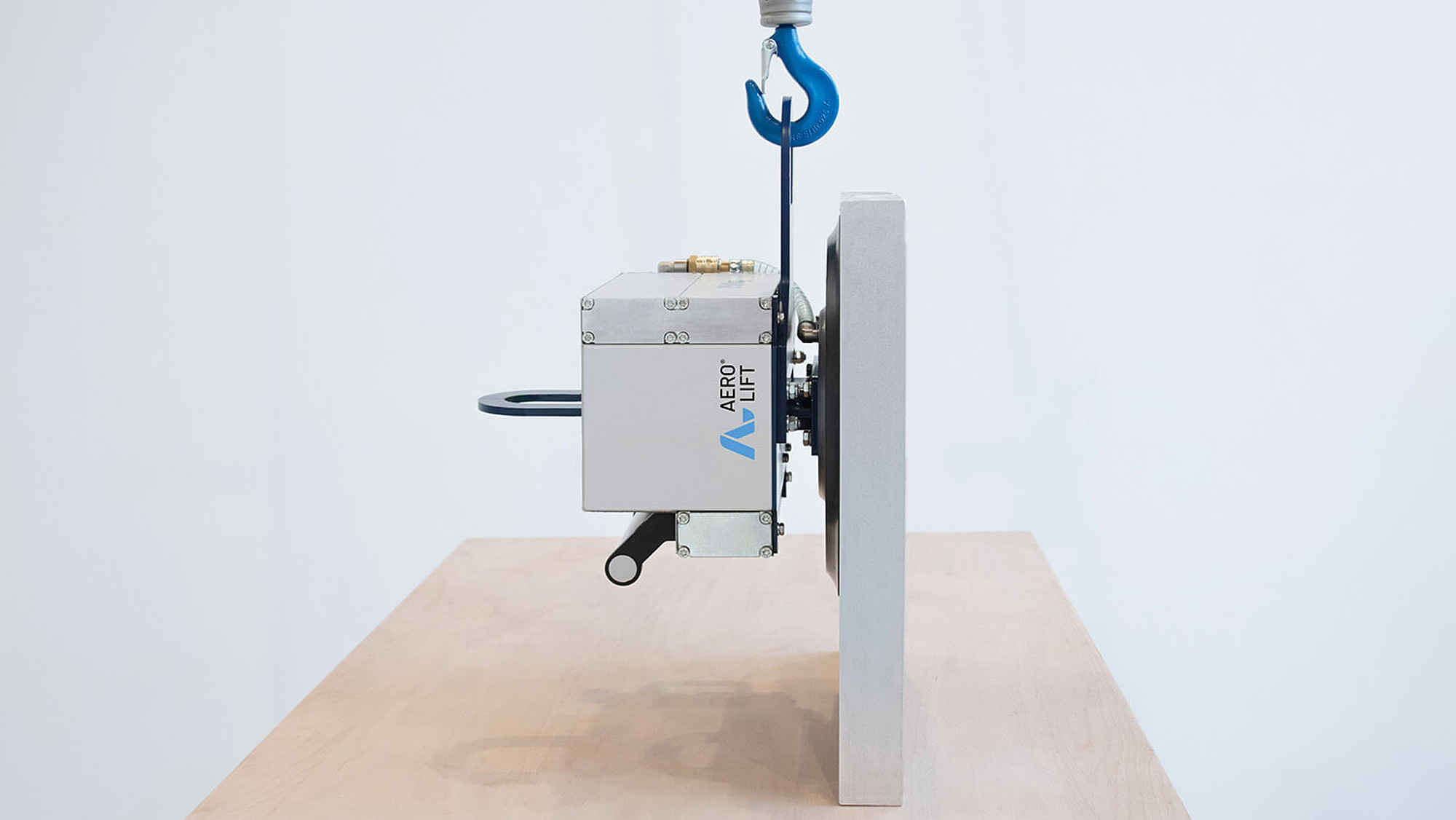

The Aero Cube is a compact, battery-powered vacuum lifter designed for the flexible and independent handling of a wide variety of materials, both horizontally and vertically. It is intended for use with an overhead crane or gantry indoors.
