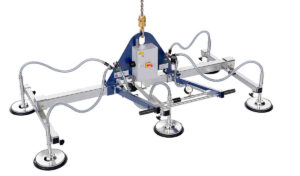

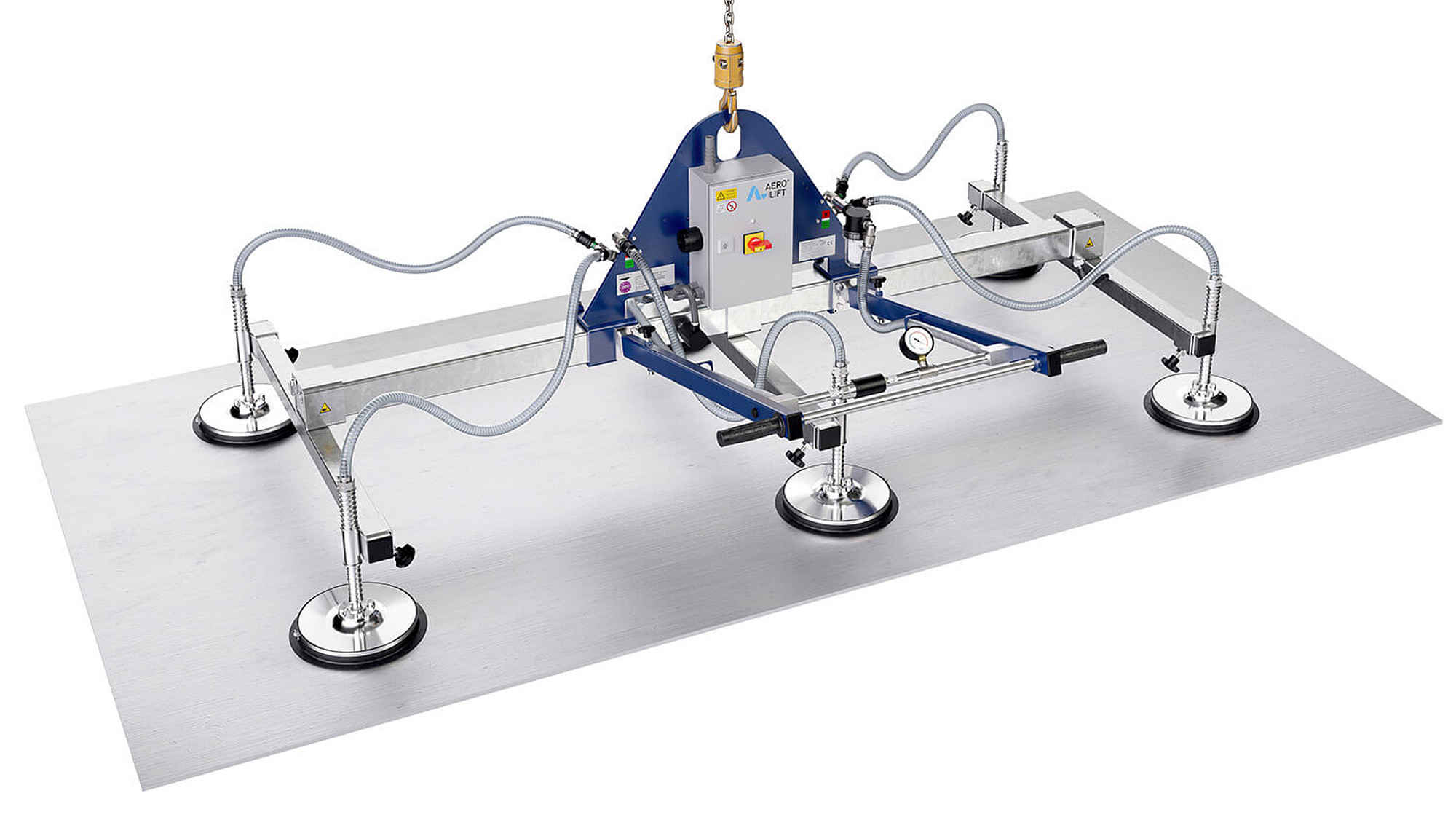

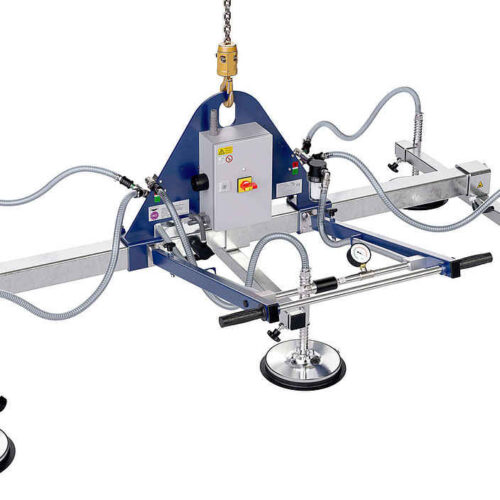

The AERO-BASIC is a modular vacuum lifting device designed for the horizontal transport of sheet metals, plastics, and various panels. The device is highly configurable based on the number of suction plates and crossbeams required for the load size, with a lifting capacity of up to 2000kg.
The AERO-BASIC is built on the principles of Perfectionism (in-house production of all parts) and Pioneer technology. It is designed to reduce employee sick days by providing highly ergonomic solutions that make heavy lifting considerably easier.
Applications for the Aero-Basic
The flexible vacuum lifter is used in conjunction with any lifting equipment and is ideal for applications such as:
- Material Handling: Primarily used for moving non-porous materials like metal sheets and plastics.
- Industrial Processes: Ideal for loading and unloading machinery or moving large-format goods within production environments.
- Customisable Workflow: Its modular design allows it to be adapted for specific load sizes, with options to extend the main crossbeam for extra-large materials
- Designed for indoor use.
Features of the Aero-Basic
-
Operational Safety: Features a generously dimensioned vacuum reservoir and an intelligent warning device to protect the operator and the load.
- High Efficiency & Low Cost: Utilises an energy-efficient vacuum generator. Optional modules like Ecomatic can reduce power consumption by up to 70% by regulating pump activity based on actual use.
- Durability: Built with a robust welded steel frame and hot-dip galvanised crossbars to ensure a long service life in demanding industrial conditions.

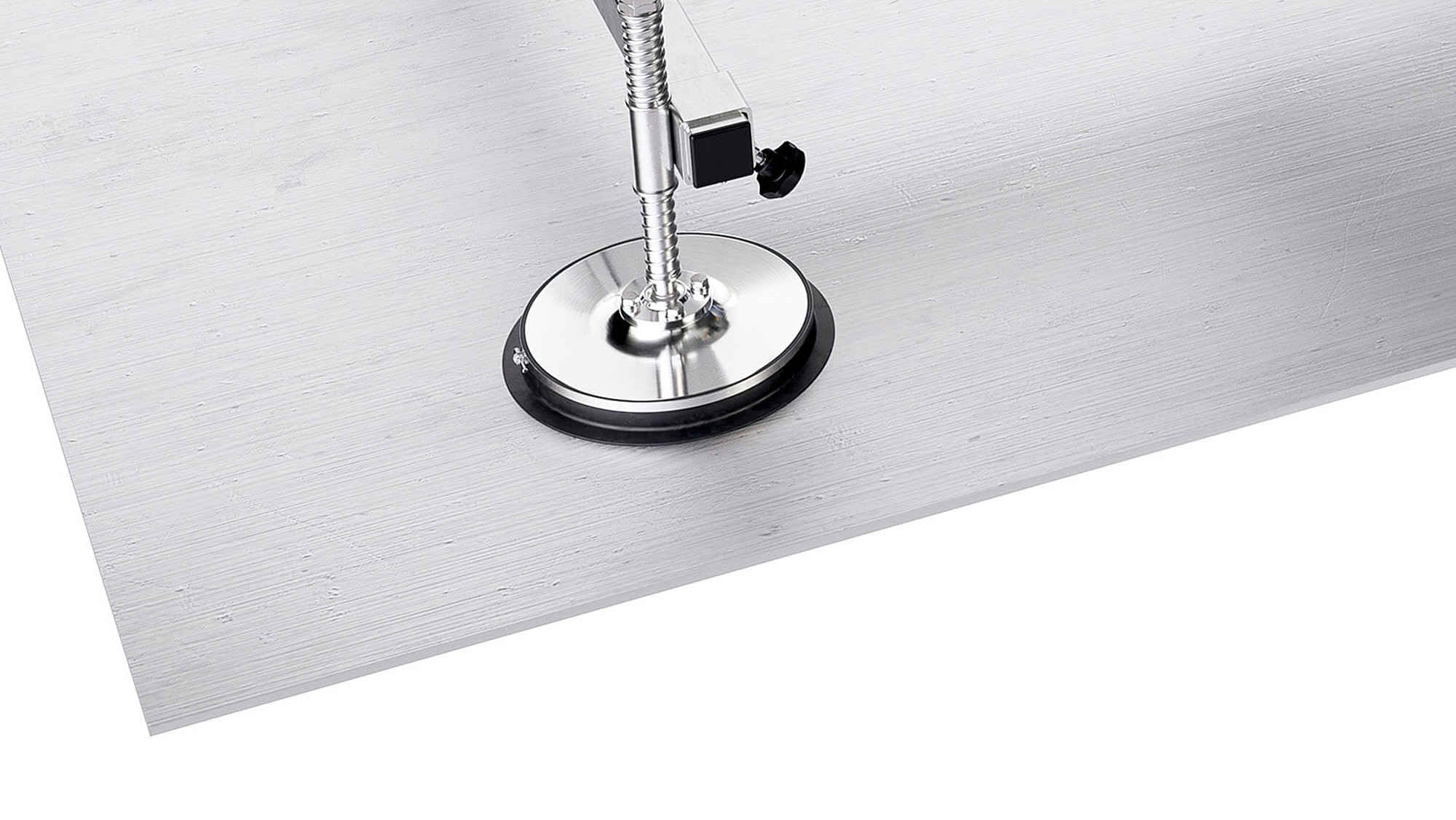

- Gentle Handling: Uses high-quality full elastomer seals to prevent damage or marks on sensitive surfaces like polished metal or plastic.

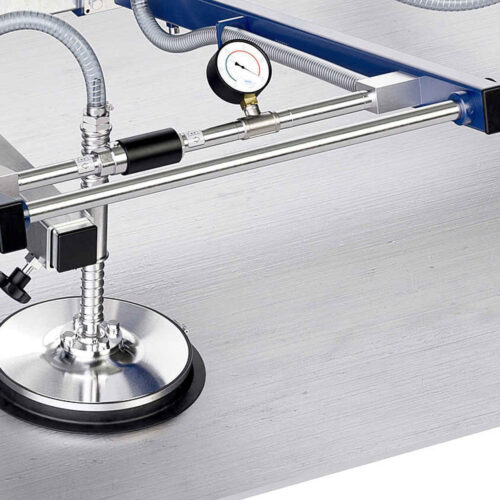

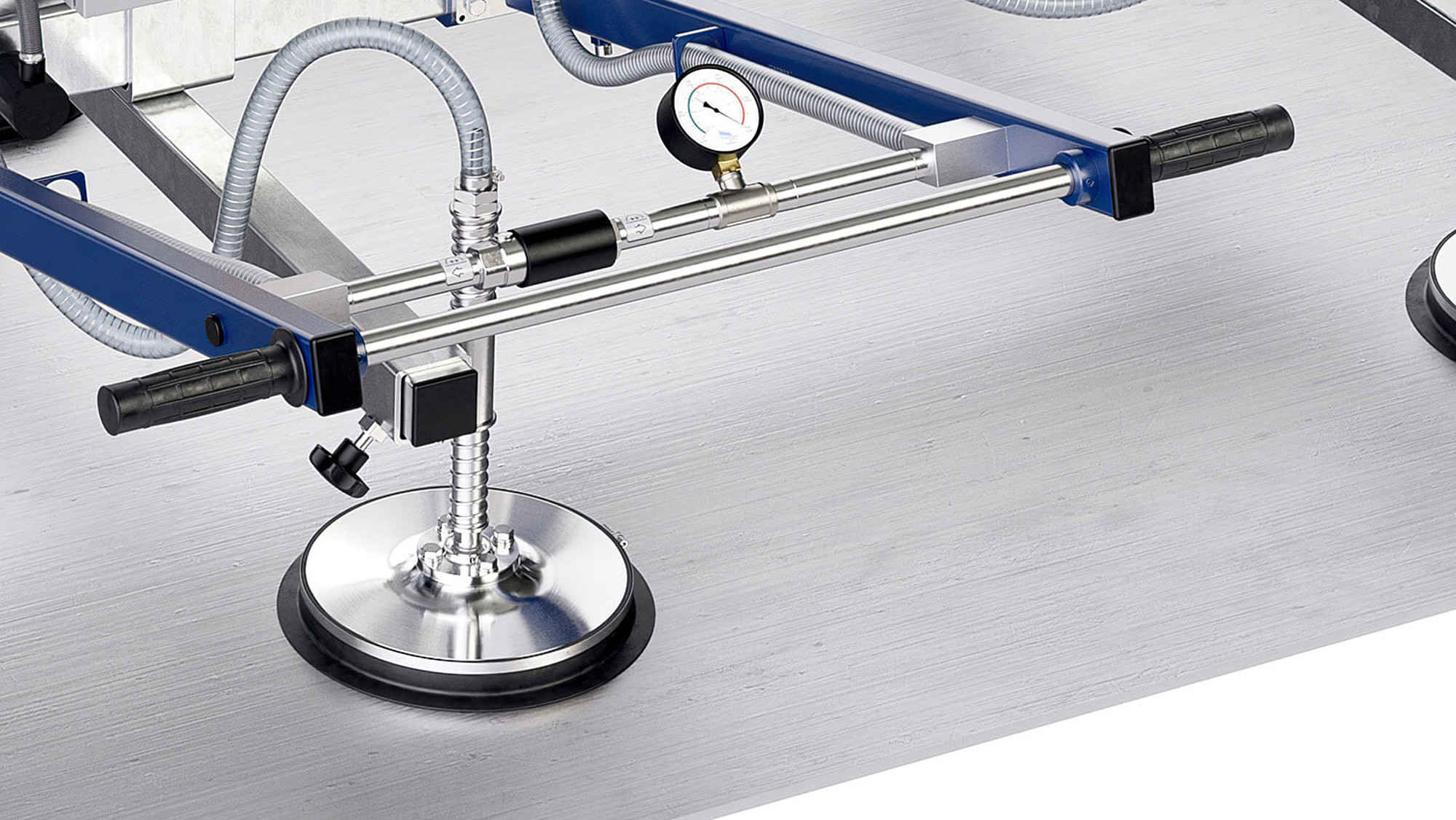

- Ease of Maintenance: The intelligent suction plate concept allows for “tool-free” seal replacements in seconds, significantly reducing downtime.
- Versatility: The basic package includes manual slide valves that allow individual suction plates to be locked, enabling the device to quickly adapt to different transport dimensions.
Core Technical Specifications
- Load capacity: from 150kg up to 2000kg.
- Suction plates: 4 to 10 plates, depending on the model.
- Plate diameters: 120mm to 350mm.
- Main beam length: 2m or 3m (optional extension from 2 to 5 cross beams).

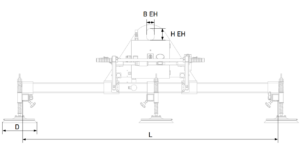

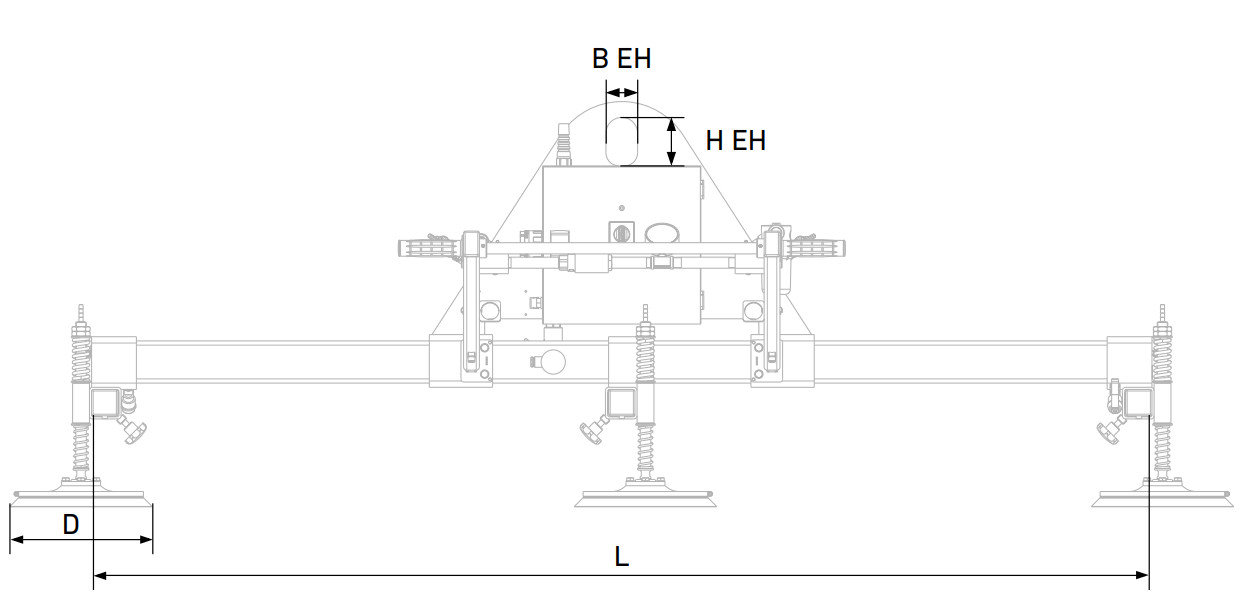

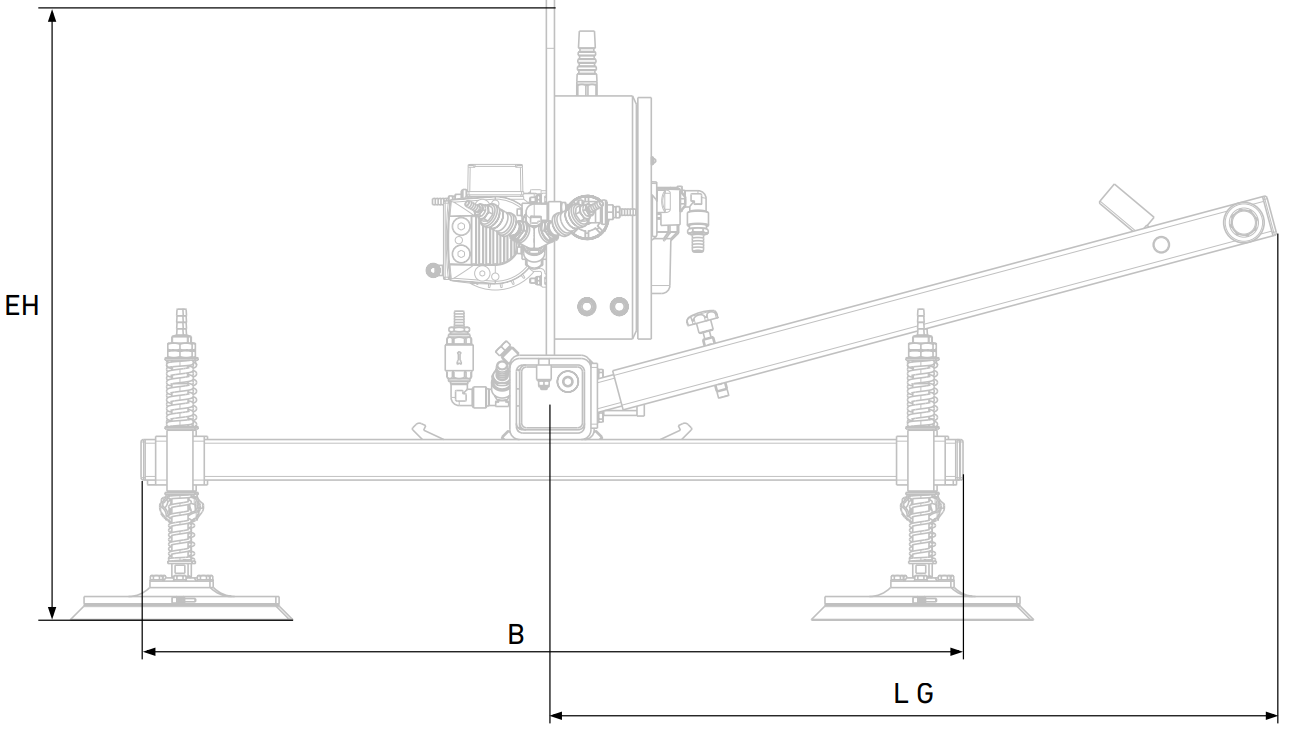

- Control handle length: Adjustable between 850mm and 1260mm (refer to technical drawing “LG” measurement).
- Construction: Robust welded steel frame with hot-dip galvanised crossbars.
- Variants: Different suction plate diameters, cross beam lengths, handle lengths, suspension eyes, etc.
Optional Accessories
- Ecomatic & Safety (-ES): Adds red/green LED readiness lights and a pump control module that can reduce power consumption by up to 70%.
- Park & Move (-PR): Adds adjustable support feet and castors directly to the device, making it easier to transport and park the system when not in use.
- Stacking (-HE): An adjustable operating handle that can be angled via a Bowden cable to suit different operator heights or stacking positions.
- Chain Hoist Connection (-CH): Replaces the standard CEE connector with a spiral cable and Harting connector to power the lifter directly from the hoist, keeping the workspace clear of cables.
- Hydro (-HY): Includes a water separator to protect the vacuum pump from moisture and dirt.
- 3.0-metre Main Cross Beam: An extension used to compensate for overhang when lifting extra-large sheets
- Holder bag: A holder bag for the crane’s control bulb to be mounted on the lifting device.
- Cable drum: 5m and 10m Cable drum for indoor use.

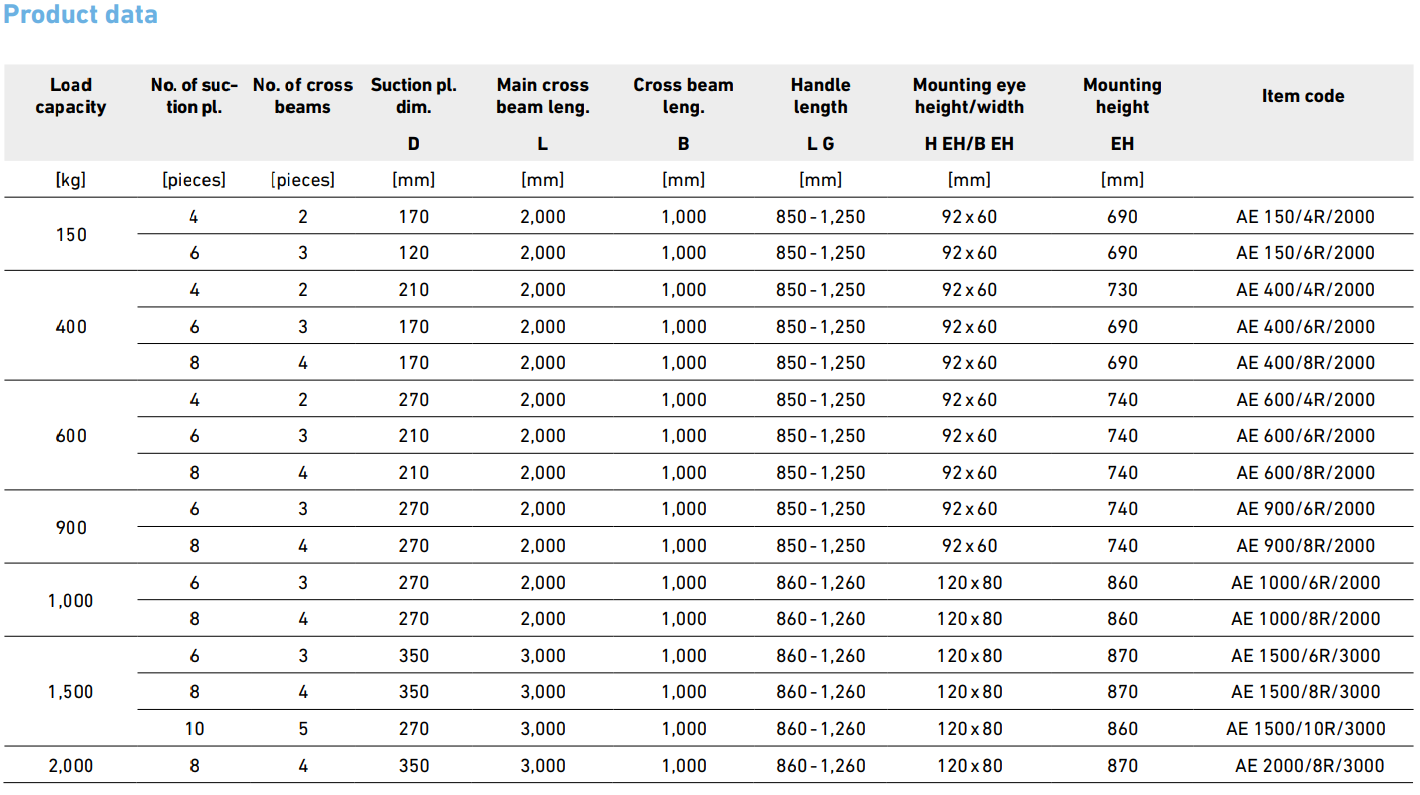

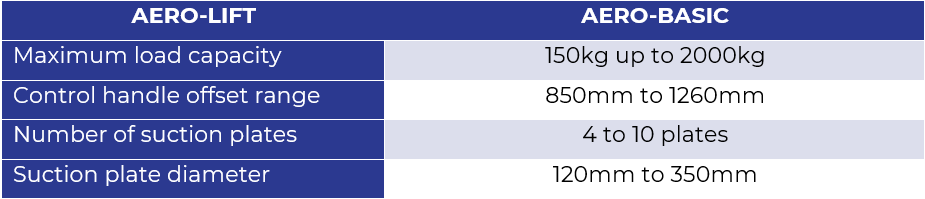

Technical data
-
FRIBESCO’s reasons:
Why Choose the AERO-BASIC?
✅ Modular Versatility: The basic system is highly flexible and can be individually expanded with various options.
✅ Guaranteed Operator Safety: It features a generously dimensioned vacuum reservoir paired with an intelligent warning device.
✅ Robust construction for durability: Robust welded steel frame and hot-dip galvanised crossbars for industrial use.
✅ Damage-Free Handling: It uses high-quality full elastomer seals that provide gentle transportation.
✅ High Efficiency & Low Maintenance: It includes an integrated motor protection switch to prevent downtime and an intelligent suction plate concept that allows seals to be replaced in seconds without toolsThe AeroLift Aero Basic gives professionals a versatile solution for industrial lifting and handling goods.
???? Contact us today to discuss your requirements and arrange a demo.
The AERO-BASIC is designed for the “strong” lifting of heavy loads and large formats. Robust, durable and modular: The standard device for a wide range of indoor lifting goods.
