Multitalent in the handling of panels for roof and wall

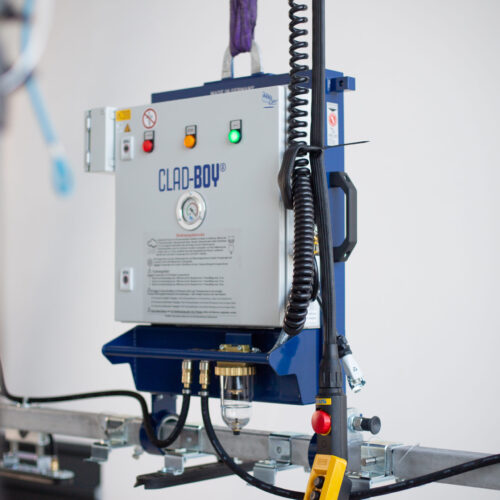

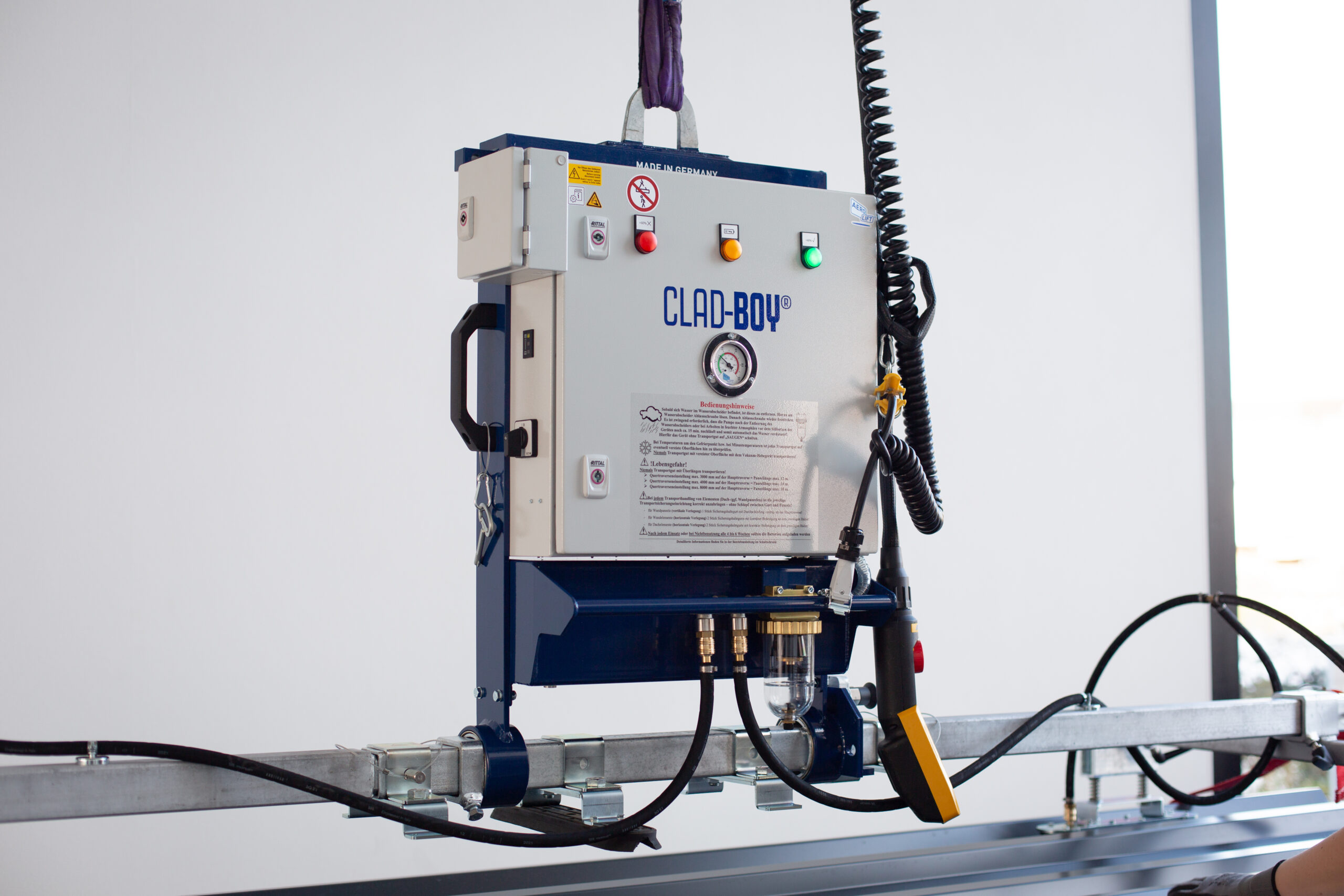

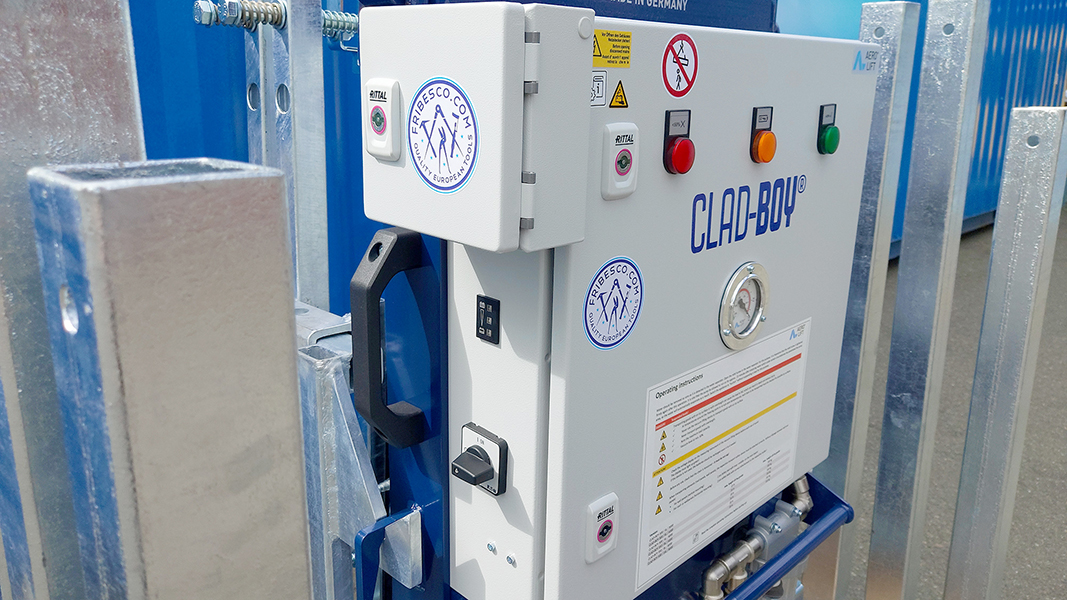

The CLAD-BOY® works with maximum efficiency and safety and ensures higher customer satisfaction due to undamaged goods in transit. You save time, manpower, and annoying rework, and your employees work ergonomically. The CLAD-BOY® can be used anywhere, independent of the mains supply and is extremely compact. The CLAD-BOY® is ideal for mounting roof panels, fire protection elements, trapezoidal sheet metal and wall elements, both vertically and horizontally – the vacuum lifter can be configured for all variants.

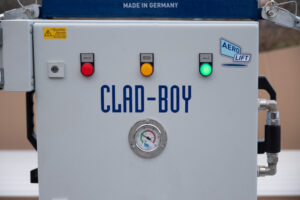

The safe companion for your construction site Transport with the CLAD-BOY® is damage-free and gentle on the material, even for goods with particularly high-quality surfaces. The CLAD-BOY® is ready for use even at 60 % vacuum utilisation. The safety belts, the warning lights, and the acoustic warning activate when the vacuum level is too low to ensure maximum safety. Sensitive components of the CLAD-BOY® are protected from the weather so that they can also be used in humid weather. The suction plates are UV-resistant and elastic at sub-zero temperatures.
Features of the CLAD-BOY®
-
One basic device, countless application possibilities
-
350 kg Horizontal load capacity (roof) / 240 kg Vertical load capacity (wall)
-
Up to 18-meter-long transport goods
-

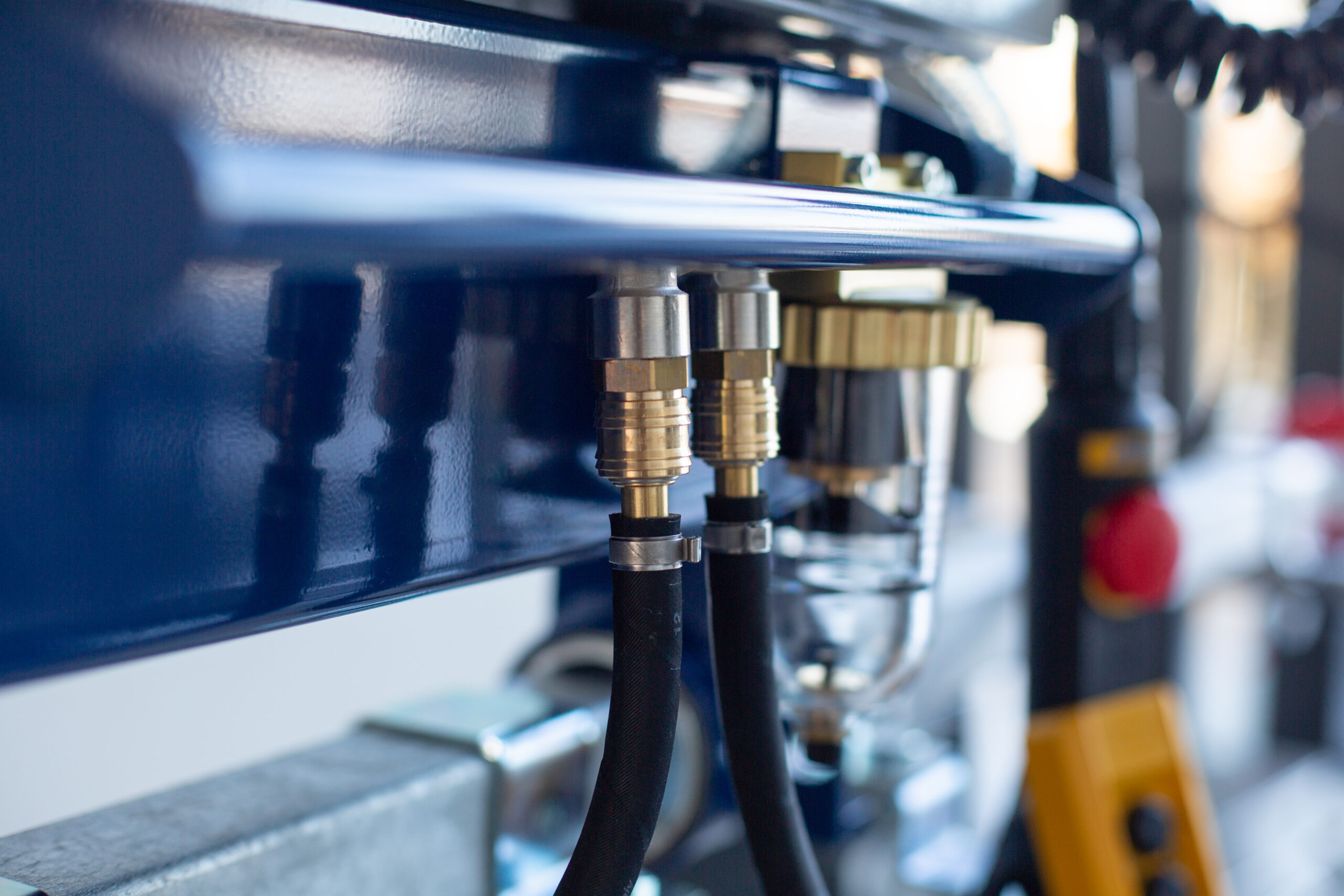

CLAD-BOY quick, tool-free connectors for assembly of all parts
-
Extremely robust construction ready for use outdoors, even in humid weather.
Special features of the CLAD-BOY®

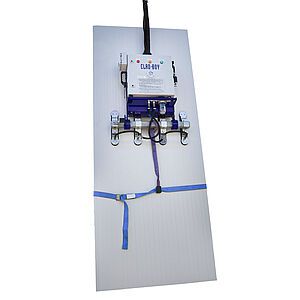

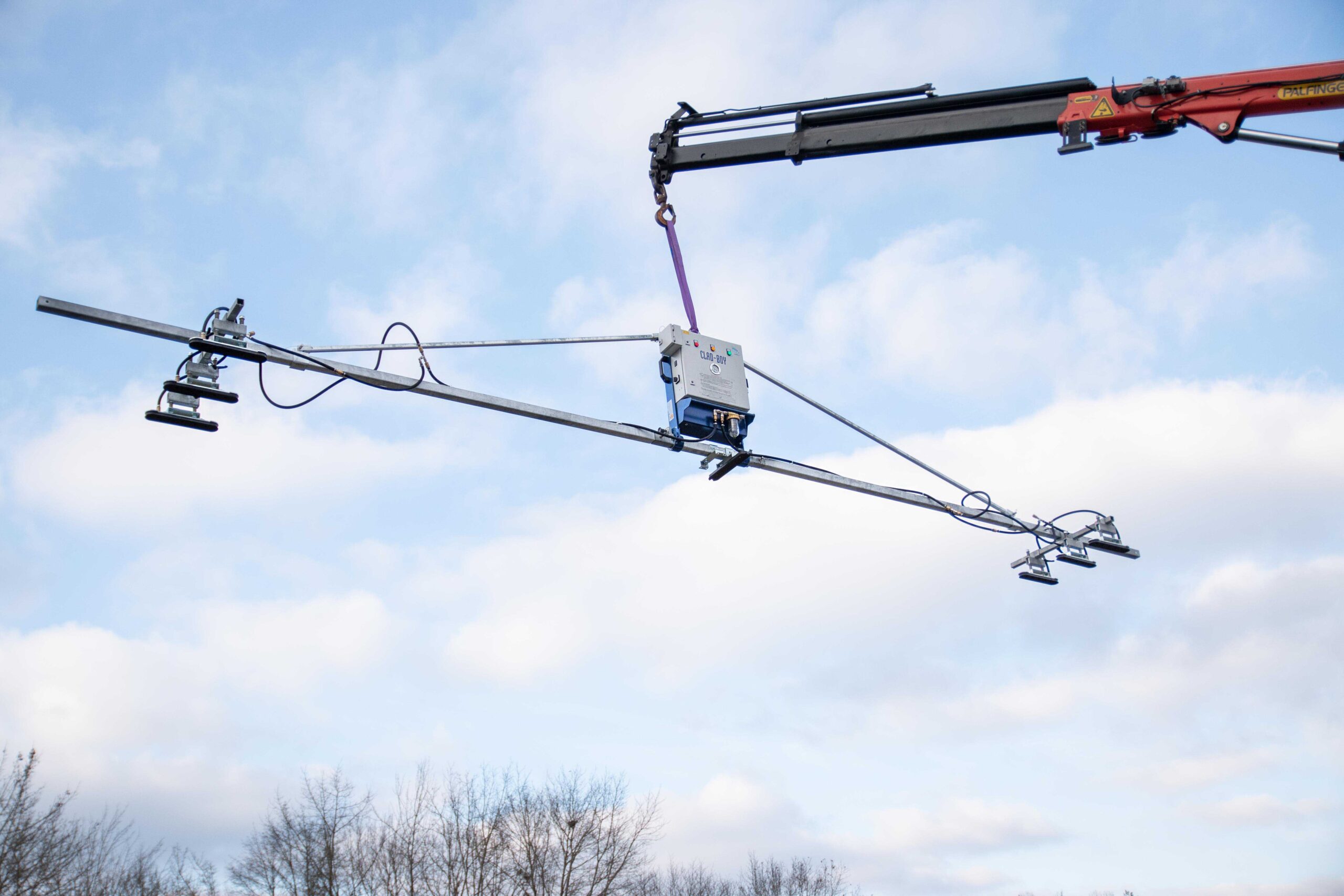

- The 90° rotating main beam allows the laying of panels on roofs and walls horizontally, vertically and diagonally.
- All components are designed to meet the toughest requirements.

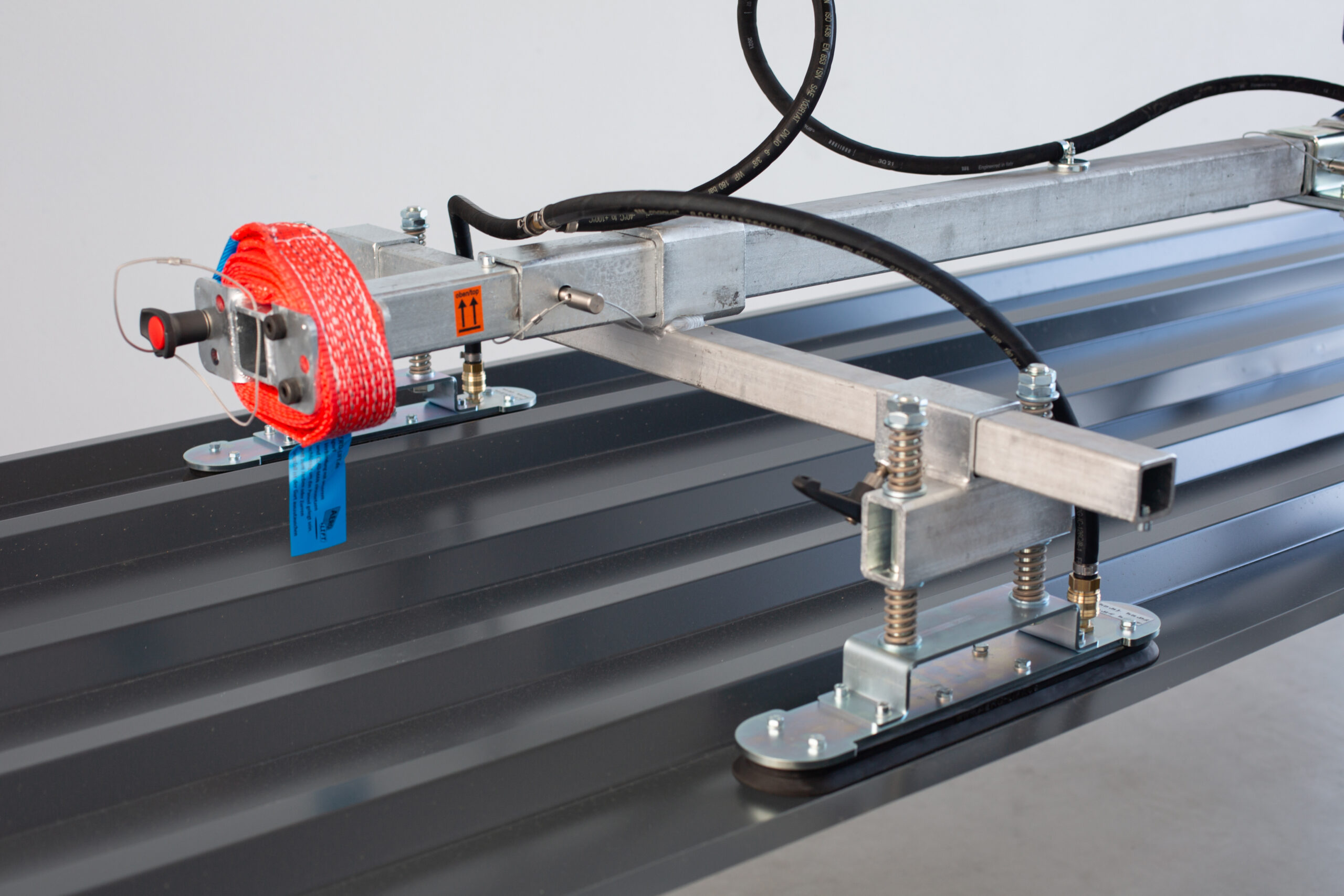

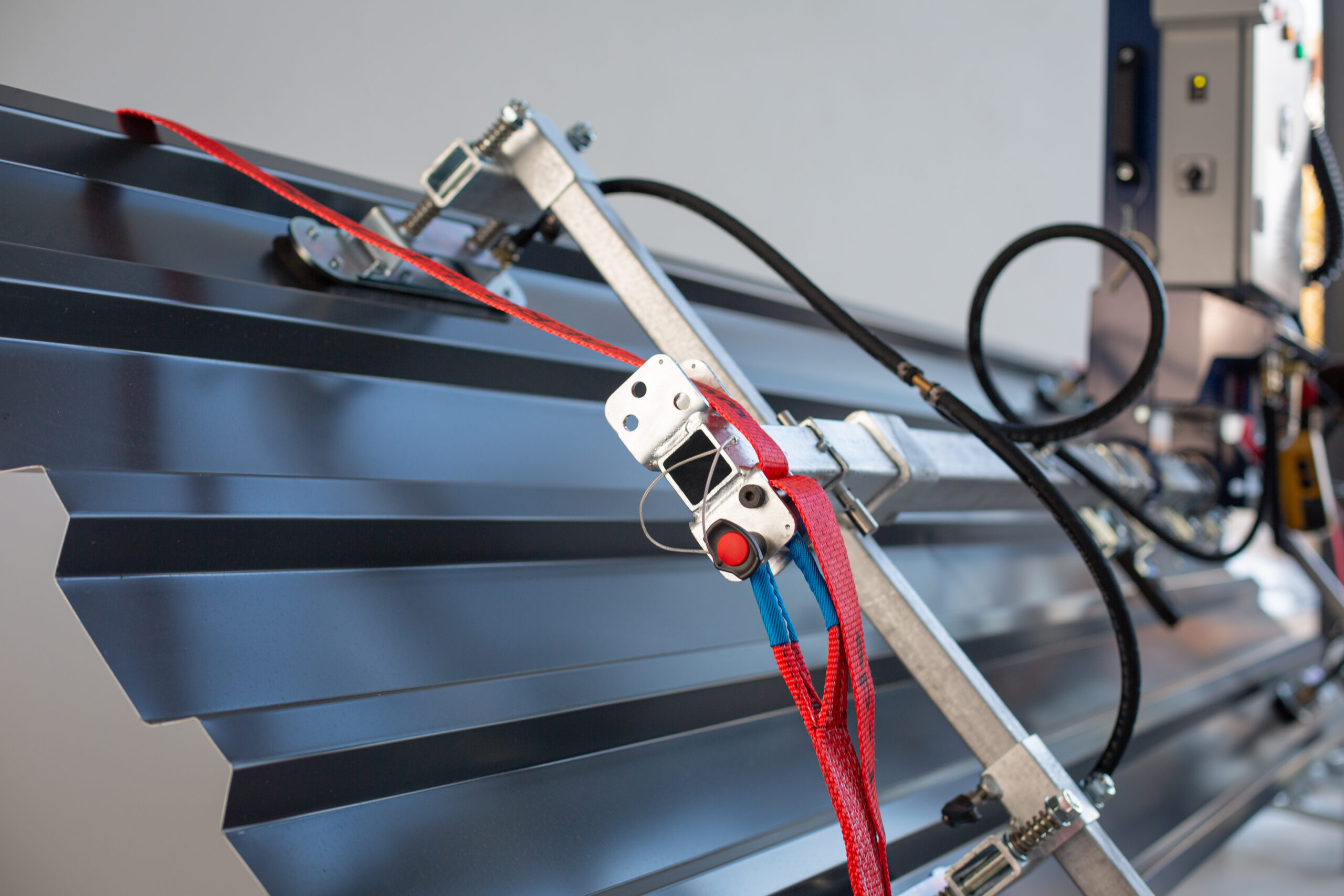

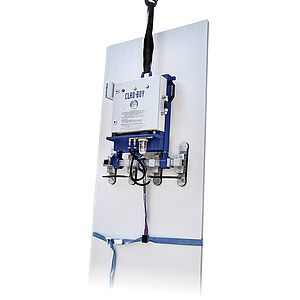

- Additional safety for transported goods and users is provided by the safety belts, which can be used in any position.

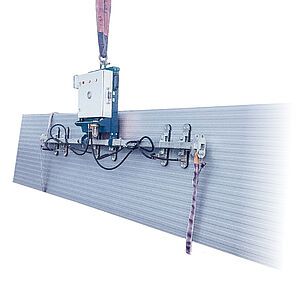

- Individually adjustable traverse and suction plate combinations allow for the different transport of goods.
- All attachments are safely stowed away in the transport frame and can be easily transported.

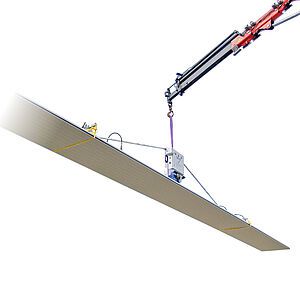

- The transport of workpieces is supported by safety belts and the flexibly mounted suspension.

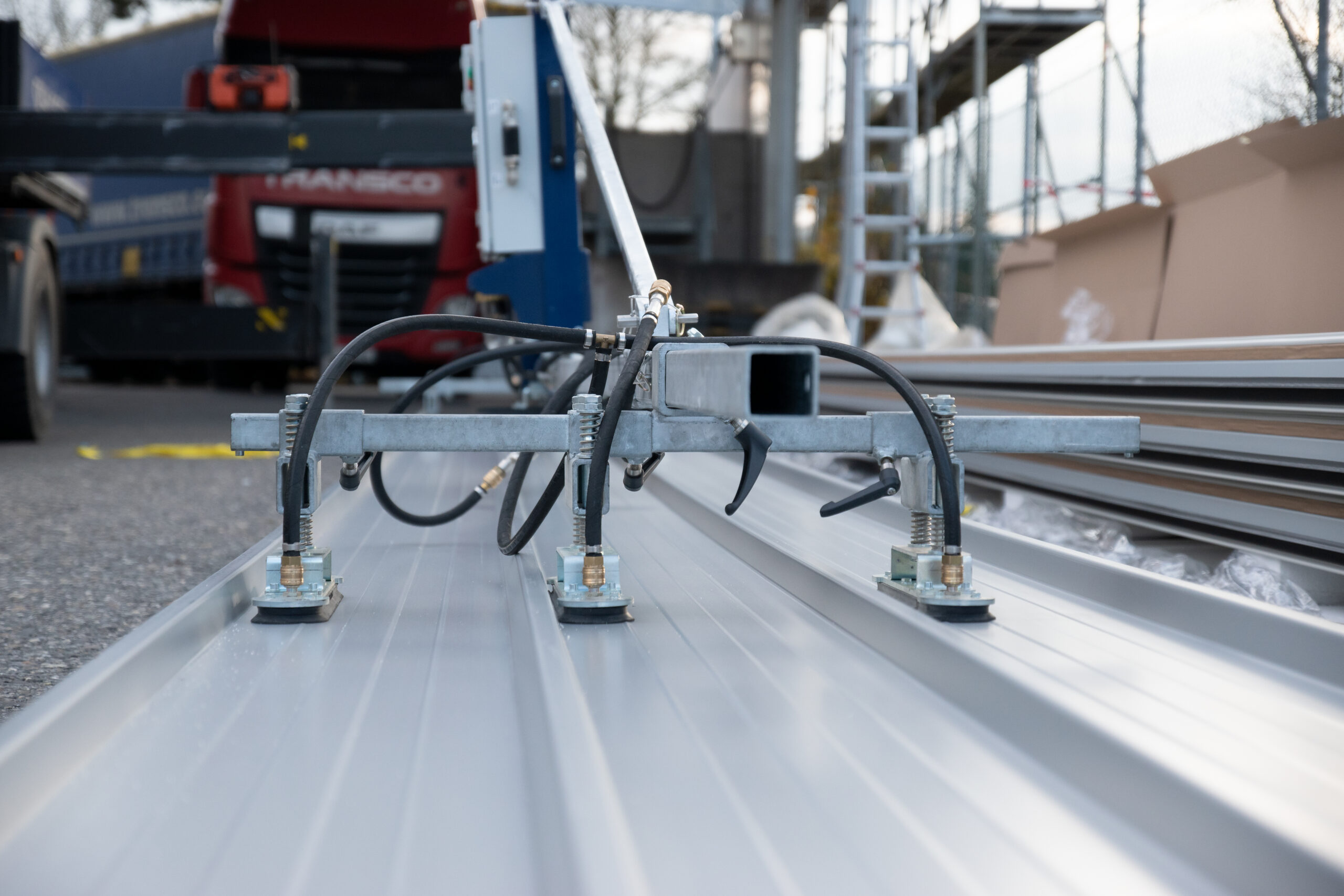

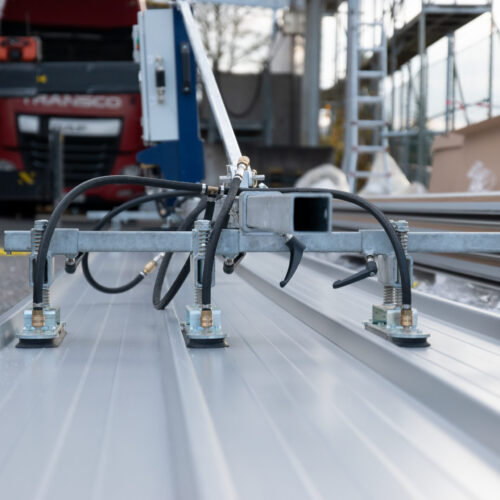

- The suction plates with a special seal provide the necessary holding power to transport goods with confidence.
Other special features

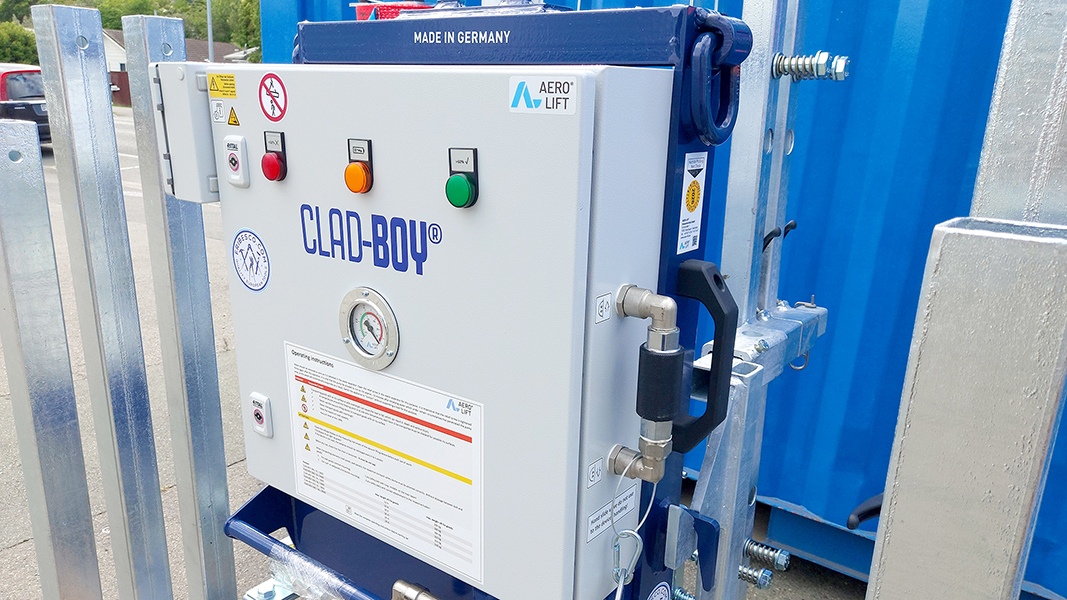

- Battery-powered vacuum generation with long runtimes

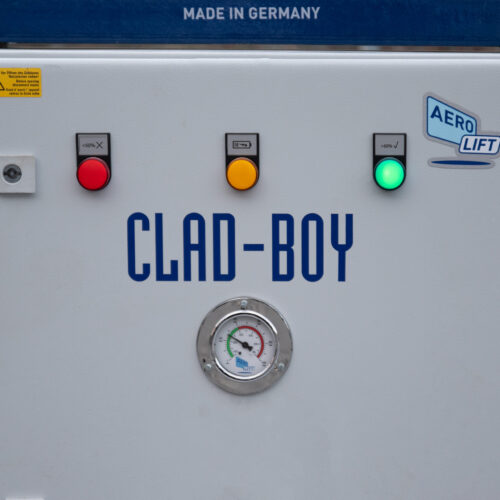

- Automatic power saving through electronic vacuum monitoring

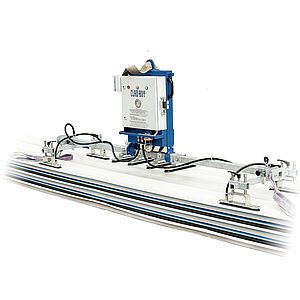

- Extremely robust design of all components for high demands
- Fast and flexible changeover through simple mechanisms

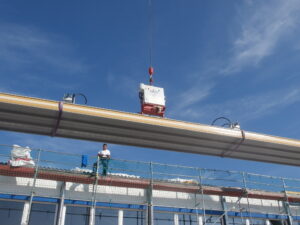

Applications for the CLAD-BOY®
The flexible vacuum lifter for the construction site is ideal for applications such as

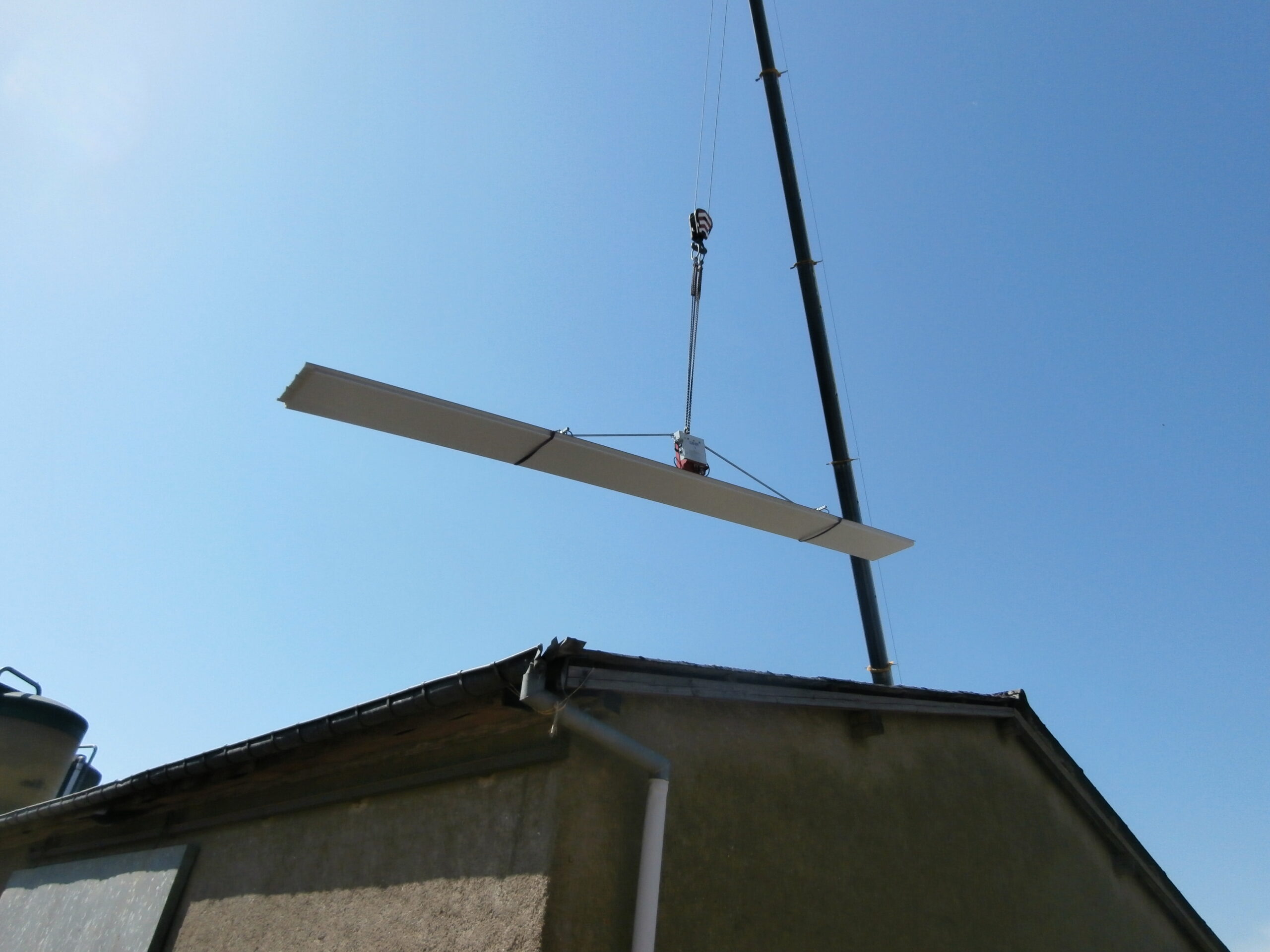

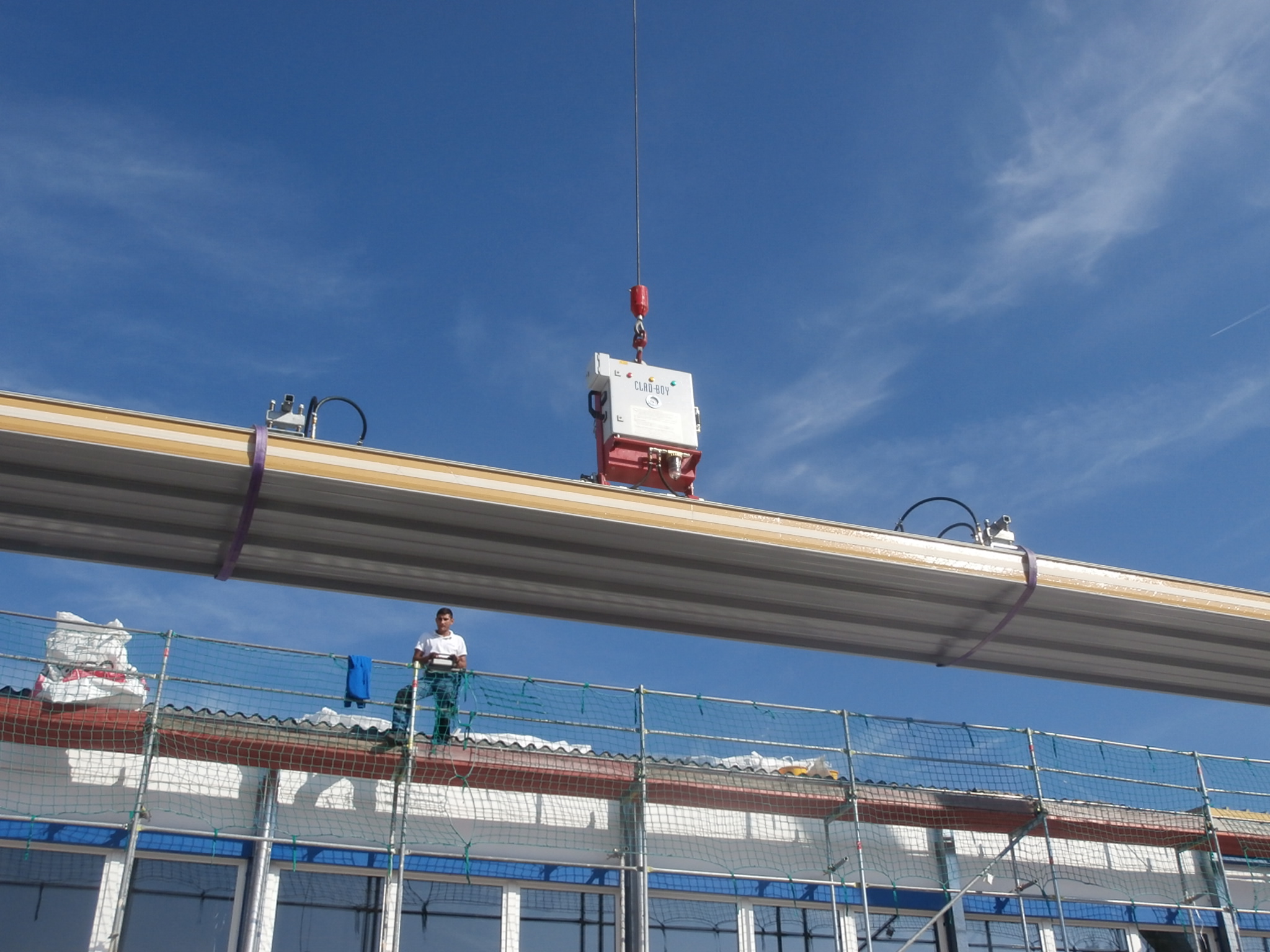

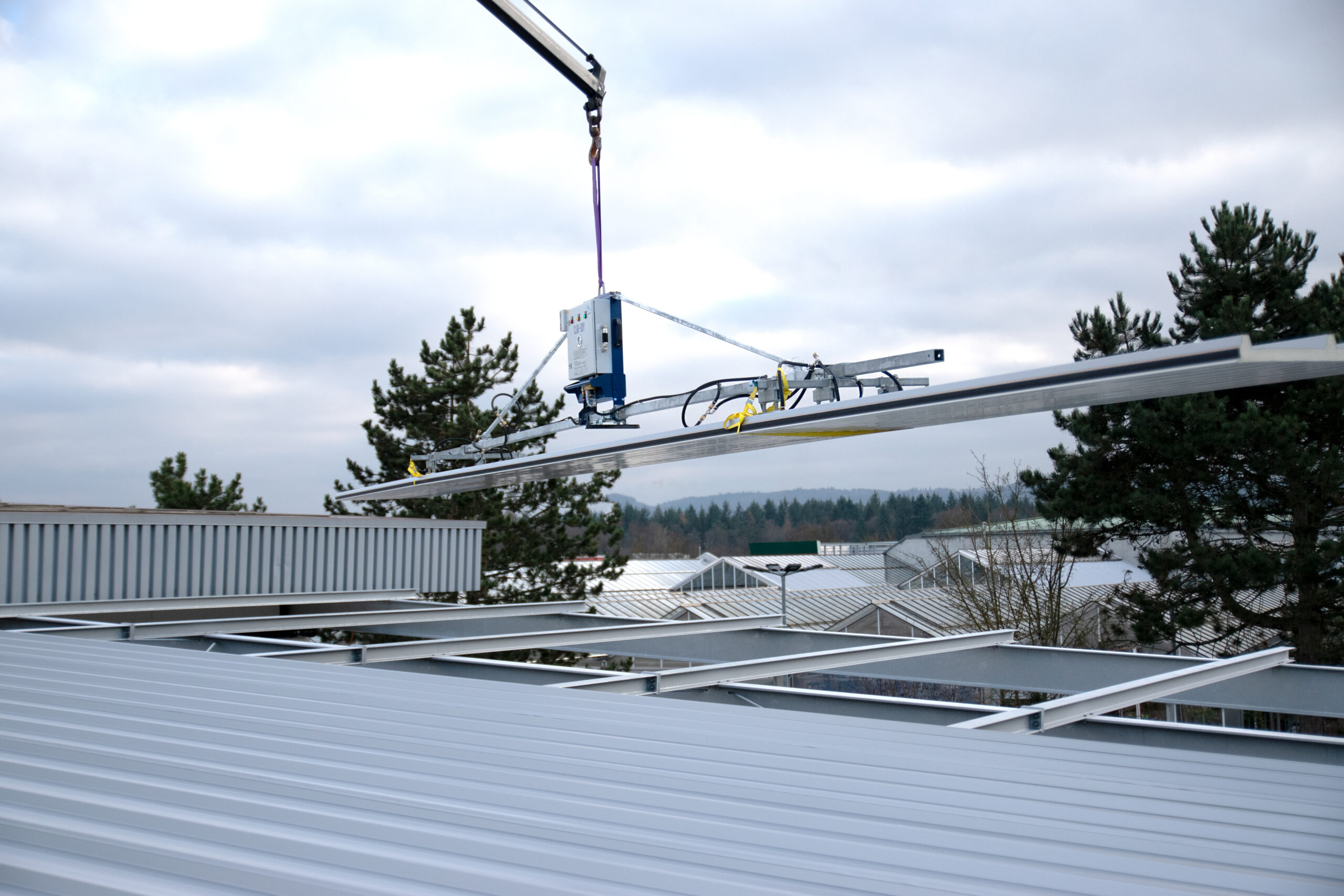

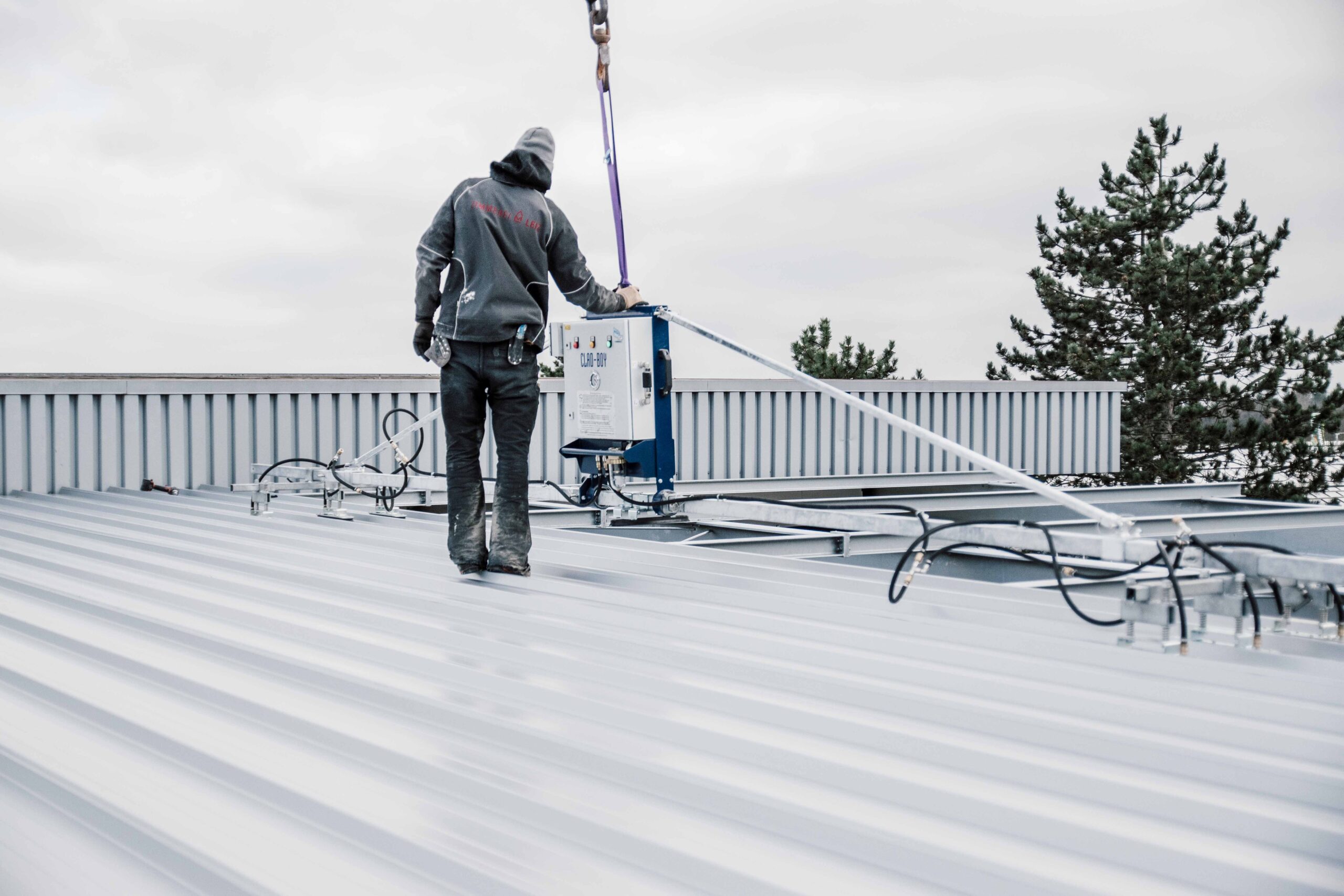

- Assembly of roof panels or trapezoidal sheet metal

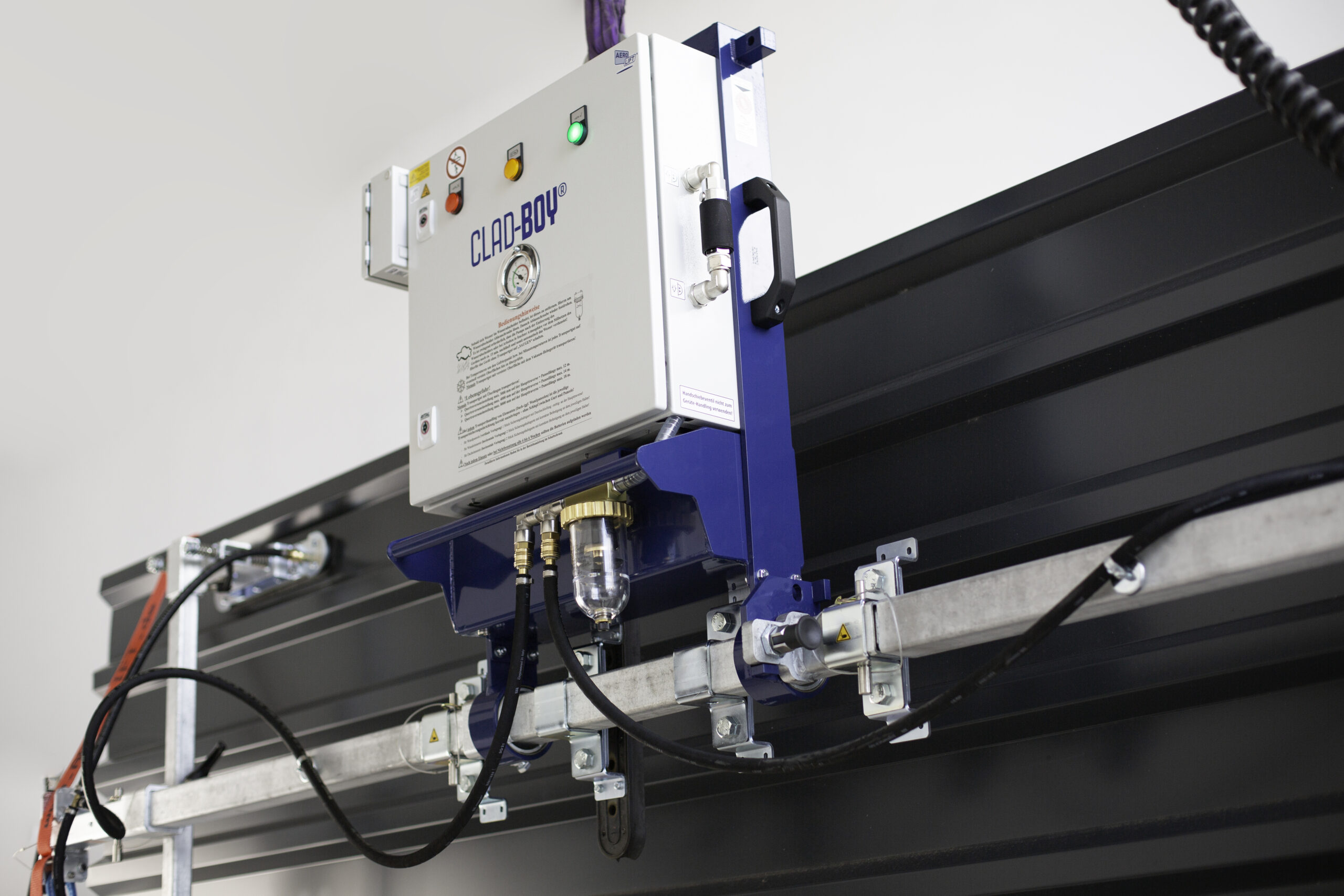

- Assembly of wall panels or facade elements
- Lay horizontally, vertically or diagonally
- Installation of sandwich panels and trapezoidal sheet metal
- Installation of all kinds of different panel materials
- Construction sites with very different laying tasks
- Safe and ergonomic handling of panels

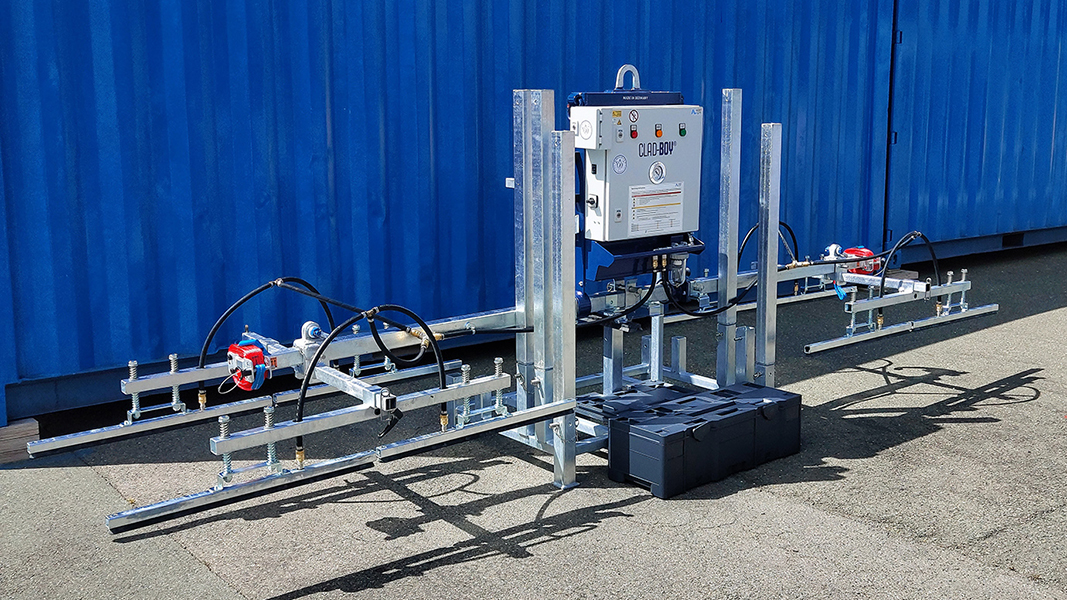

INCLUDED WITH THIS UNIT

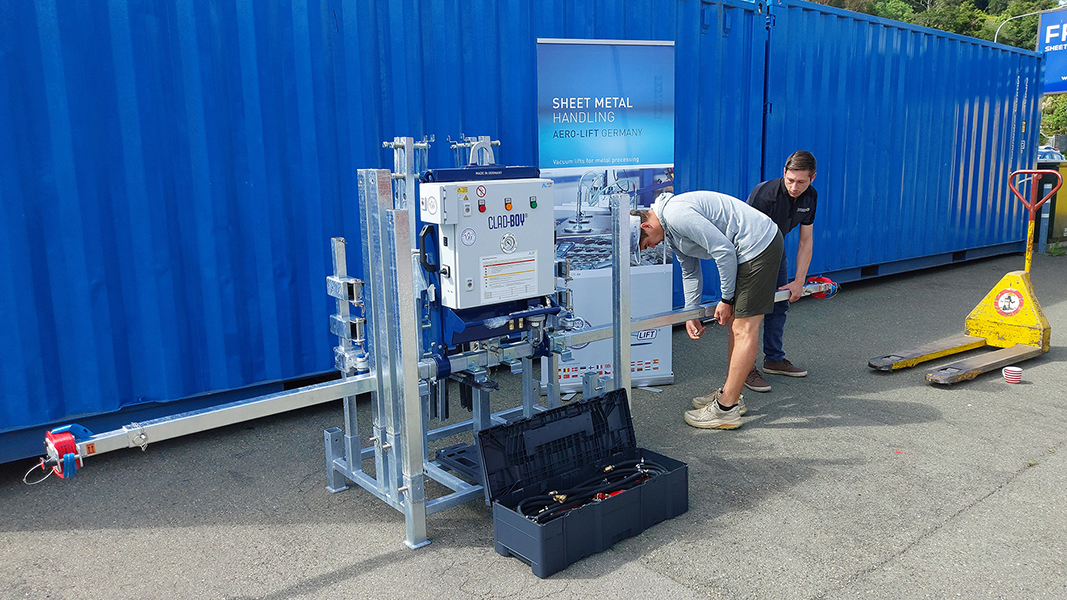

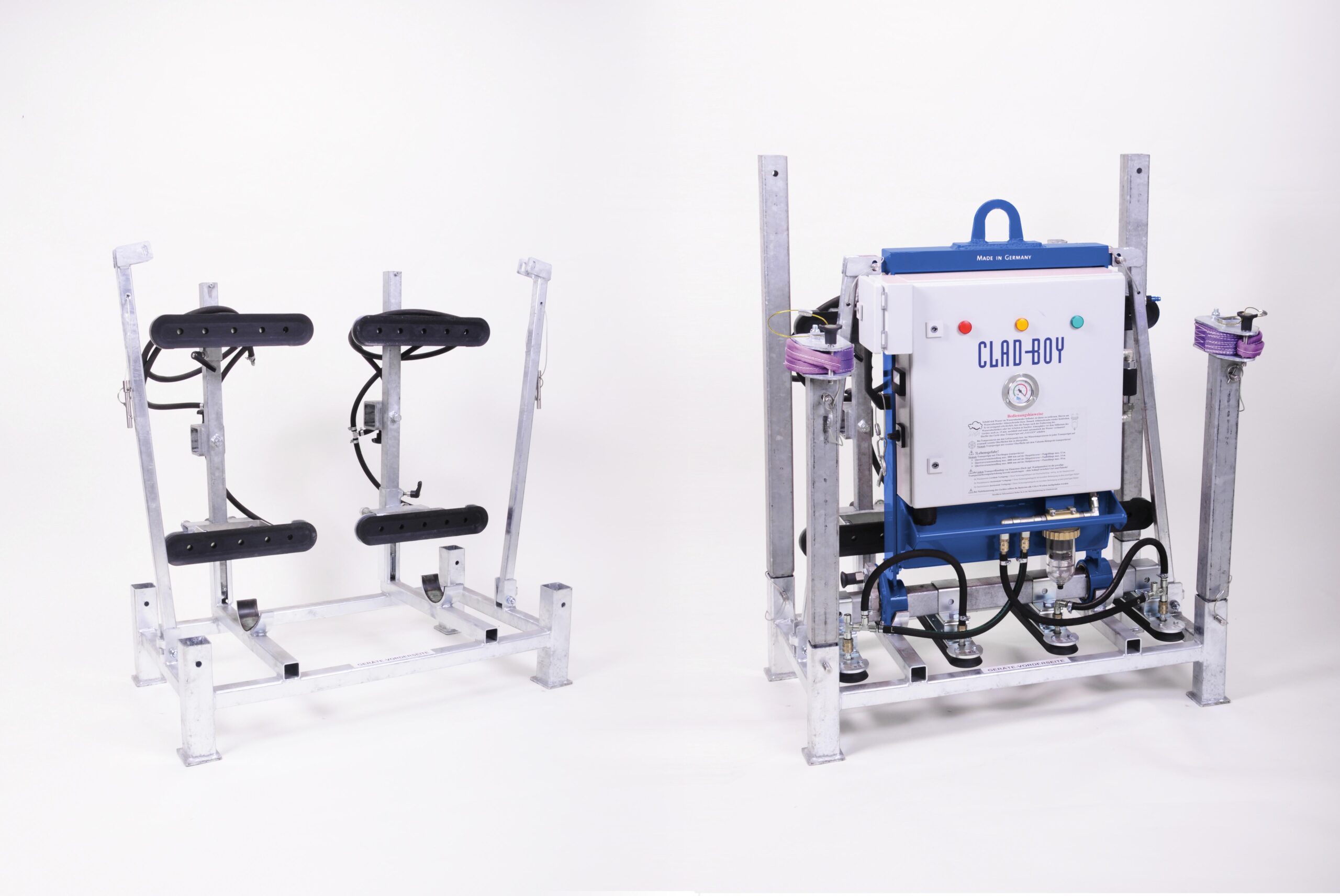

STORE-BOY XL

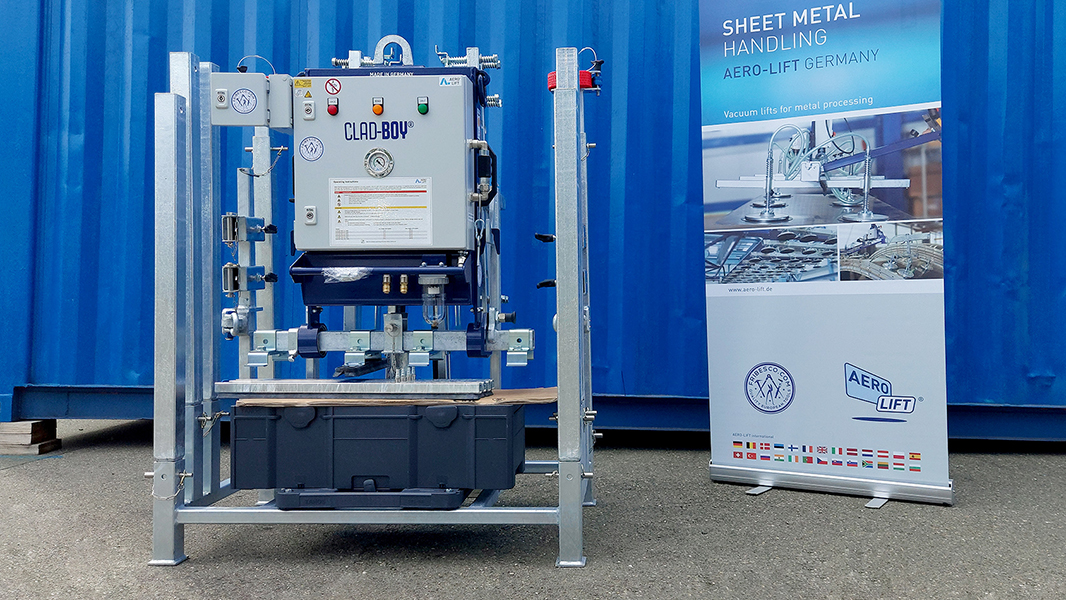

The practical storage rack for the CLAD-BOY® and its attachments, such as suction plates and traverses. Stored safely, the STORE-BOY is also suitable for transport by forklift truck and van.

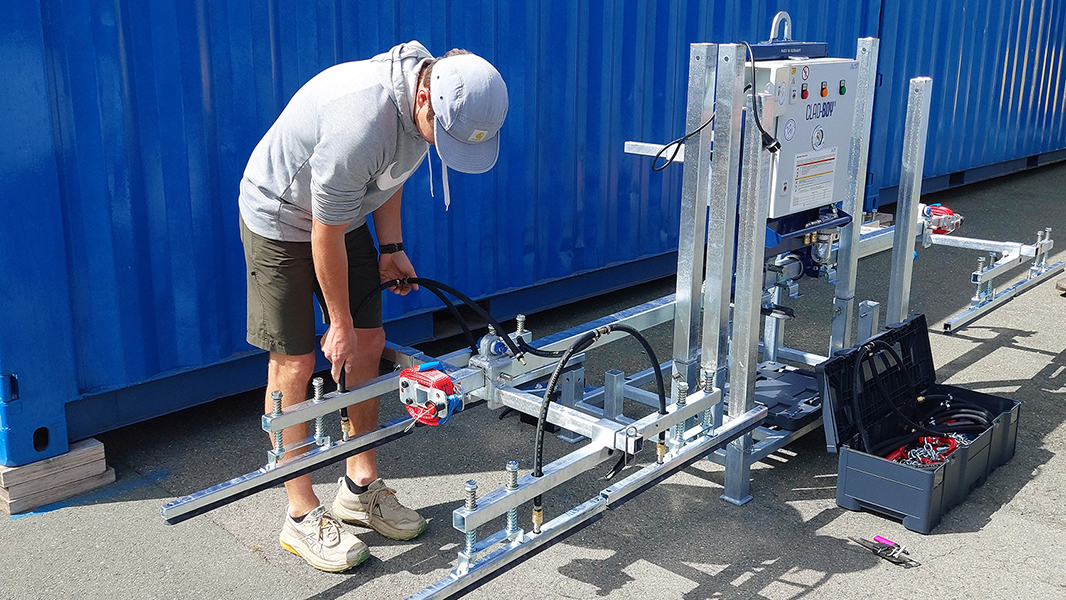

STORE-BOY offers the possibility to build the unit up while it is fixed in the rack before commissioning.

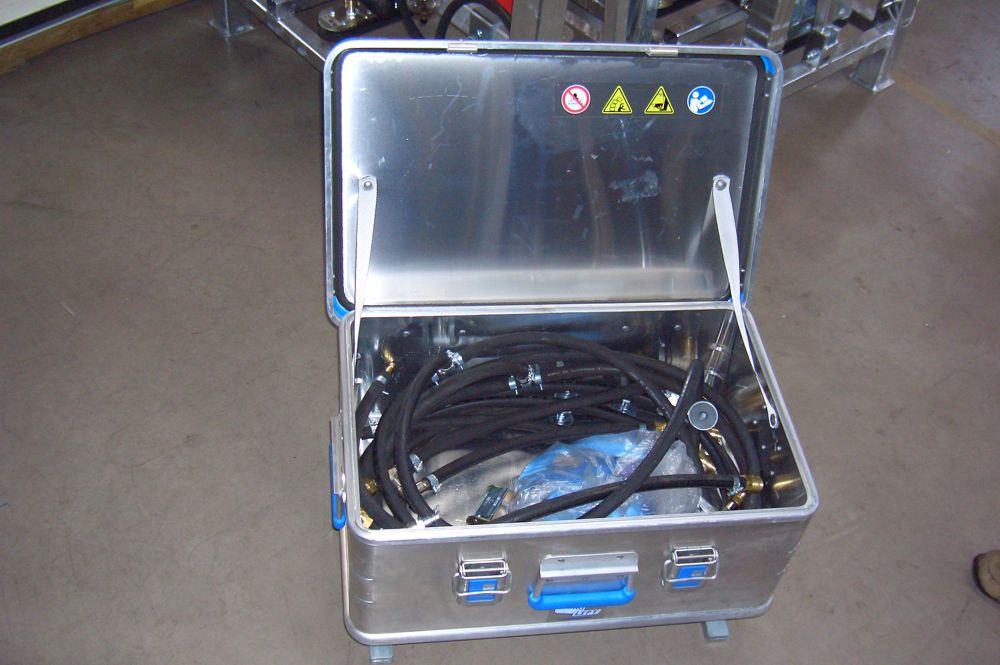

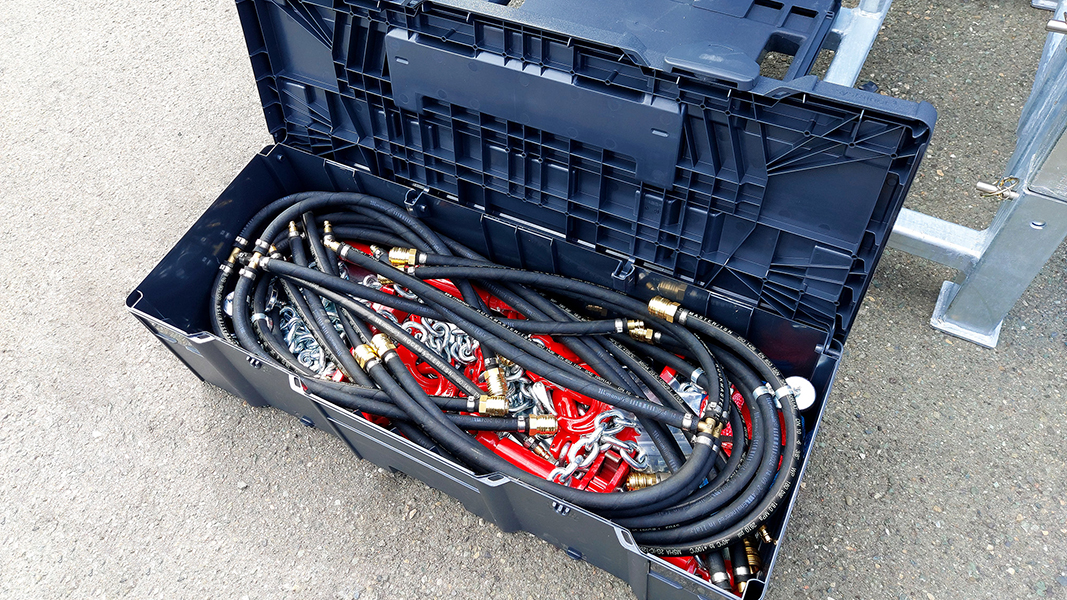

Equipment-Box
The optimal place for all small accessories and attachments such as hoses, safety belts, tools or exchangeable seals for attachment to the STORE-BOY or for separate transport.

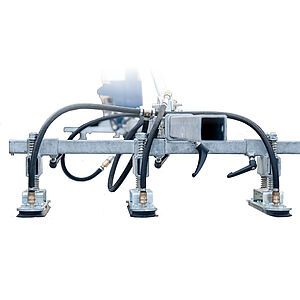

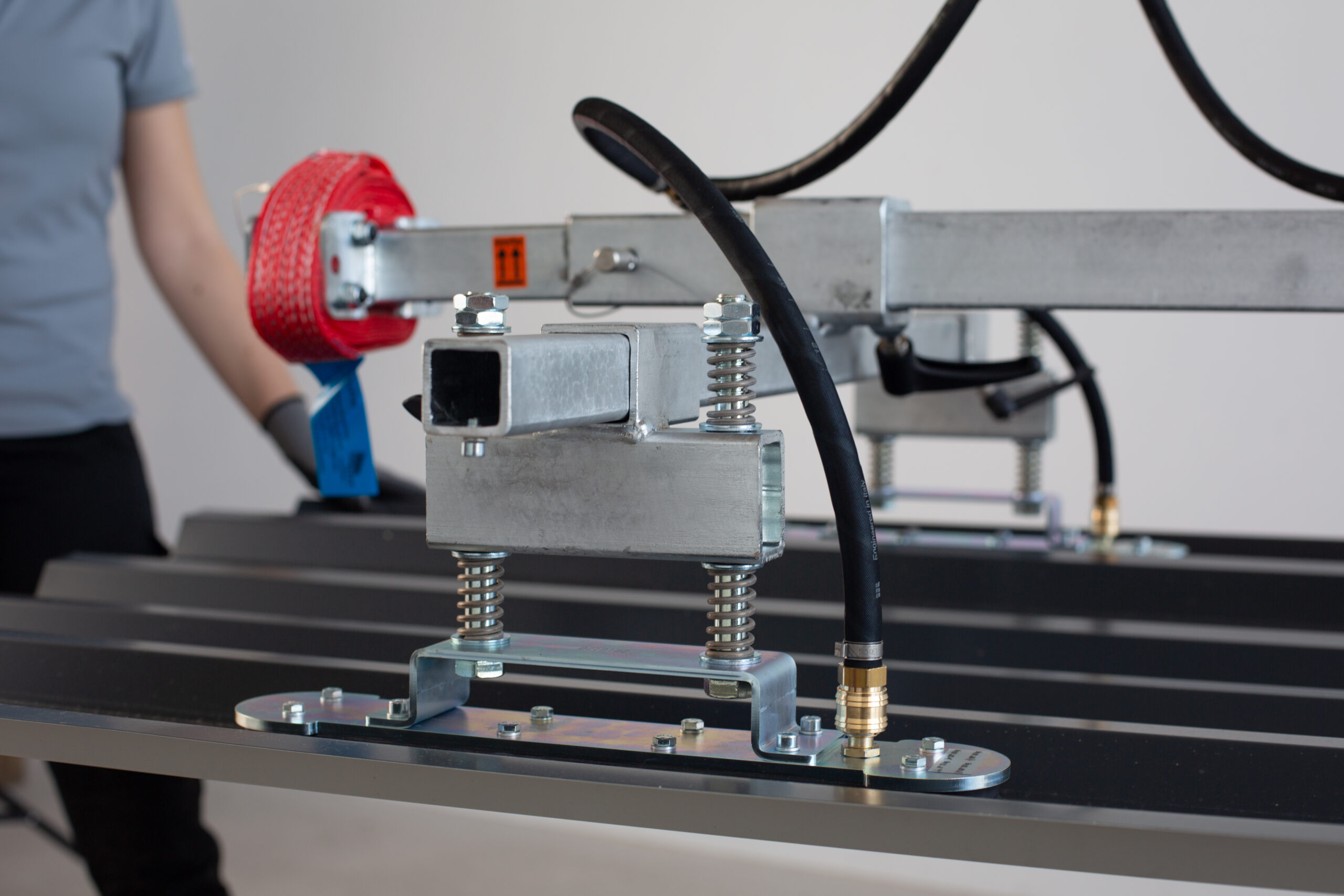

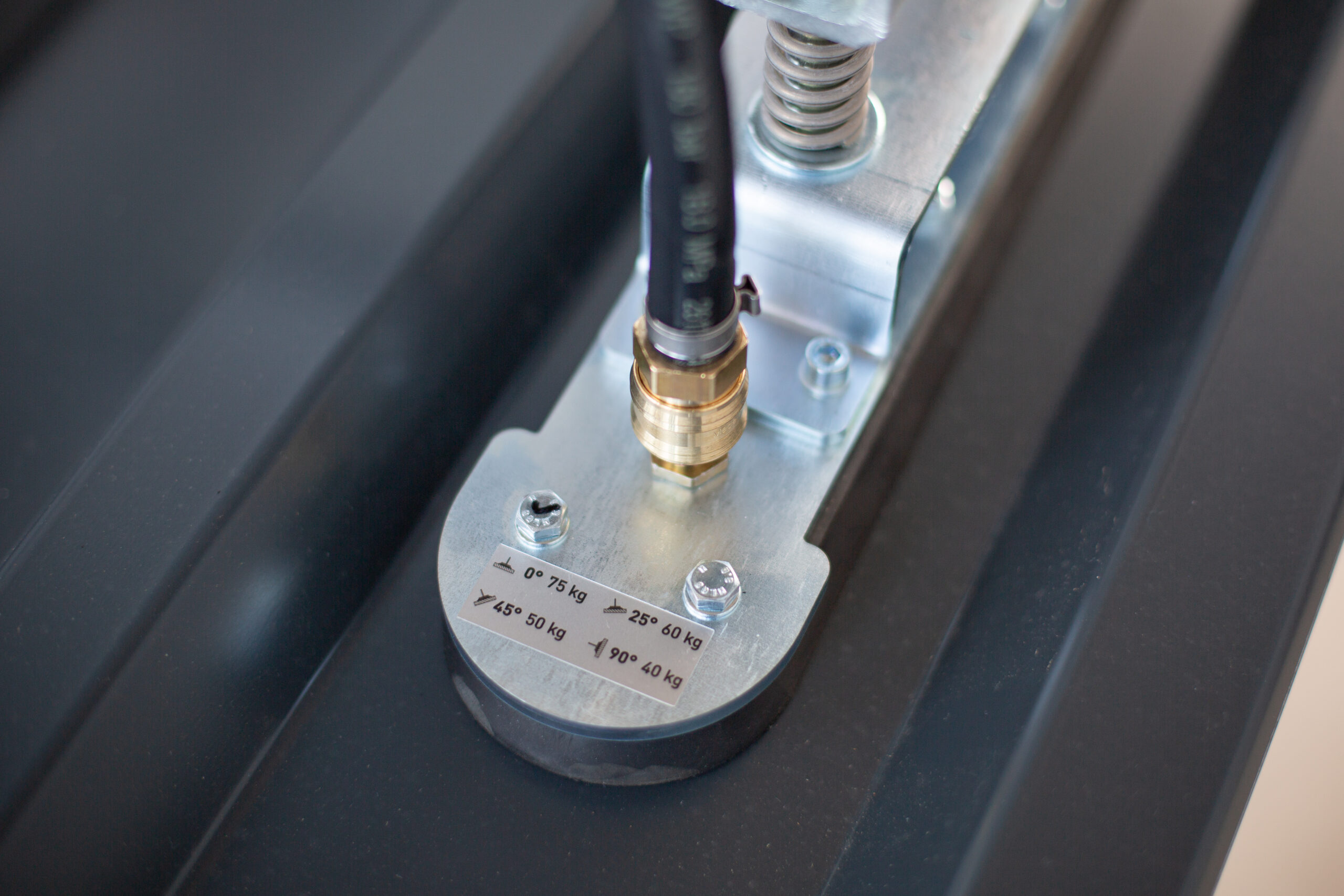

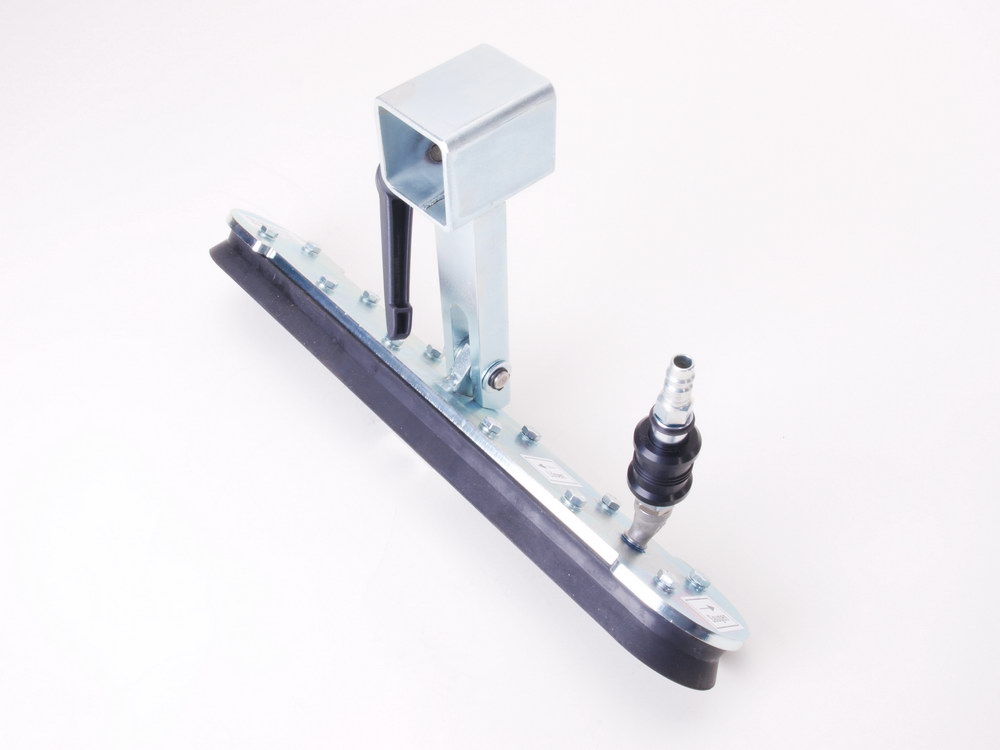

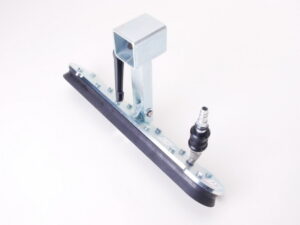

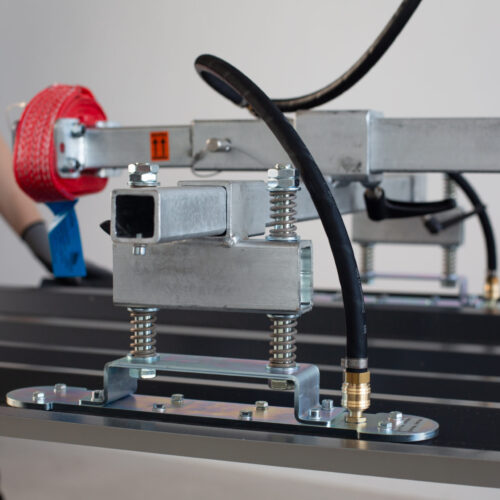

Spring-loaded suction plate holder
By means of spring-loaded suction plate holders, panels can be picked up particularly gently. In addition, the suspension allows an increased immersion depth of an additional 13 cm, which is perfect for high trapezoids.
Operating and assembly instructions manual
Technical data
The CLAD-BOY® works with maximum efficiency and safety and ensures higher customer satisfaction due to undamaged goods in transit. You save time, manpower and annoying rework.
