The V8 punching machine offers automatic, high-performance punching for craft and industrial use, with 180 strokes per minute. It handles steel and aluminium up to 1mm thick.
Details

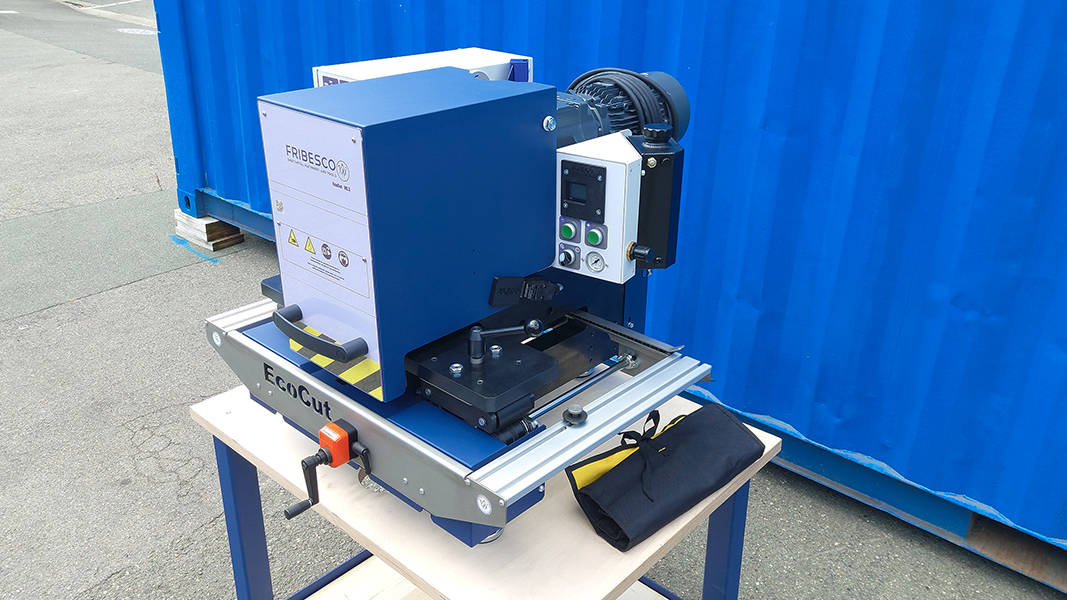

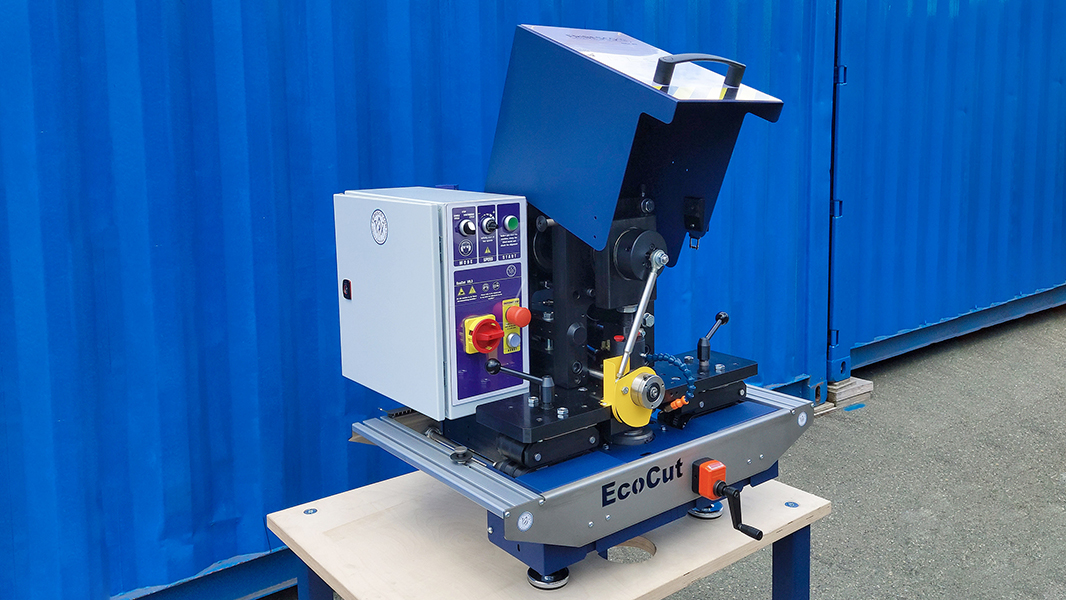

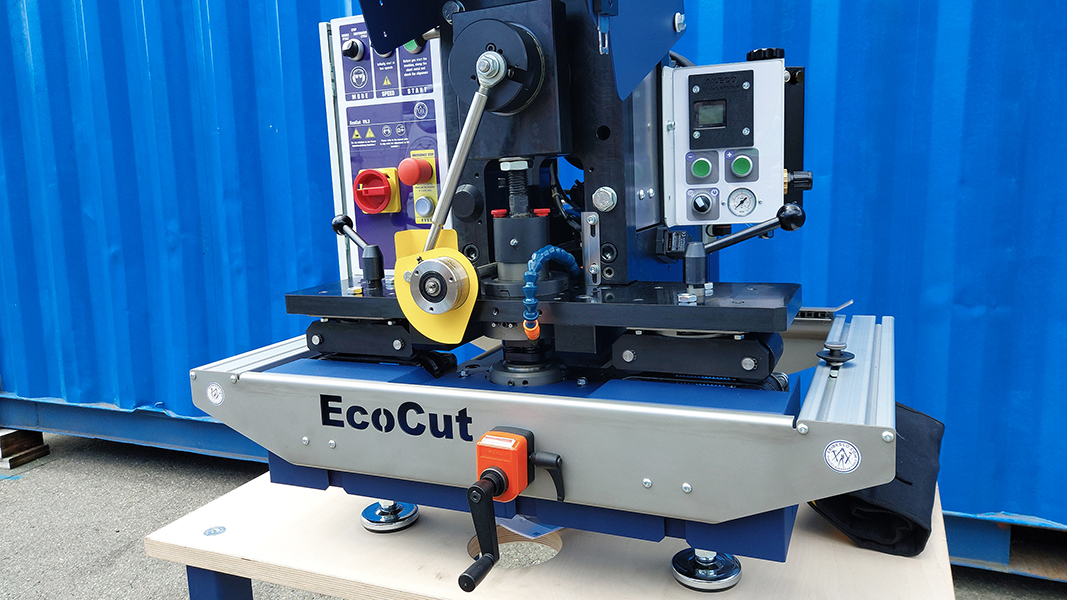

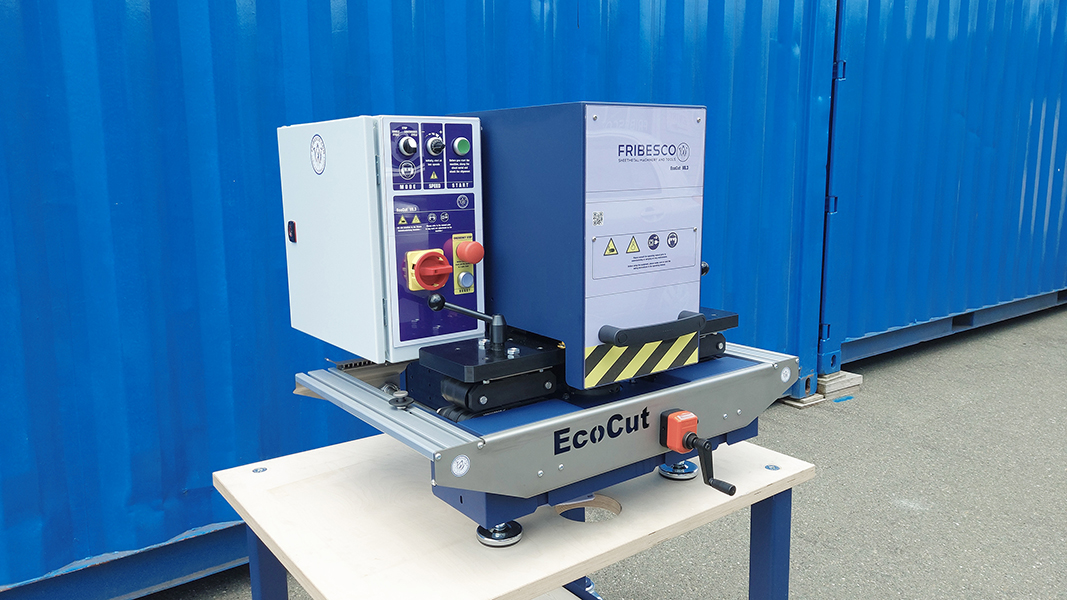

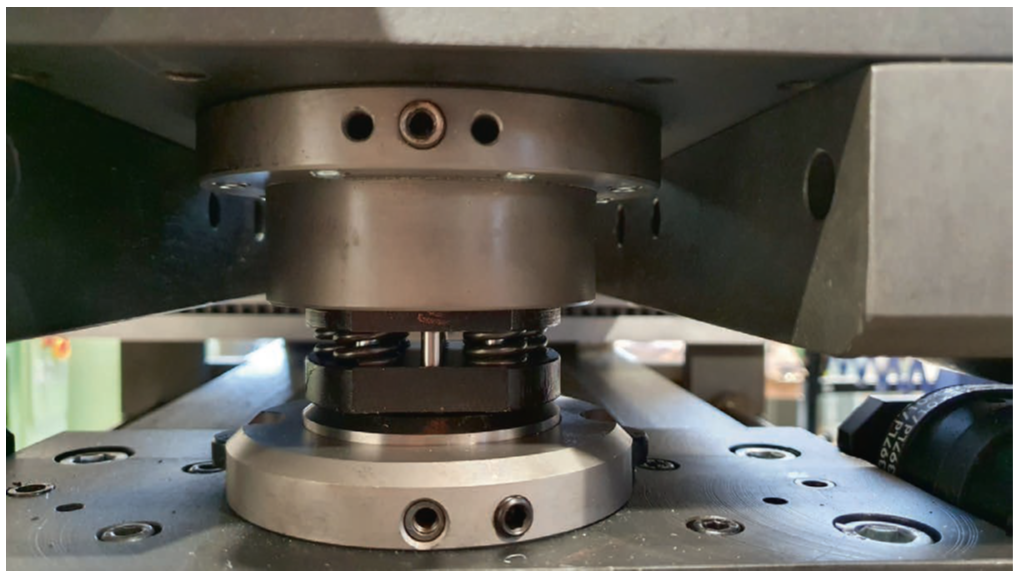

The Fribesco punching machine is a high-speed, compact punching machine for craft and industrial applications. The primary use is creating clean, precise holes (round, square, or custom shapes) in sheet metal for bolts, rivets, or ventilation. It’s a fully automated machine that delivers industrial-level performance and has been developed for numerous applications, whether you’re making vents for electrical cabinets or artistic and decorative metalwork.
TOOLING

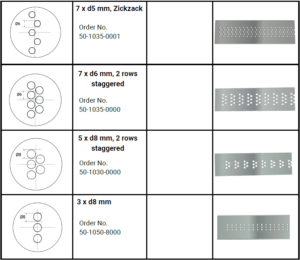

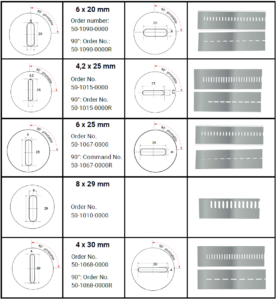

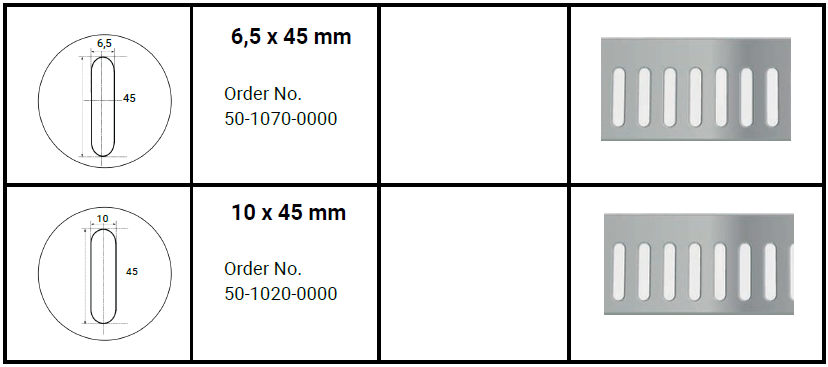

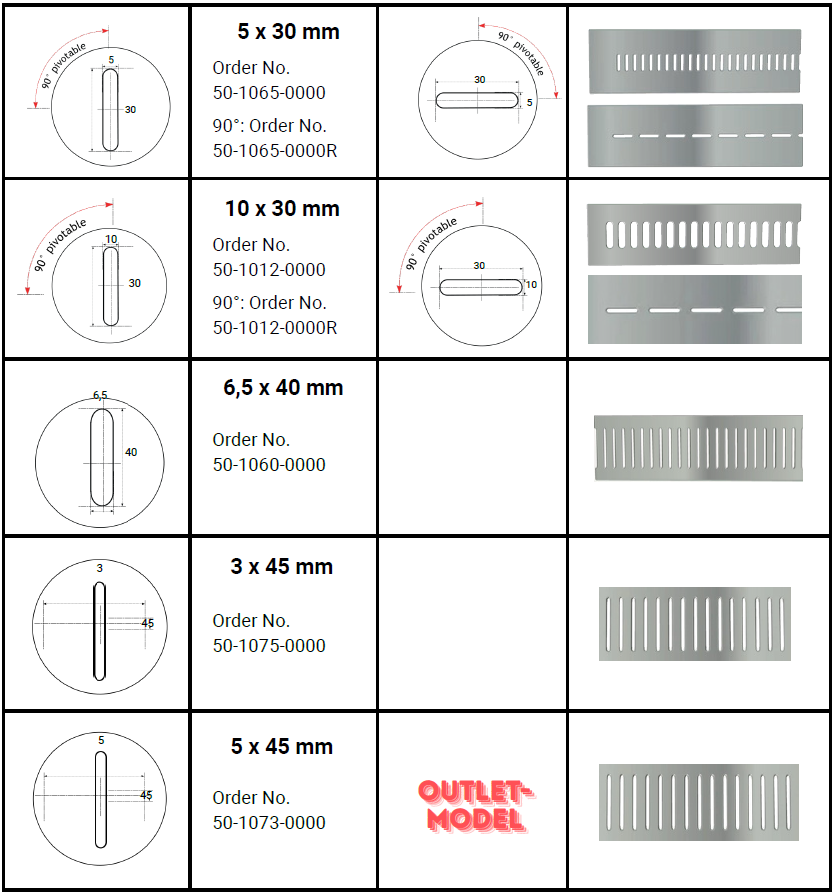

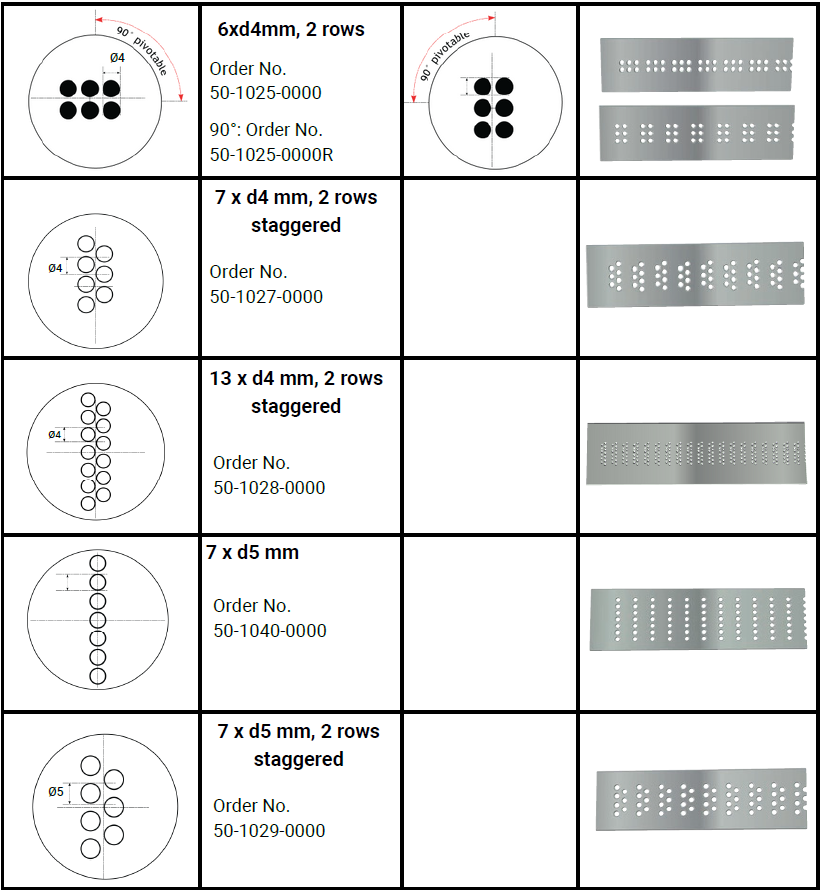

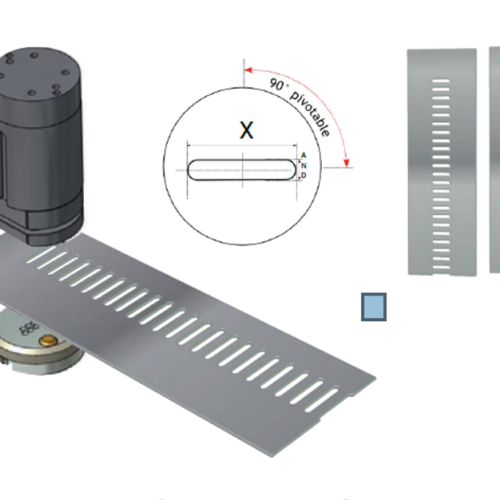

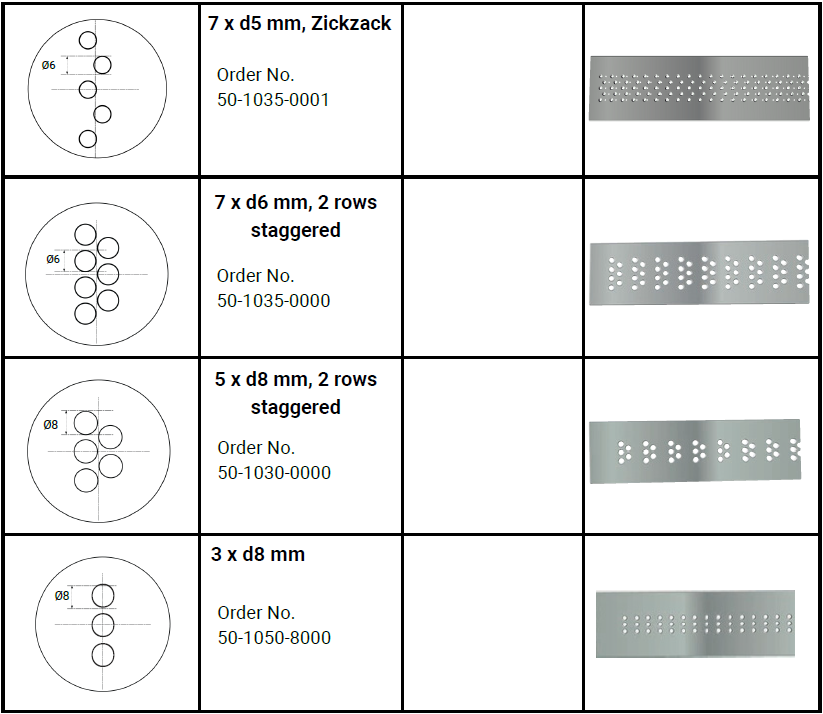

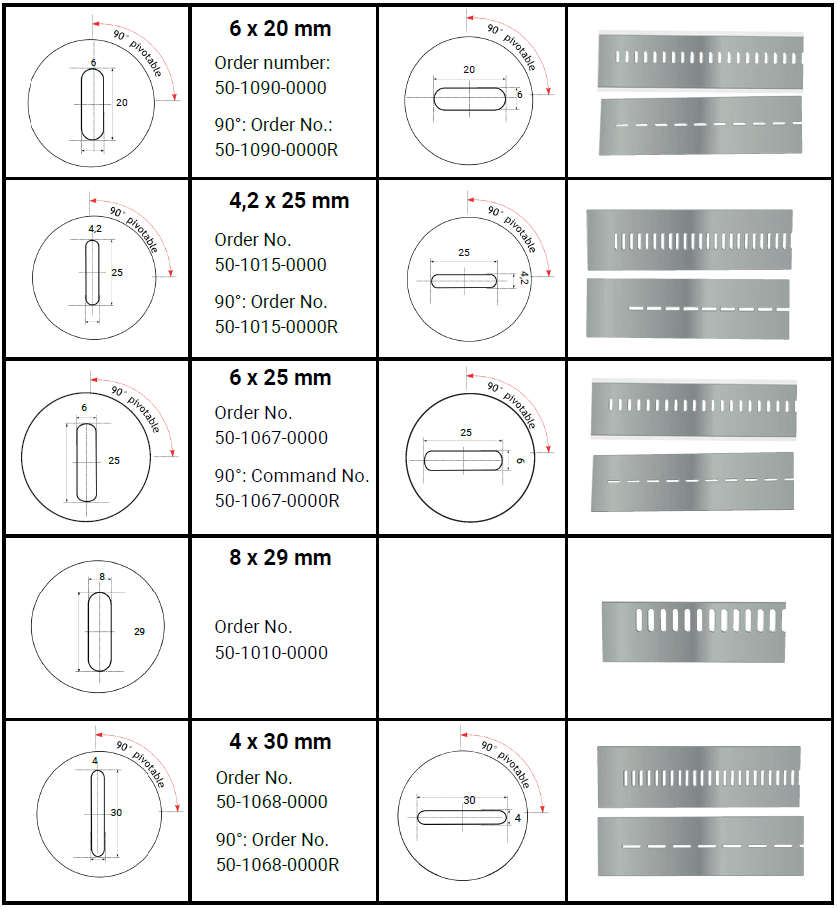

The machine supports a wide range of standard punching tools, including round holes (Ø 4–8 mm) and long holes (3–10 mm x 20–45 mm). Most tools can be rotated up to 90°, allowing multiple punching variants with a single tool set. Custom tools and special punching solutions are also available on request, ensuring maximum flexibility for customers with different applications.
BENEFITS

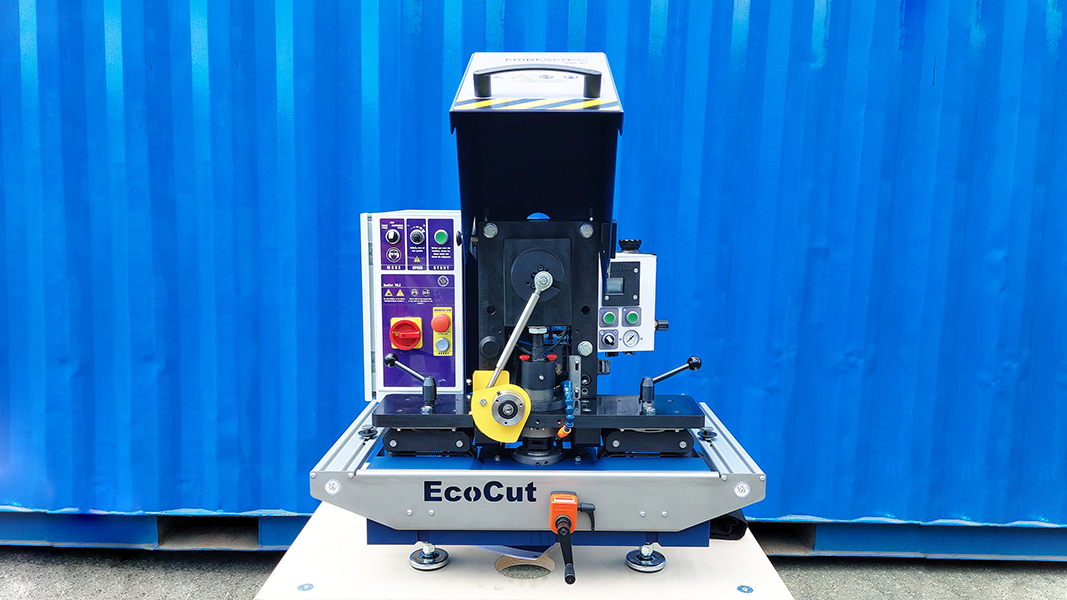

Designed with long-term reliability in mind, the EcoCut V8 features low-wear components, minimal maintenance requirements, and energy-efficient operation. Its quiet running level of 68 dB(A) and compact dimensions make it suitable for both workshop and mobile use.

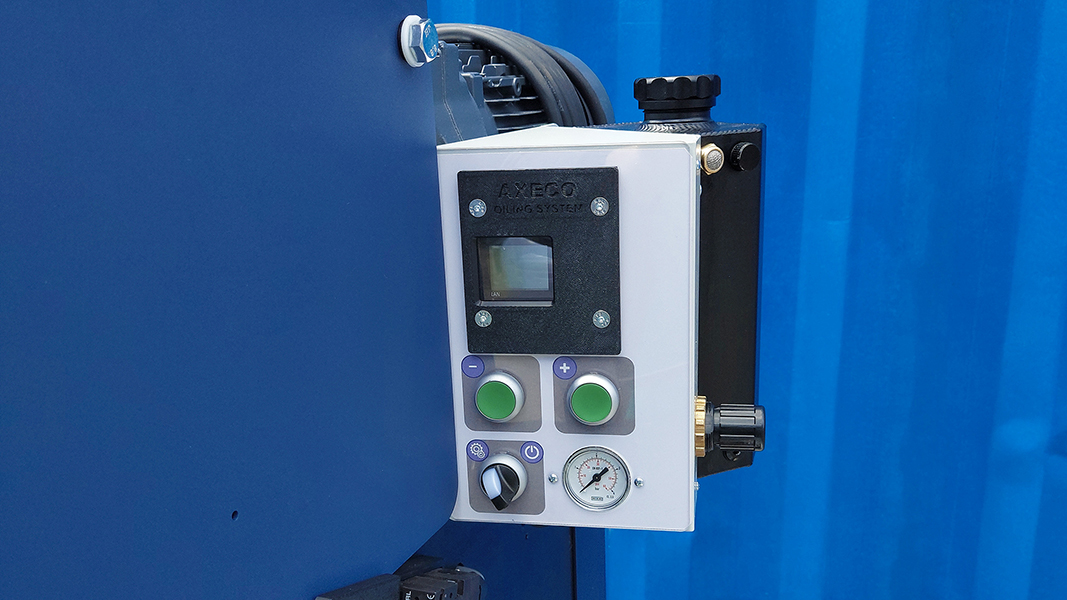

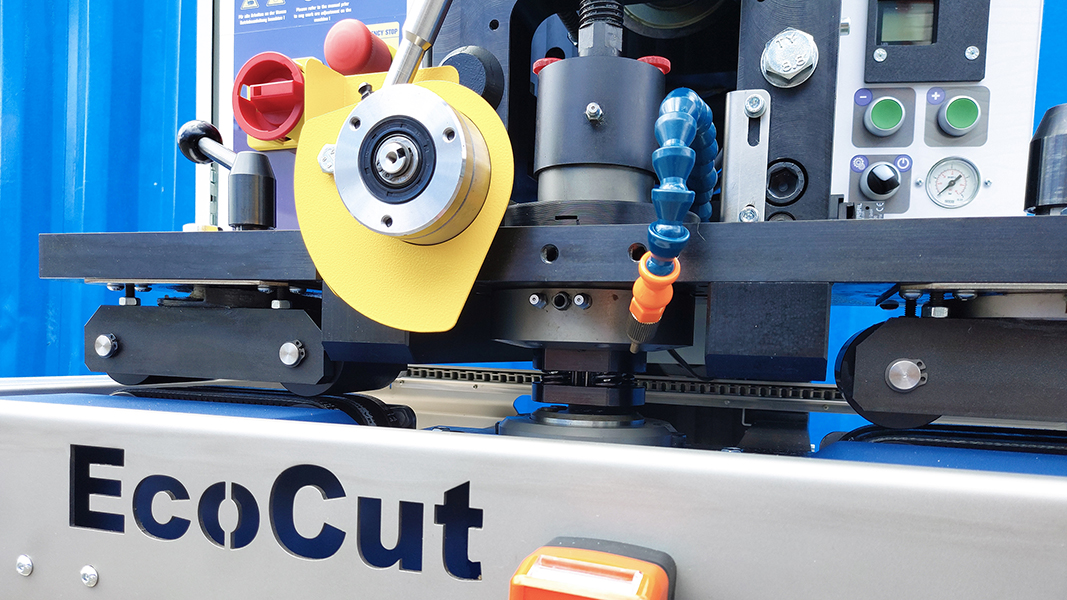

For optimised punching results—especially when working with aluminium—the optional EcoOil lubrication system provides clean, residue-free lubrication with adjustable dosing and intervals. This ensures smooth punching, reduced tool wear, and immediate post-processing without additional cleaning
TECHNICAL INFO
Capacity: 180 strokes per min
Bandwidth min: 50 mm
Bandwidth max: 280 mm (can be added on request)
max. punching distance: 35 mm
max tool diameter: 60 mm
material thickness: 0,75 mm Steel / 1 mm aluminium – Copper
Tension: AC 400V 50/60 Hz
Power: 1,1 KW / 10A
230V Possible on demand

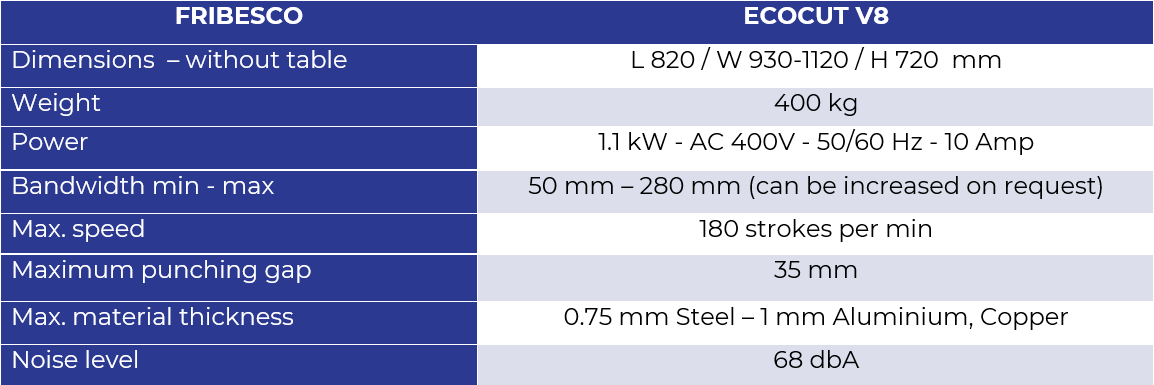

Technical data
